YUZHOU QG-1 Metallographic Specimen Cutting Machine Album

YUZHOU QG-1 metallographic sample cutting machine album, manual cutting with Resin abrasive wheels, with chilling down device, cutting cross section of 50 × 50mm, spindle Rotation speed 2800r/min, suitable for metallographic laboratory sample prepative.

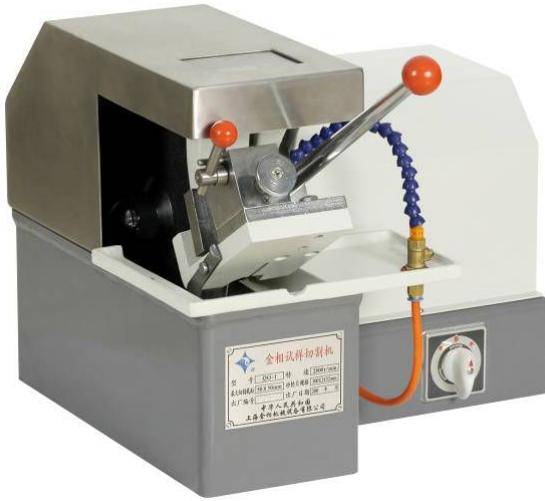

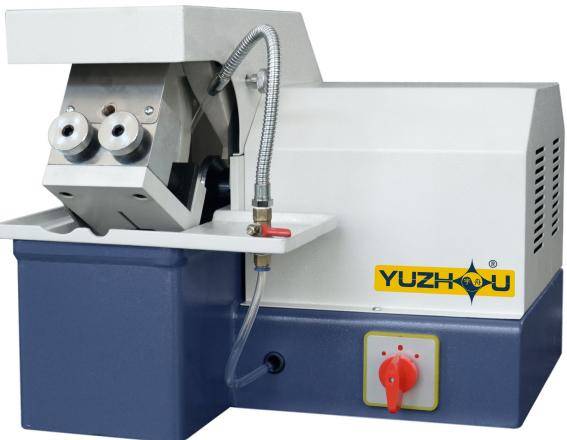

QG-1 metallographic specimen cutting machine

Product Introduction

In the process of metallographic specimen preparation, cutting the specimen material is the first crucial step in specimen preparation. The QG-1 metallographic specimen cutting machine uses a high-speed rotating resin grinding wheel to cut samples. To prevent burning the specimen's structure during cutting, it is equipped with a cooling device that can be cooled by connecting an external water source. This machine is widely used in various metallographic laboratories to cut various metallographic samples, making operation, use, maintenance, and upkeep extremely convenient.

Main parameters

Model	QG-1
Cutting method	Manual, Y-fed
Cutting blade dimensions	Φ300×2×Φ32mm
Maximum cutting cross-section	50×50mm
Spindle speed	2800r/min
Motor power	2.2kW
Cutting fixtures	Threaded clamp or quick clamp with a jaw height of 50mm
Input power	380V, 50Hz, 8A, three-phase four-wire
External dimensions	740×465×390mm
Weight	70kg

Standard configuration

Name	Specifications	Quantity
Main unit	—	1 unit
Cutting pieces	Φ300×2×Φ32mm,树脂砂轮片	2 pieces (one piece is installed on the main unit)
Dumb wrench	46mm	2 pieces
Hex key	8mm	1 handful
Water intake pipe	Φ10mm	1 piece
Water pipe	Φ32mm	1 piece
Manual	—	1 copy
Certificate of Conformity	—	1 copy
