HUXI 2XZ Series, Vacuumpump manual

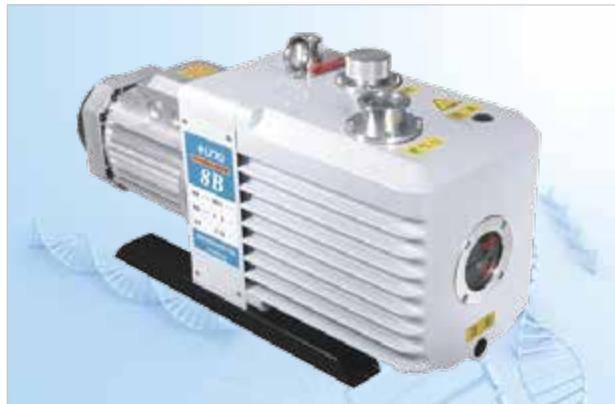

Rotary vane vacuum pump

The rotary vane vacuum pump is a basic device used to remove gases from sealed containers. It can be used alone or as a booster pump, diffusion pump, pre-stage pump for molecular pumps, maintenance pumps, and pre-pumping for titanium pumps. It can be used for vacuum drying, freeze drying, vacuum degassing, vacuum packaging, vacuum adsorption, vacuum forming, coating, food packaging, printing, sputtering, vacuum casting, instrumentation and meter support, refrigerators, air conditioning assembly lines, and laboratory vacuum operations and supporting applications.

Product features

• Thanks to thorough low-noise design and precise machining, noise reduction is achieved.

• Specially designed gas ballast valves are equipped to prevent oil mixing and extend the service life of the pump.

• Designed with international similar products, compact size, light weight, low noise, and easy to start.

• Equipped with vacuum drying ovens, freeze dryers, and printing machinery.

• Compatible with small-diameter adapters, KF interfaces, and flange connectors.

Technical specifications

- B Series rotary vane vacuum pump

This pump is suitable for extracting air and other general gases. The advantage of using a forced oil pump inlet device allows continuous operation even at an inlet pressure ≤ 1.33×10³. It can be used independently, but also as a pre-pumping pump for booster pumps, diffusion pumps, molecular pumps, maintenance pumps, and pre-pumping pumps for titanium pumps. It is widely applicable for vacuum metallurgy, vacuum coating, vacuum drying, freeze drying, vacuum degassing, vacuum packaging, vacuum adsorption, vacuum forming, food packaging, printing, sputtering, photovoltaics, aerospace technology, chemical engineering, electronics, refrigerators, air conditioning assembly line features, laboratory vacuum operations, and supporting applications.

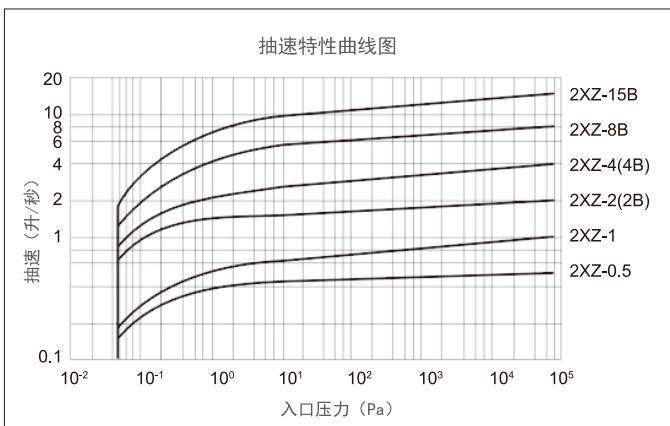

Pumping rate curve

Product features

• Specially designed gas ballast valves are installed to prevent oil mixing and extend the service life of the pump.

• High pumping efficiency, high ultimate vacuum, and long service life;

• Equipped with an automatic anti-oil backflow check valve to prevent oil backflow;

• The small-diameter 2XZ-2B vacuum pump is specially equipped with vacuum drying ovens, freeze dryers, printing machinery, coating machines, glove boxes, refrigerator assembly lines, lighting, and more;

• Compatible with small-diameter conversion connectors, KF interfaces, and flange connectors;

• When suctioning vapors, particulates, or corrosive gases, auxiliary equipment such as condensers and dust collectors must be installed at the pump's inlet.

Technical specifications

Oil mist filter

The exhaust gas produced by rotary vane vacuum pumps contains oil mist during use, which can affect the factory and surrounding environment. Oil mist filters ensure emissions meet environmental standards, accelerate oil return, save fuel consumption, improve pump performance, extend pump lifespan, and reduce production risks.

KF25 flange adapter

Material: Stainless steel

Rubber tubes

Vacuum rubber tubing is mainly suitable for vacuum pump equipment.

Pre-filter

Mainly used to filter gases in vacuum pumps and small amounts of hard-to-filter dust impurities, ensuring that the discharged gas contains no oil mist or odor, reducing the risk of premature filter failure.

Vacuum pump oil

Vacuum pump oil is a lubricating oil specially developed for vacuum pumps in vacuum equipment, providing lubrication, sealing, and heat dissipation functions.
