China TBJ Series, Lab Film Applicator Lab Film Applicator Album

China TBJ Series Laboratory Film Applicator album, introducing the characteristics of constant speed and constant pressure automatic Spreader and High Accuracy film, suitable for lithium batteries, inks and other samples, providing bar, drawdown blade, heating, Vacuum chuck and other free combination configurations to meet the needs of scientific research and industrial experiments.

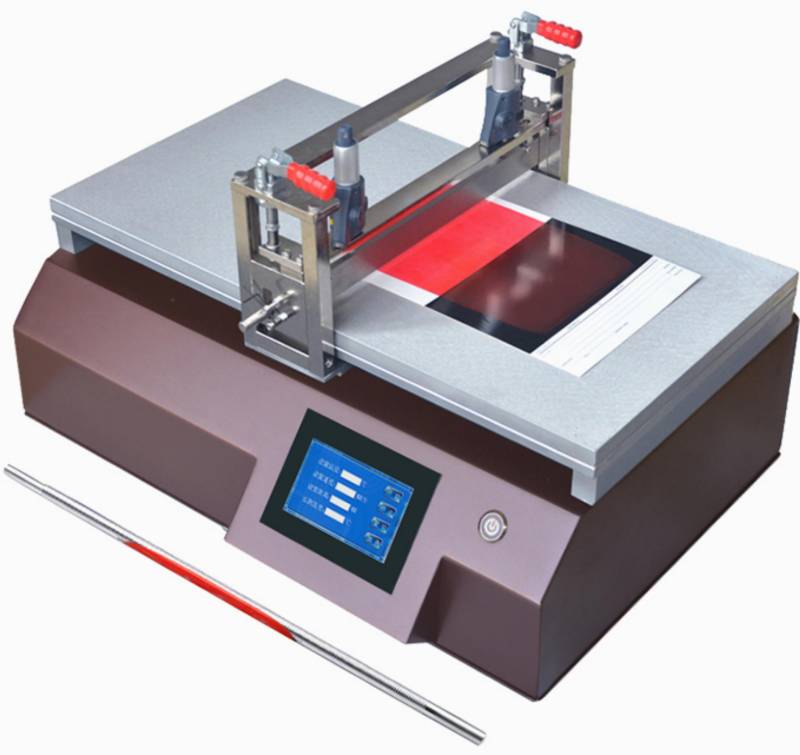

Laboratory automatic coating machine

Constant speed and pressure / automatic coating / high-precision coating

Six major service advantages

Why choose a professional coating solution?

Sample testing / on-site machine trial

Equipped with high-precision imported wire rods

Specializing in coating films for many years

Specializing in coating films for over 10 years

Hundreds of users endorse their quality

Customized industry solutions

Standard warranty and after-sales service

Standard warranty + after-sales e-Netcom

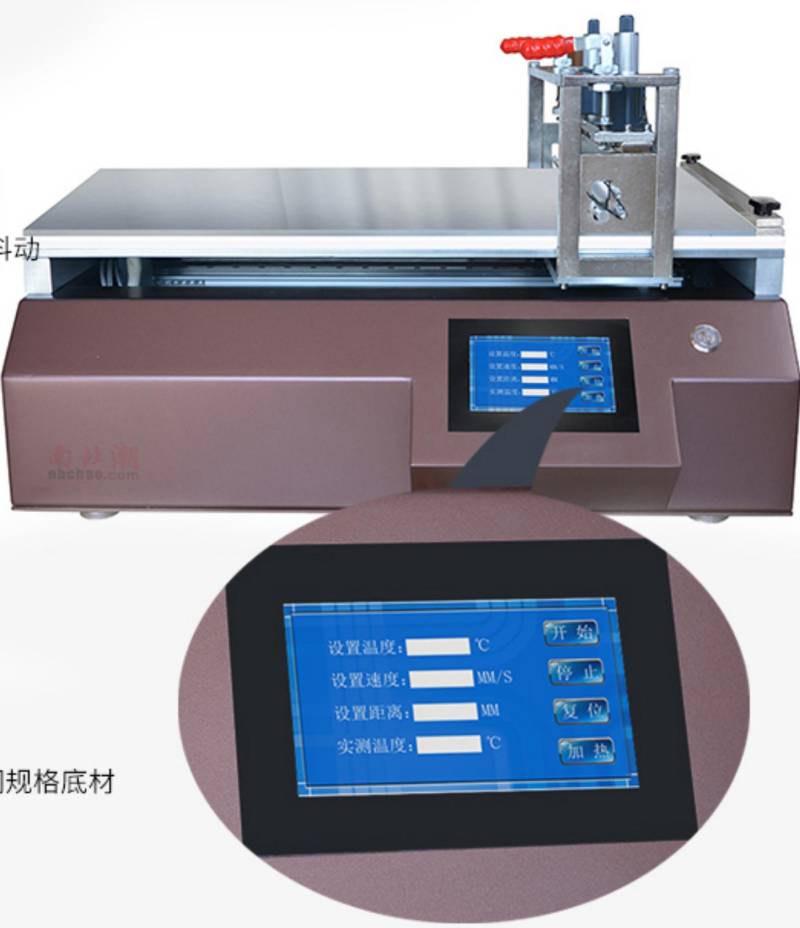

Product Features and Advantages

Professional structural design and high-quality components improve the smooth operation of the coating machine and ensure the effectiveness of coating sampling, providing high-precision test results for raw material rheological performance, wear resistance, and covering power.

▸ High-precision coating machine – paired with imported wire rods

▸ Silent, vibration-free motor

▸ Touchscreen operation control

▸ Aluminum alloy/glass base plate

▸ Stepless speed regulation

▸ Coating length can be set arbitrarily, 1~400mm

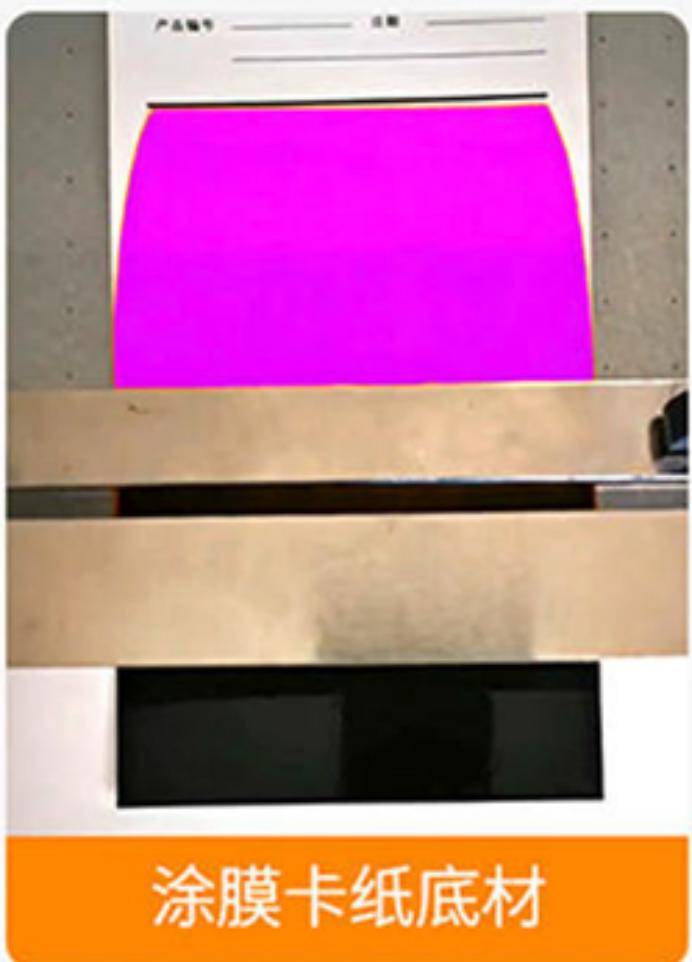

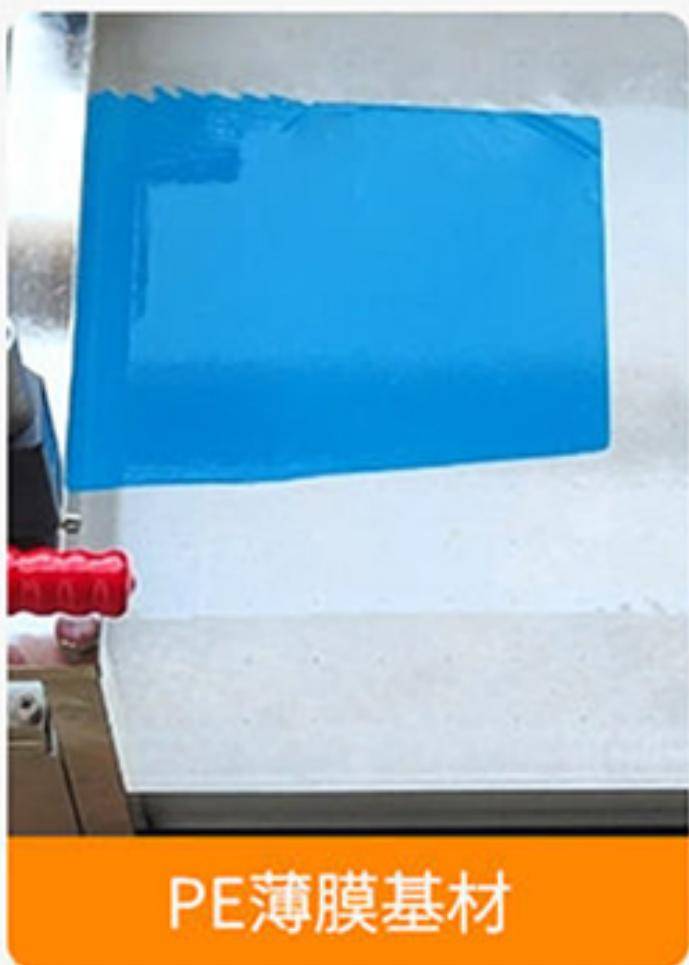

Suitable for different sample coating films

Suitable for sample samples from industries such as lithium batteries, glues, silicone oil, UV products, inks, polymer materials, photoresists, barb agents, hot melt adhesives, gels, plasters, crystals, ceramics, slurries, pharmaceuticals, and other industries for experimental coatings.

Coating substrate

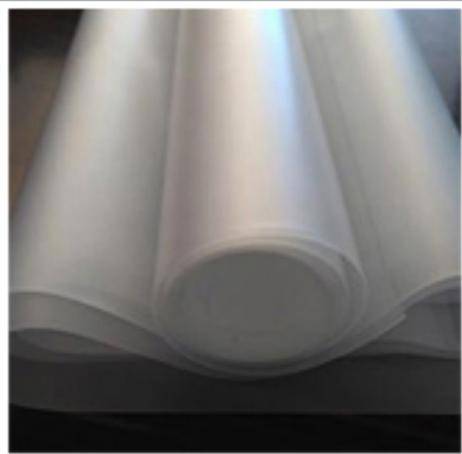

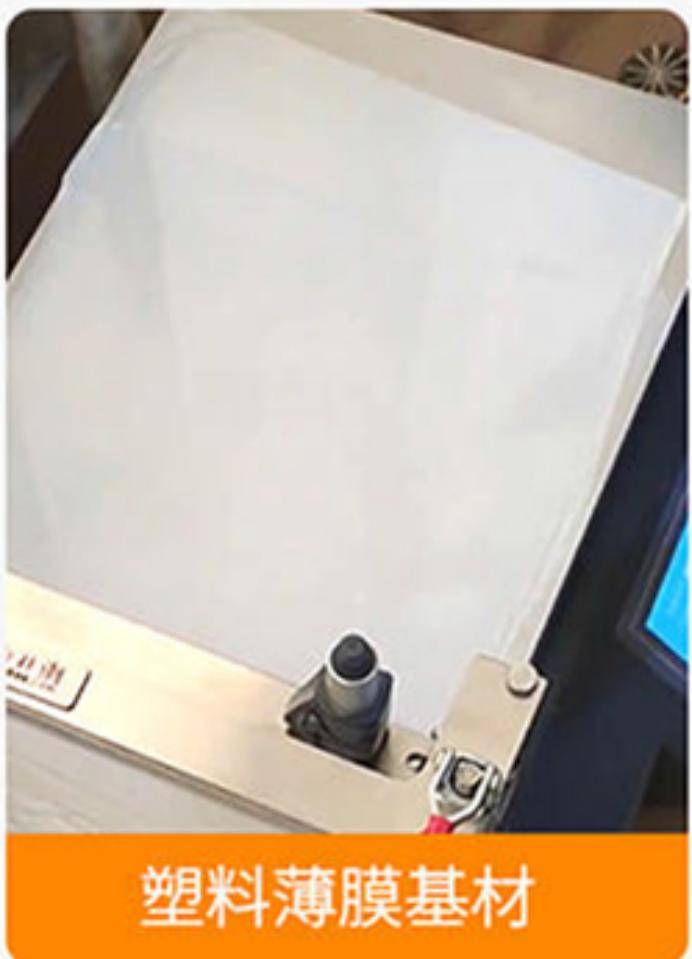

PVC film

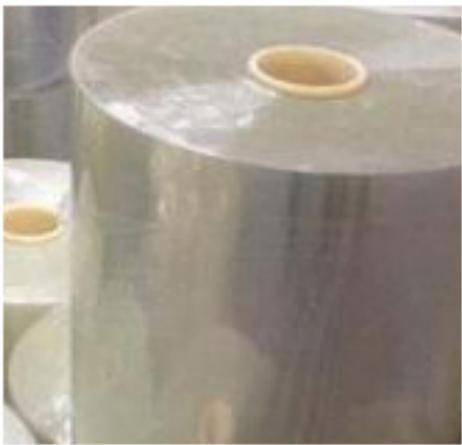

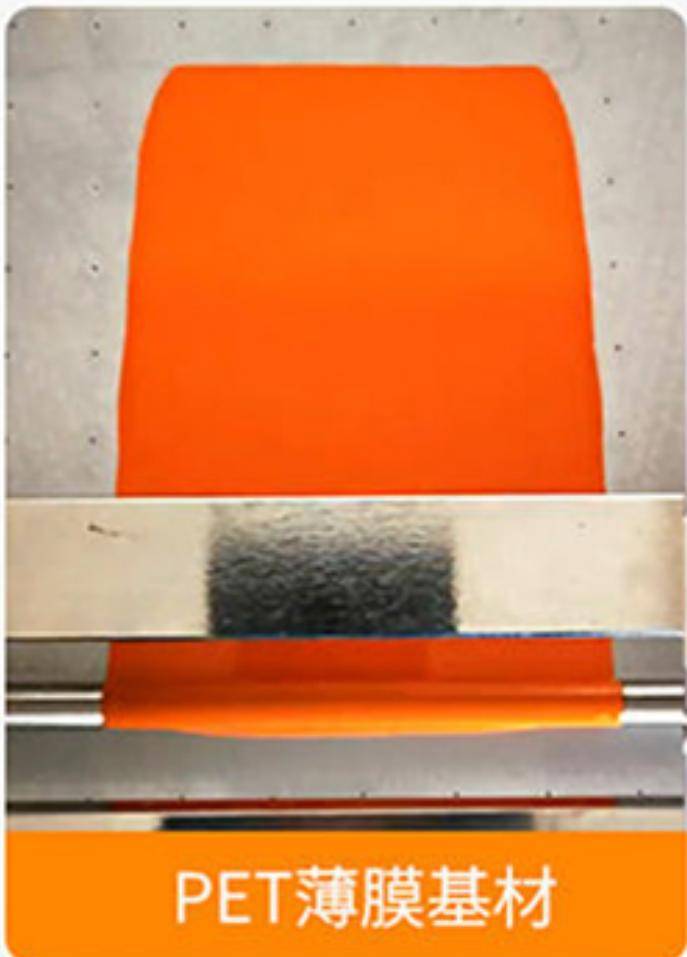

PET film

Paper

Fabric

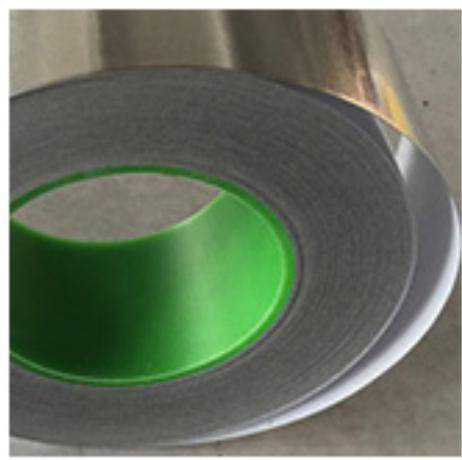

Copper and aluminum foil

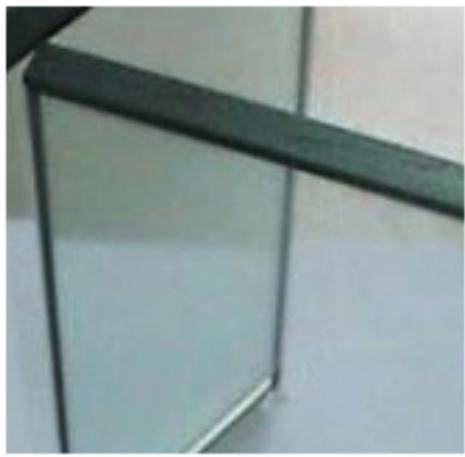

Glass panels

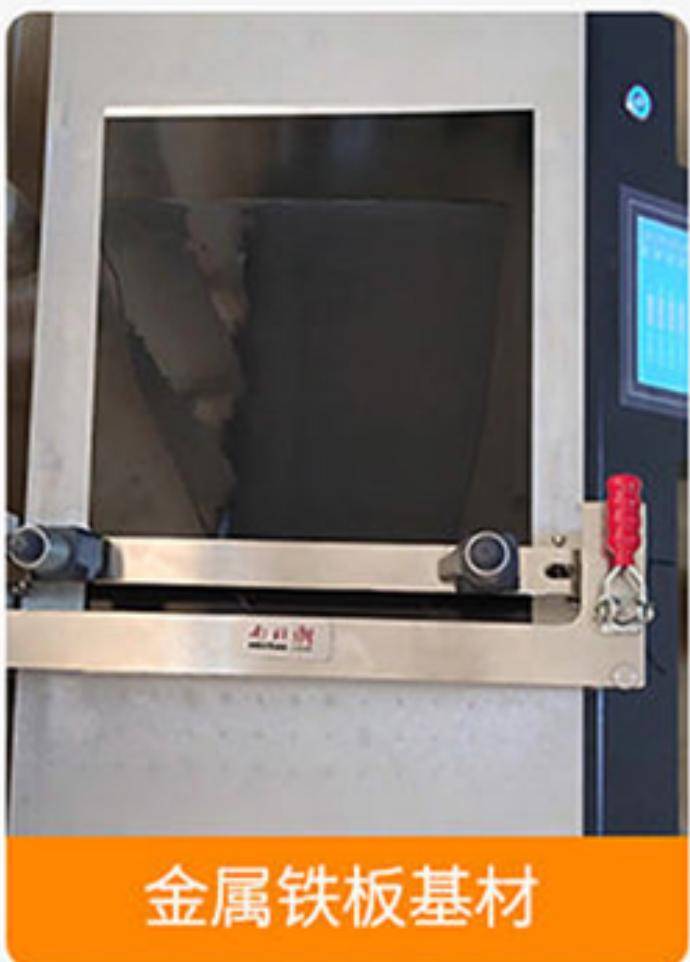

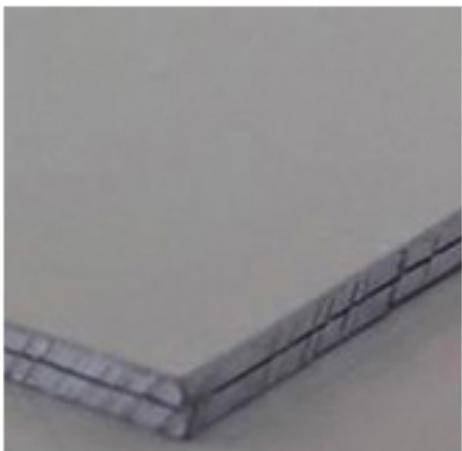

Metal plates

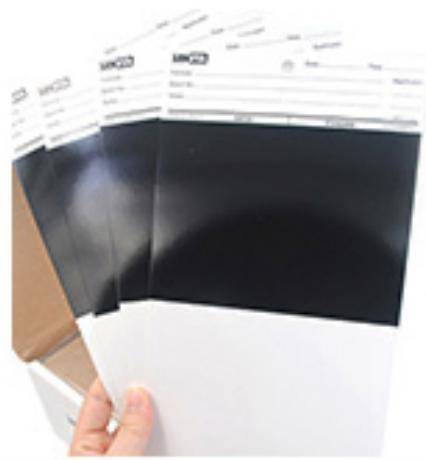

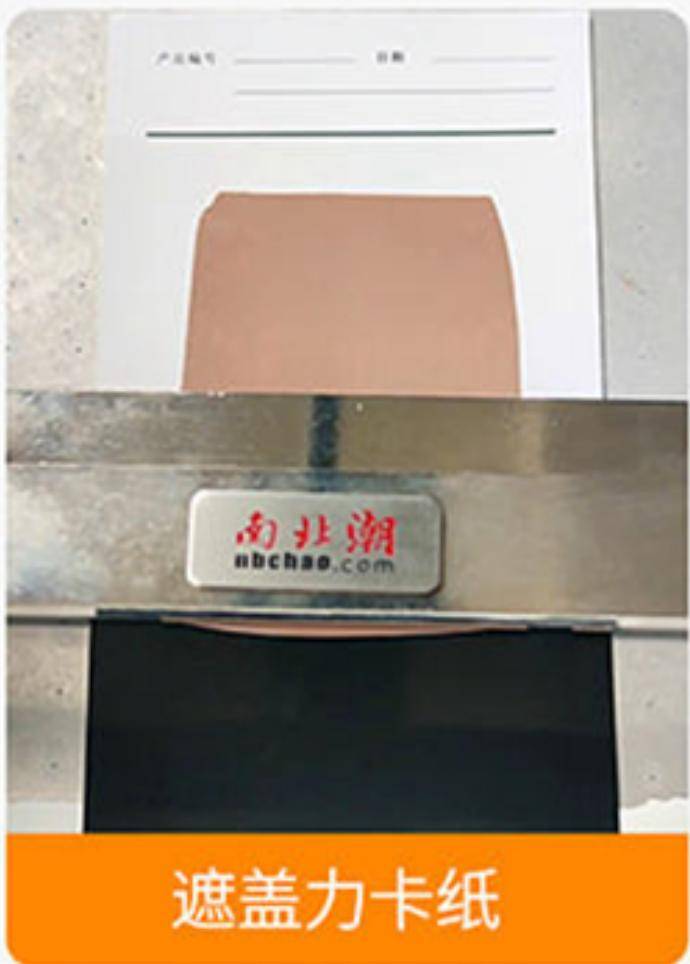

Coated paper jam

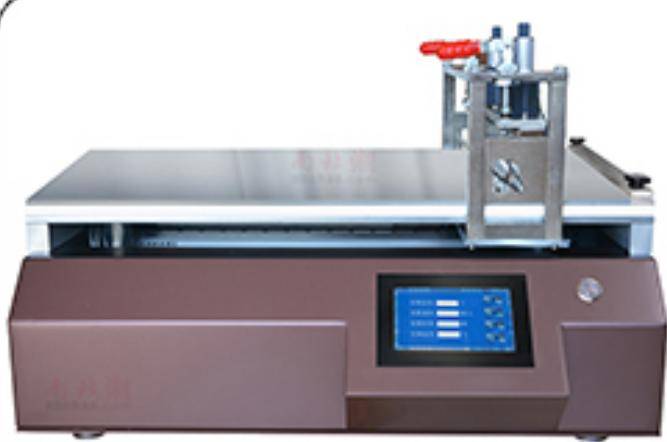

Freely combine functional configurations

As a coating platform, the coating machine itself does not control the film thickness; the control of film thickness is determined by the wire rods or preparators installed on the coating machine. For special products or substrates, heating and vacuum adsorption functions are available!

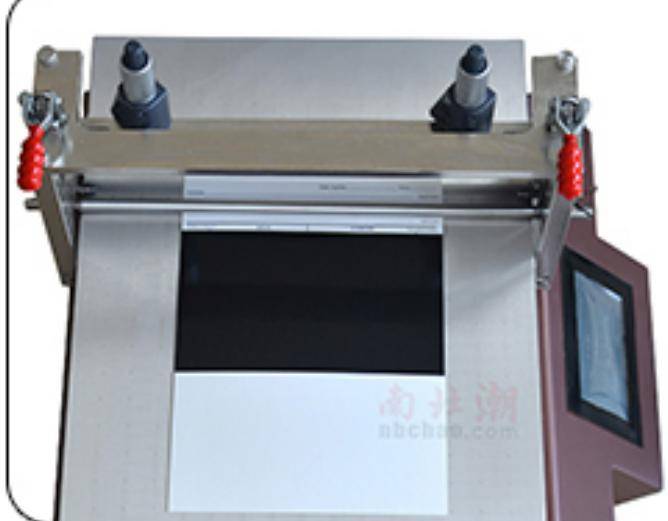

Coating equipment: wire rod

Coating thickness: 1.5~217.2μm

Scope of application: low-viscosity samples, ultra-thin coatings, multi-layer coatings, etc

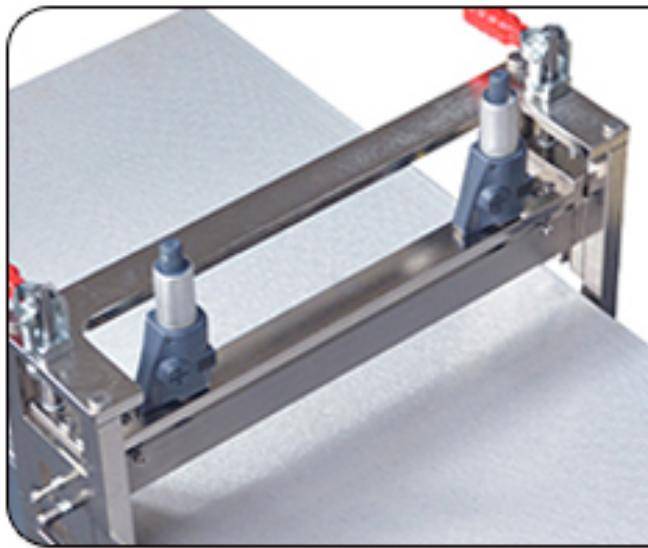

Coating equipment: Adjustable scraper preparator

Coating thickness: 0~10mm

Scope of application: high-viscosity samples, scratch-free, easy to clean

🔸 Equipped with heating function

■ Temperature range: RT+~200°C
■ Suitable for: coatings requiring heating and drying

🔸 Vacuum adsorption function

■ Vacuum pump: External vacuum pump reduces main unit vibration
■ Suitable for: soft thin substrates such as film, paper, and foil

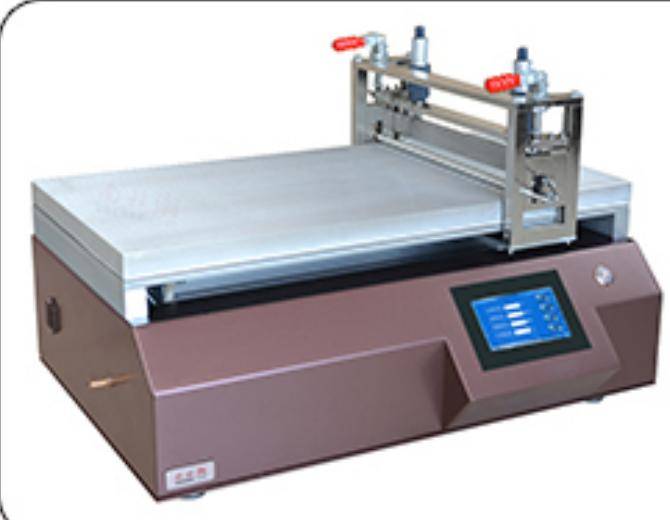

Flexible combination of wire rod/scraper/heating/vacuum adsorption meets experimental prototyping needs

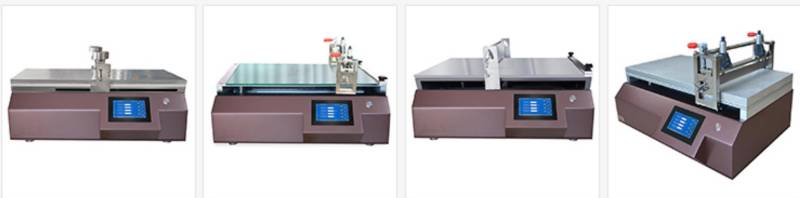

⚙ Special configurations and personalized configurations are available

Due to different experimental environment conditions, special accessories are provided to meet certain special coating requirements, ensuring better coating results.

Optional configuration	Application scenarios
Fine-tuning horizontal height support foot device	Solve uneven workbenches in the laboratory
Silicone pad + weight	Solves uneven coating substrates
Gravity weights	If the coating substrate is too thin, gravity scraping will make the film even thinner
Fixing fixtures	Used as a supporting vacuum adsorption plate
Special platform material	Stainless steel material is available
Upper heating function	Heat and dry
Customizable functions: jet system device, UV solid inclusion device, automatic ink filling system

Cases of collaboration between research institutes

Against the backdrop of policies encouraging domestic procurement of instruments, more and more research institutes, research institutes, and well-known enterprises are choosing this cost-effective solution, offering numerous specialized solutions.

Some universities: Tsinghua University, South China University of Technology, Wuhan University, North University of China, Dalian University of Technology, Shenyang Pharmaceutical University, Xi'an Jiaotong University, Beijing Jianzhu University, Southwest Jiaotong University, Shanghai Jiao Tong University, Hebei University of Science and Technology, Henan University, Harbin Institute of Technology

Some research institutions

XX Provincial Quality Supervision and Testing Research Institute
A National Institute of Nanotechnology Innovation in Guangdong
A certain research institute of the Chinese Academy of Sciences
A provincial materials industry technology research institute
A rare earth materials research institute
Sinopec Safety Engineering Research Institute
