IWAVE WF30 16mm large diameter Colorimeter fabric color difference leather color difference wood color difference special measuring instrument

16Mm large diameter, suitable for detecting texture, rough, soft, wet and other products, built-in whiteboard automatic correction, repeability accuracy < 0.05, with computer software.

Brand

SKU: NB001351

IWAVE

Model

Price

$ 1392.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

IWAVE shopSE

Information

Datasheet RFQ Contract Video Catalog Manual

What else did others buy

WF series Colorimeter liquid, powder multifunctional test accessories, suitable for 16mm aperture WF Colorimeter

$ 506.00

Genuinegoods

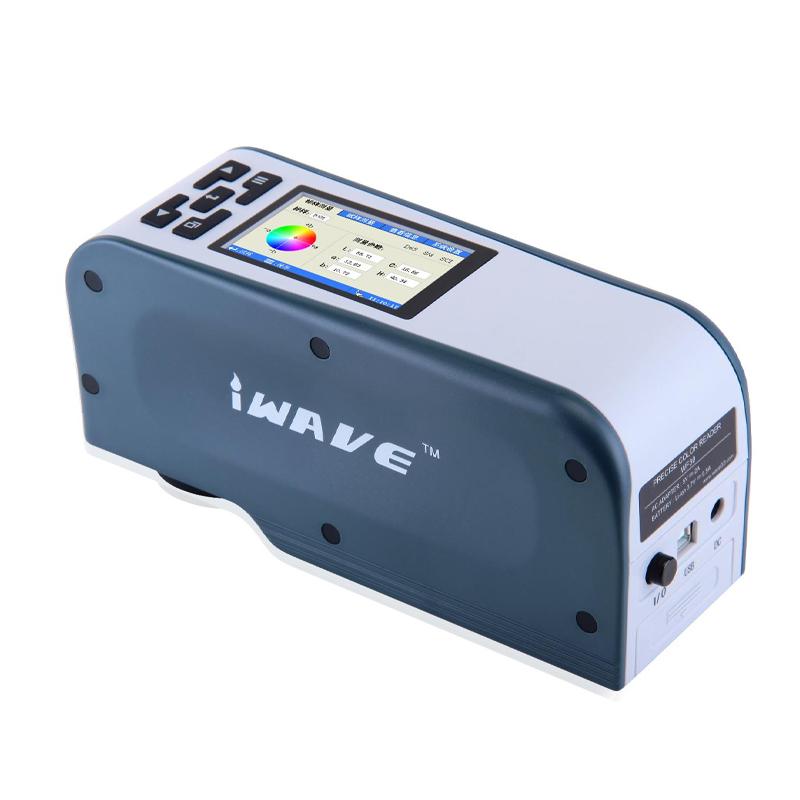

IWAVE WF30-16mm ColorimeterOverview
Specifications
Comments
FAQs

WF30-16mm

Colorimeter

16Mm large diameter, suitable for detecting texture, rough, soft, wet and other products, built-in whiteboard automatic correction, repeability accuracy < 0.05, with computer software.

IWave WF30-16mm large-aperture Colorimeter is a WF30 series Colorimeter with a relatively large measuring caliber. It is specially used for color difference measurement of textile fabrics, leather goods, and wood furniture. The color measuring caliber is 16mm. Due to its large diameter, the WF30-16mm computer Colorimeter is very suitable for measuring some striped cloth, leather or wood products and some large-area color measurement products. The WF30-16mm large aperture Colorimeter is not only professional and practical, but also has the characteristics of high precision and automatic correction. The shape of the body is horizontal, and the measurement is stable without light leakage, which improves the measurement accuracy of the computer Colorimeter.

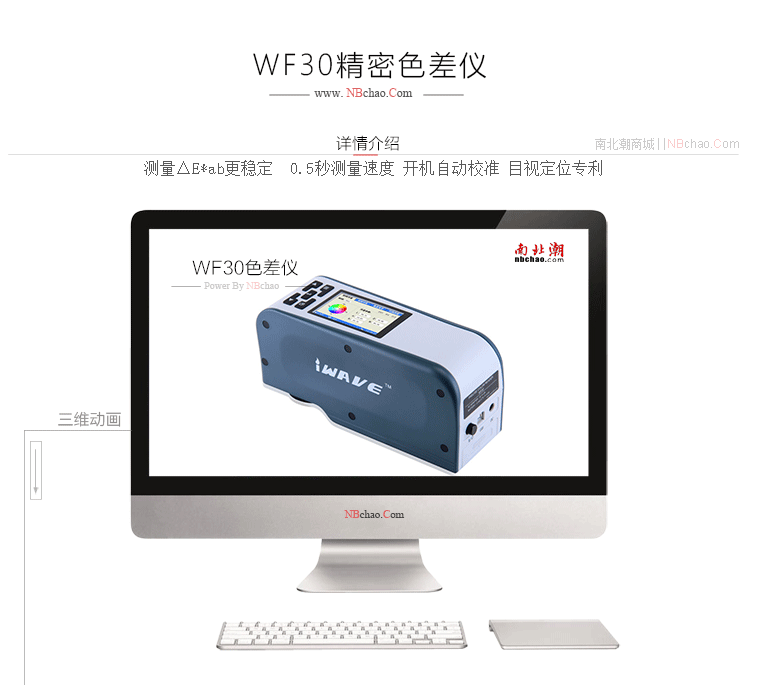

IWave WF30-16mm computer Colorimeter 3D animation display

IWave WF30-16mm large aperture Colorimeter Specifications

Features and advantages of IWave WF30-16mm computer Colorimeter

IWave WF30-16mm computer Colorimeter Application

IWave WF30-16mm computer Colorimeter authorization certificate and after-sales warranty

Front and side view of IWave WF30-16mm computer Colorimeter

IWave WF30-16mm computer Colorimeter packing list and interface details

IWave WF30-16mm computer Colorimeter application example diagram

IWAVE WF30-16mm ColorimeterSpecifications

LIST	VALUE
Lighting method	8°/d
Sensors	Photodiode Array
Measuring range	L:0~100
Measurement light source	D50,D65,F11(TL84)
Measurement time	0.5s
Measurement caliber	F16mm
Sexual repeability	ΔE * from < 0.05
Operating language	Simplified Chinese, English
Data Interface	USB2.0(USB-B型)、RS-232(115200bps)
Viewing Angle	CIE 10 °
lighting source	LED blue light excitation
Color difference formula	ΔE * from
Data storage	100 master standard data, 200 sample data under each master standard
Power	Lithium battery can be measured 5000 times after being fully charged
display mode	BODY
Operating conditions	0 ℃ -40 ℃ (32 ° F -104 ° F); Relative Humidity below 85% No condensation
Storage environment	-20 ℃ -50 ℃; Relative Humidity is less than 85% without condensation
Dimensions	1996890mm
Weight	700g
Light-containing method	SCI SCE
Inter-station difference	ΔE * from < 0.2
Lighting source life	5 years more than 1.60 million measurements
Display	TFT True Color Display 2.8inch @(16:9) Resolution: 400x240
Packing size	400240340mm
Optional accessories	Liquid test kits, powder test boxes, micro printers

IWAVE WF30-16mm Colorimeter Packing list

Host X1, White Calibration plate X1, Data cable X1, Manual X1, Warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Measure Protective Gloves, uneven surface, rough surface, uneven surface, wrinkling surface, flat surface, flat surface, or wrinkling, all need to be detectable

[A]

Recommendation WF30-16 Recommendation WF30-16 16Mm large diameter, suitable for detecting texture, rough, soft, wet and other products, built-in whiteboard automatic correction, repeability accuracy < 0.05, with computer software.

[Q]

Which model of barite powder color difference meter is applicable?

[A]

IWAVE WF-30 16mm + WF series color difference meter liquid, powder multifunctional test accessories.

[Q]

Color readers suitable for measuring creams, powders, liquids, etc. in the cosmetics industry?

[A]

Hello, you can use the WF30-16mm model with 16mm multi-functional test accessories instrument. In addition, Sanenchi's NH series and NS series supporting multi-functional test components can also be tested.

[Q]

Does this color reader comply with GB/T21245 standard?

[A]

This color reader is suitable for GB/T21245. Please consult customer service for detailed application definition.

[Q]

Is there a color reader who can measure powder? calcium carbonate, talc powder

[A]

Test powder color difference, compared to imports, in fact, domestic (CN) current technology can not achieve the stability of imported color reader, but the following two effects can also be, the first: 3nh YS3010 colorimeter https://www.nbchao.com/p/9703/, need to be equipped with powder test box; the second: Weifu WF color reader https://www.nbchao.com/list24_b12_298.html, need to buy powder multi-functional test accessories (https://www.nbchao.com/p/7878/).
