Plastic Shore Durometer LX-D-2 Hypertherm Plastic Shore D Hardness Gauge Plastic product hardness testing

product description

Haibao LX-D-2 Plastic Shore Hardness Tester is a double-pointer D-type Shore Hardness Tester, which can be used for hand-held testing, or can be purchased separately for testing with the same type of test bench. LX-D-2 Plastic Shore Hardness Tester is used to measure the hardness value of plastic products, vulcanized rubber, plastic test pieces and other products. It is produced and designed according to various international and national standards.

When the LX-D-2 Plastic Shore Hardness Tester is used to test plastic samples, the test shall be carried out in accordance with the relevant provisions of GB/T2918-1998 "Standard Environment for Condition Regulation and Testing of Plastic Samples". The recommended range of measurement is 20-90HD.

Product Structure

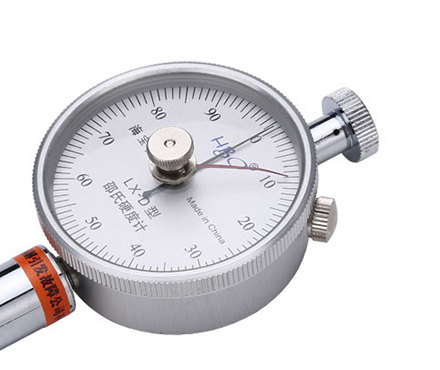

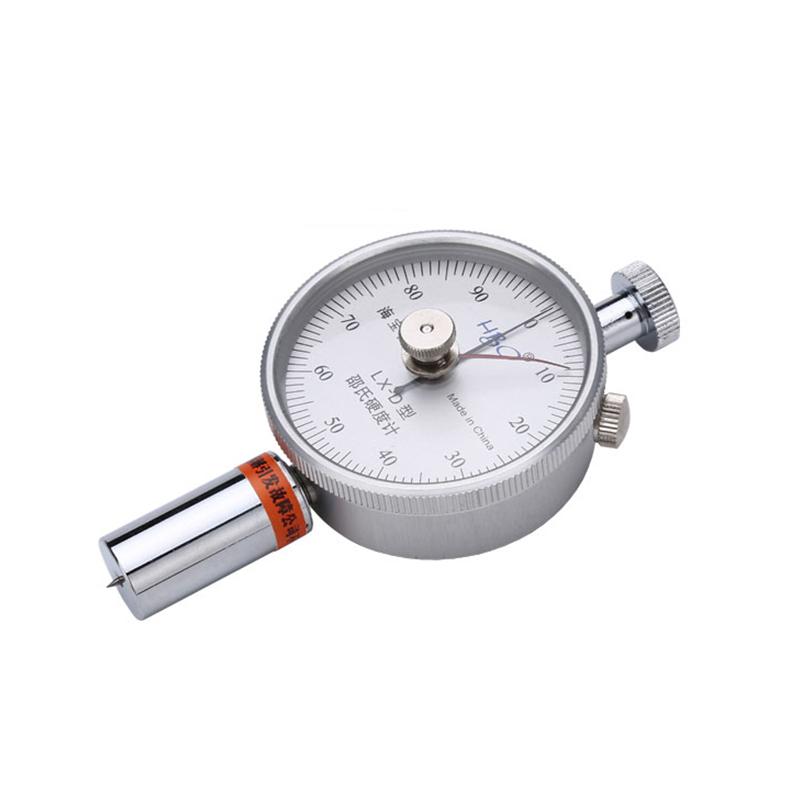

LX-D-2 plastic Shore Hardness Tester is composed of test head, dial, peak pointer return knob, peak pointer (red), locking screw, tracking pointer (black) and other parts. The specific size and structure diagram are as follows:

Pre-test inspection method

1. Before use, check whether the pointer of the LX-D-2 plastic Shore Hardness Tester is pointing to the zero position in a free state (if the pointer slightly deviates from the zero position, you can loosen the compression screw at the upper right corner, and turn the dial to align with the zero position , and then tighten the compression screw); if the peak pointer value deviates from the zero position, you should turn the peak pointer return knob first, and put the peak pointer close to the right side of the tracking pointer.

2. When the LX-D-2 plastic Shore Hardness Tester is pressed on the reference plane to check the zero position, because the hard indenter is easy to press into the reference plane under heavy load, it cannot read accurately, so it needs to be pressed on the reference plane. Put on the standard gauge block. When operating, hold the LX-D-2 plastic Shore Hardness Tester, align the indenter with the center hole of Lingkuai, and press down the plastic Shore Hardness Tester. When the pressing foot of the LX-D-2 Hardness Tester is pressed with the special gauge block and the reference surface, the Hardness Tester should display 10±0.5HD (the thickness of the gauge block is 2.25±0.003mm, which is equal to the indentation depth when the Hardness Tester is pressed into 10HD) , if it cannot be displayed accurately, the Hardness Tester cannot be used.

Pictures

Hardness gauge x1, certificate x1, warranty card x1, manual x1, instrument case x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
