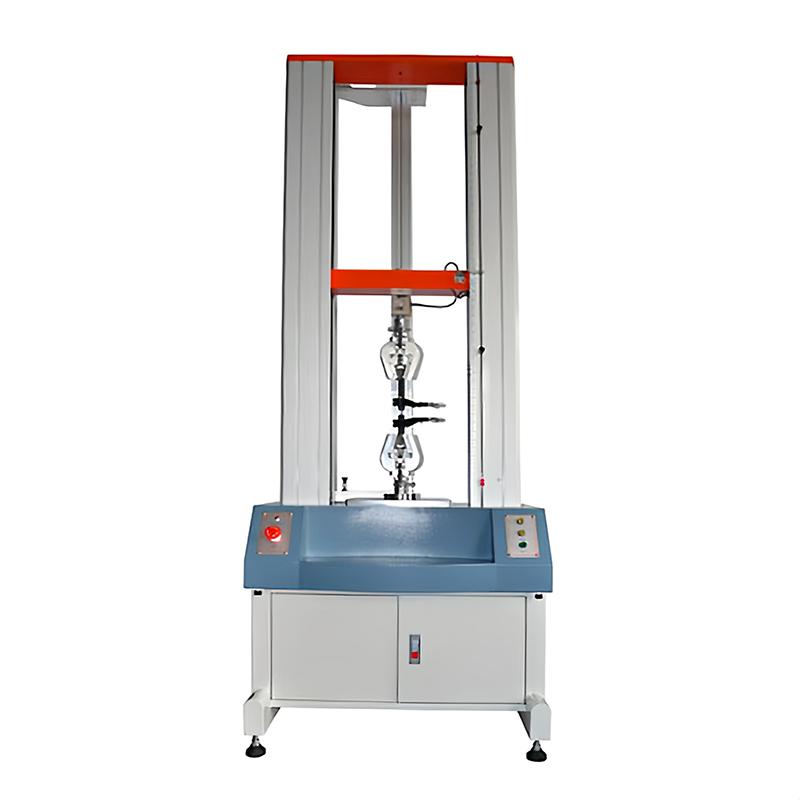

FARI FR-103C Tensile Tester 0.5

Introduction

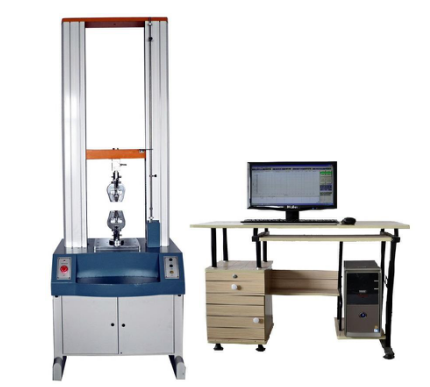

FR-103C computerized servo multifunctional material Tensile Testing Machine is a new type of material testing machine combined with electronic technology and mechanical transmission. It can also carry out automatic control tests of constant velocity loading and constant velocity displacement. It is easy and convenient to operate, and is especially suitable as a testing instrument for controlling product quality on the production line. This series of models is mainly suitable for the test of non-metallic and metallic materials with a test load less than 30kN.

The main function

It is mainly suitable for testing metal and non-metal materials, such as rubber, plastic, wire and cable, fiber optic cable, seat belt, safety belt, leather belt composite material, plastic profile, waterproof coil, steel pipe, copper material, profile, spring steel, Bearing steel, stainless steel (and other high-hardness steel), castings, steel plates, steel strips, tension, compression, bending, shearing, peeling, tearing, two-point extension (an extensometer is required), etc. Various tests.

main feature

The controller adopts embedded single-chip microcomputer structure, built-in powerful measurement and control software, which integrates measurement, control, calculation and storage functions. It has the function of automatically calculating stress, elongation (extensometer needs to be added), tensile strength and elastic modulus, and automatically counts the results; automatically records the force value or elongation of the maximum point, breaking point, and designated point; uses a computer for testing The process and test curves are dynamically displayed, and data processing is performed. After the test is over, the curve can be zoomed in through the graphics processing module for data re-analysis and editing, and reports can be printed. The product performance has reached the international professional level.

Standards

"GB/T16491-1996 Electronic Multifunctional Testing Machine"

Application

Widely used in metrology and quality inspection; rubber and plastics; metallurgy and steel; machinery manufacturing; electronic appliances; automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instruments and meters; medical equipment; civil nuclear energy; civil aviation; LABOratories; commodity inspection, arbitration and technical supervision departments; building materials and ceramics; petrochemical industry; other industries.

Host X1, manual X1, certificate X1, warranty card X1, standard tensile fixture X1 (group), special test software for tensile machine X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
