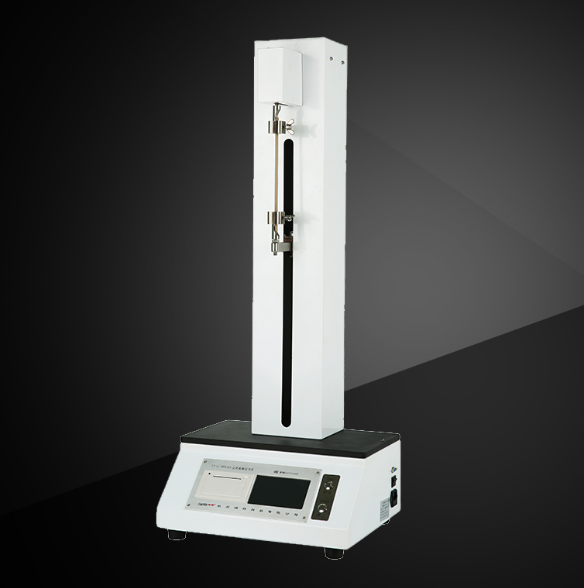

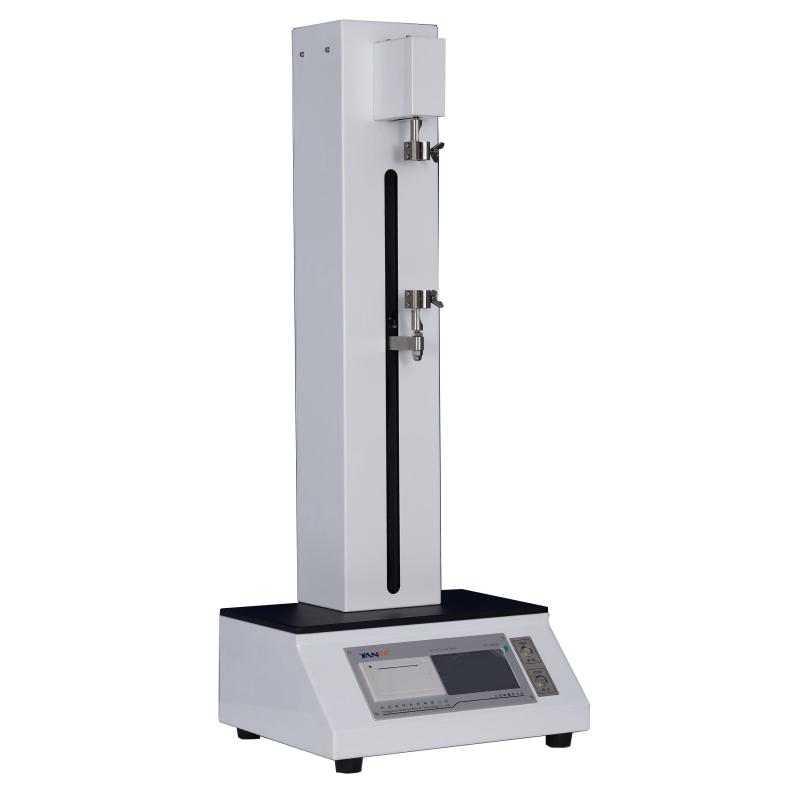

YANTE YT-L500 Vertical computerized tensile Tester, tensile index elongation tensile strength peel strength

Introduction

Yante YT-L series vertical computer tensile Tester is mainly used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries and other production and commodity inspection departments that need to measure the tensile strength of objects.

Application

Paper, cardboard; aluminum foil, aluminum-plastic tape; plastic film and other non-metallic materials.

Features

• Determination of tensile strength, tensile strength

• Determination of elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index

• Measuring Adhesive Tape Peel Strength

Features

1. The transmission mechanism adopts ball screw and 3 guide shafts, and the transmission is stable and accurate.

2. Stepper motor (servo motor) is adopted, with low noise and precise control.

3. It adopts 5-inch TFT true color LCD touch screen and Chinese menu. During the test, the stretching time, load tension, etc. are displayed in real time; and the stretching curve can be displayed.

4. The motherboard adopts new technology and new design, and the CPU adopts 32-bit ARM processor, which improves the processing speed of the instrument, calculates data more accurately and quickly, and ensures the real-time performance of measurement data (the maximum force value will not be lost).

5. It has the characteristics of automatic reset, data memory, overload protection and fault self-diagnosis.

6. Variable sample size and tensile speed: For common standard size samples, the tensile test can be carried out directly at the specified speed, and the test length and width of the sample can be changed according to the needs of the situation by setting an appropriate tensile speed.

7. The measuring range is wide, the measuring range of the instrument (0-30N/0-100N/0-300N/0-1000N) can be changed according to the user's needs by configuring different force measuring devices, and can be widely used in various paper, toilet paper, plastic films Tensile test determination of other materials.

8. It adopts thermal printing core, no need to use ink and ribbon, no noise when working, and fast printing speed.

9. The instrument is equipped with a standard RS232 interface, which can communicate with computer software (purchased separately).

host X1, printing paper X1, power cord X1, 15mm chuck X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
