IWAVE WG45 Film Plastic Glossmeter 45 ° Single Angle Gloss Meter Film industry specific

Overview of WG45 Thin Film Plastic Gloss Meter

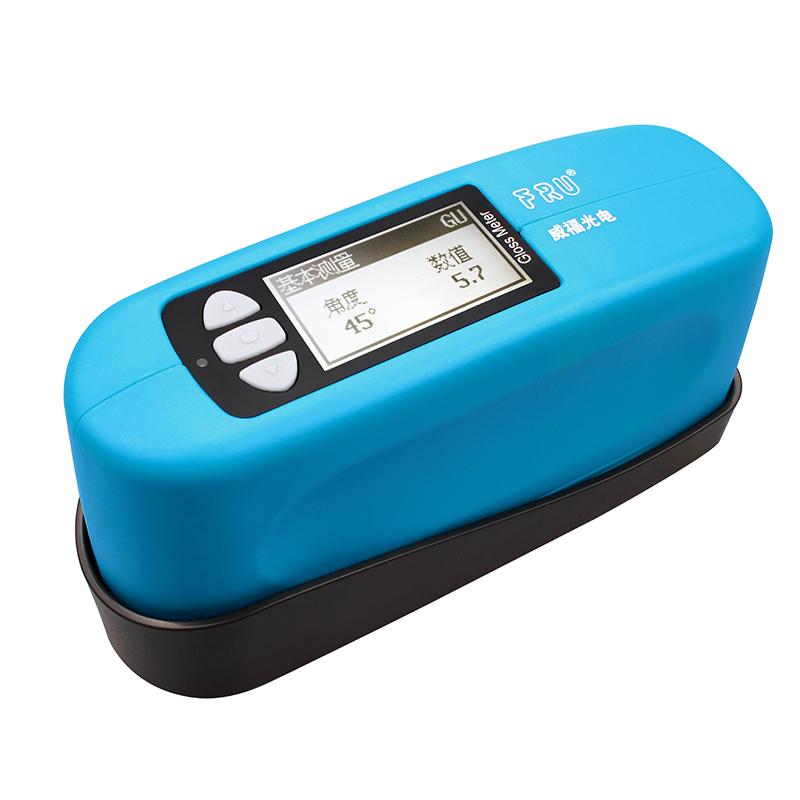

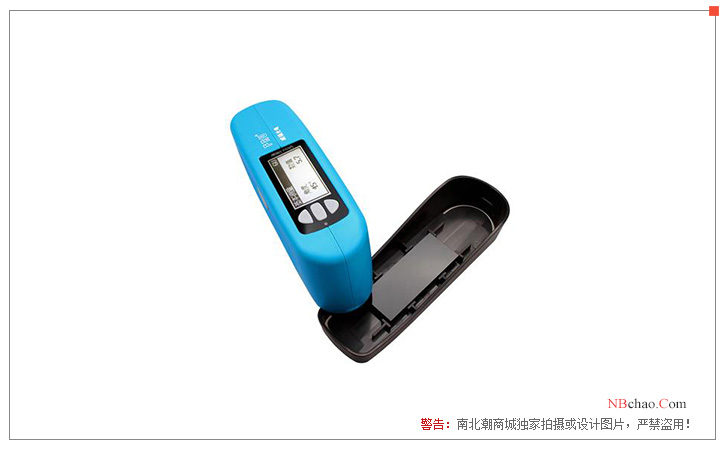

IWave WG45 Thin Film Plastic Gloss Meter is a portable single-angle film plastic gloss meter with a projection angle of 45°. The gloss range of measurement is 0~200Gu. The appearance of WG45 thin film plastic gloss meter is blue, it adopts LCD, and it can be calibrated manually through the base calibration plate. The measurement spot size of WG45 is 9x15mm ellipse, and it has a variety of measurement modes to meet different measurement needs of users, including automatic measurement, manual measurement, single measurement, average measurement, etc.

Features of WG45 Thin Film Plastic Gloss Meter

1) The measurement angle is 45 degrees;

2) Menu navigation, easy to operate;

3) Equipped with dry battery and external rechargeable power supply;

4) Long-life light source, good stability, instant measurement;

5) A variety of measurement modes: automatic measurement, manual measurement, single measurement, average measurement, and can realize cross-setting for measurement, providing a variety of combined measurement modes.

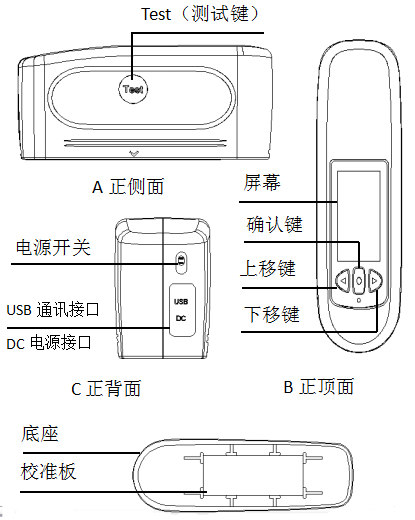

WG45 Thin Film Plastic Gloss Meter Structure Diagram

WG45 Thin Film Plastic Gloss Meter Display

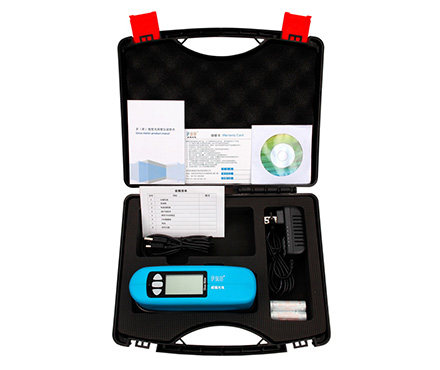

Host x1, manual x1, warranty card certificate x1, Calibration plate x1, battery x2, power adapter x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
