Germany Phynix Sur fix ® Pro X Coating Thickness Gauge Film thickness meter Single host, probe purchased separately

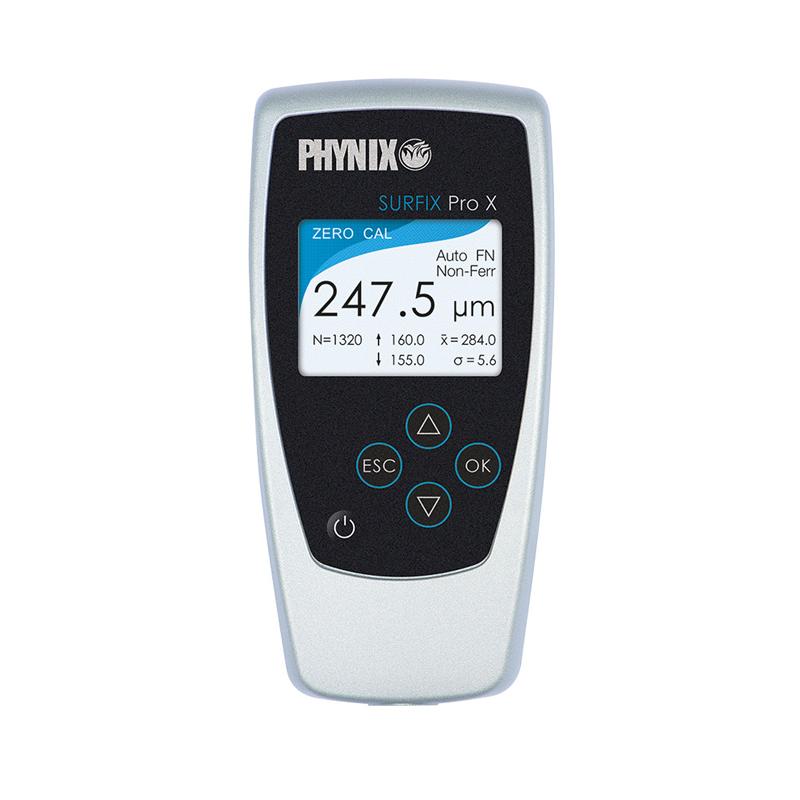

The German Phynix Sur fix ® Pro X Coating Thickness Gauge is a portable film thickness meter without probe, featuring a high-resolution color display. The Sur fix ® Pro X can transfer data via USB 2.0 and Bluetooth 4.0.
PHYNIX
Surfix®ProX
Surfix SX-N1.5
Surfix SX-FN1.5
Surfix SX-F1.5
-
YIBAI CTG-600FN3 split dual-use Coating Thickness Gauge 3mm thick coating
$ 299.00 -
German EPK MiniTest 735 F1.5 statistical coating Thickness Gauge, thickness measurement 0~1500μm
$ 2247.00 -
LANDTEK CM8826n dry Film Thickness Gauge measurement of non-metallic coatings on nonmagnetic metallic substrates
$ 309.00 -
Qnix Fe3mm magnetic thickness probe 3000μm
$ 739.00 -
Defelsko PosiTector 6000 FS1 Coating Thickness Gauge Iron metal substrate (such as steel) nonmagnetic coating
$ 966.00
The new Phynix Surfix®ProX coating Thickness Gauge is a new product with many new features that meet the high demands of modern coating Thickness Gauges.
The very good high-resolution color display is the most significant difference between our previous premium product, the Surfix®ProS. It has the use of many different character sets, so it greatly increases the number of languages available for user guidance, such as Chinese. The bright, high-contrast display reliably reads the measured values from a distance or in the dark.
The "Industry 4.0" platform requires improved connectivity for measuring devices and product control: Surfix®ProX meets this need via Bluetooth 4.0 and USB 2.0 interfaces, enabling a fully connected production environment. To do this, the capacity of the data store has been upgraded. It can now store up to 100.000 values, including dates, times, and calibrations in files and folders.
The Surfix®ProX offers interchangeable probes and high accuracy as well as simple operation in almost any application area.
Application
electroplate
Paint shop
Automotive industry
chemical industry
Aerospace industry
shipbuilding
Tire industry
Quality management and final inspections
Laboratories and research facilities
Advantages
High-resolution color display
Innovative and user-friendly measurements
Automatic identification of substrates
Automatically set the desired measurement mode
The data stores up to 100,000 values, including name, date and time, and up to 1,000 individual calibrations
Online statistics for all common parameters
Data transfer via USB 2.0 and Bluetooth 4.0
Intuitive user guide - multi-language menu
Scan mode for continuous measurements
Optional plastic feet up to 150°C or 300°C
Producer's Inspection Certificate
2 years warranty
PHYNIX Surfix®ProX Film thickness meterSpecifications
| LIST | VALUE |
|---|---|
| Measurement principle | Magnetic Induction + eddy Current |
| Measurement range | ≤30mm |
| margin of error | 0.7μm+1% |
| resolution | 0.1μm |
| probe | Not included, need to be purchased separately |
| Calibrated mode | Factory calibrated, zero calibrated, foil calibrated, double foil calibrated |
| statistical function | n，x¯，s，Min，Max，Kvar，cp，cpk |
| Interface | Bluetooth 4.0 USB 2.0 |
| Data storage | 100,000 values |
| Standards | DIN，ISO，ASTM，BS |
| Display screen | High resolution color display, backlit |
| Operating temperature | 0~60℃ |
| Protection level | IP52 |
| Weight | 205G (including battery) |
| Dimension | 137*66*23mm |
| Probe contact temperature | -15 ℃~ + 60 ℃~ + 150 ℃/+ 300 ℃ (optional foot) |
PHYNIX Surfix®ProX Film thickness meter Packing list
Host X1, FN1.5X1, manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
