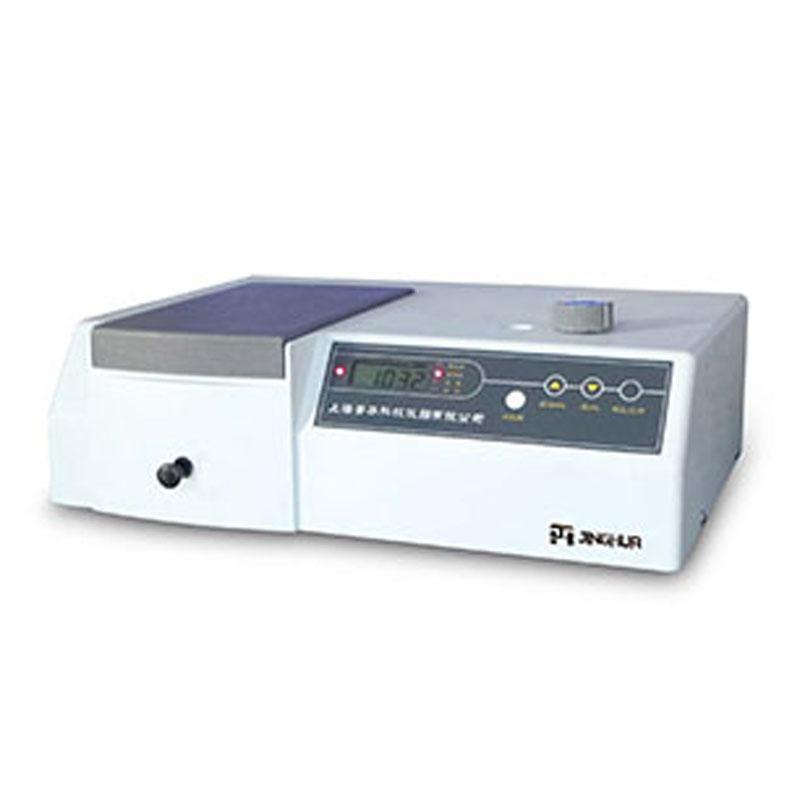

JINGHUA 723PC visible Spectrophotometer Wavelength range: 320~1000nm
JINGHUA 723PC visible Spectrophotometer has T, A, C, F and other functions. The 723PC is a visible Spectrophotometer with high performance 1200L/mm light, and the wide sample room meets the needs of different industries.
jinghua
723PC
-
YueFeng FSP6633 Flame Spectrophotometer Test Potassium/Sodium/Barium
$ 2558.00 -
JINGHUA H300 Dual beam of light Spectrophotometer Wavelength range 190nm-1100nm
$ 2636.00 -
YueFeng FSP6642 Flame Spectrophotometer Test Potassium/Sodium/Lithium/Barium
$ 3413.00 -
JINGHUA 756CRT UV-Visible Spectrophotometer Light spectrum
$ 4423.00 -
JINGHUA 722 visible spectrophotometer high performance grating, low stray light, wide sample chamber
$ 350.00
Features
The high-performance 1200L/mm photonic and C-T monochromator structure, coupled with imported tungsten lamp and high-sensitivity photoelectric converter, ensure that the instrument has high resolution, high-luminosity linearity and low stray light. The test accuracy and stability are improved.
The large sample chamber and the maximum sample holder of 100mm can be selected to meet the needs of different industries.
It has the functions of T, A, C, F etc.
High precision, low price, ultra-high cost performance, suitable for improved laboratory.

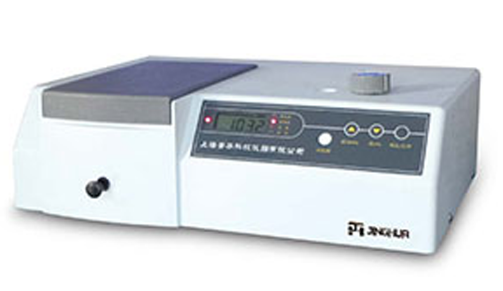

jinghua 723PC Visible Spectrophotometer Specifications
| LIST | VALUE |
|---|---|
| Light spectrum Bandwidth | 2nm |
| Wavelength range | 320~1000nm |
| Wavelength Precision | ±1nm |
| Wavelength Repeatability | 0.5nm |
| stray light | ≤0.05%T |
| Noise level | 0.0005A |
| Stability | ±0.001A/h |
| Baseline flatness | ±0.002A |
| Interface | USB RS-232 |
| Transmittance Precision | ≤0.3%T |
| Transmittance Repeatability | 0.1%T |
| Measurement range of transmittance | 0~200%T |
| Absorption range | -0.4~4A |
| Display range of concentration | 0~99999 |
| Wavelength Drive | automatic |
| Scanning speed | High, medium and low |
| dynamics | have |
jinghua 723PC Visible Spectrophotometer Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
