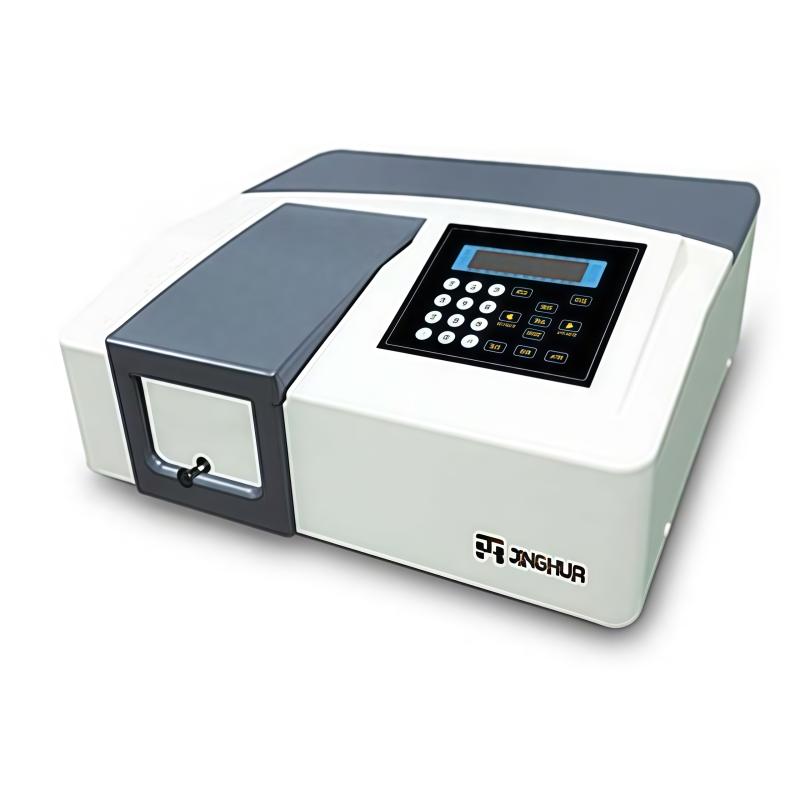

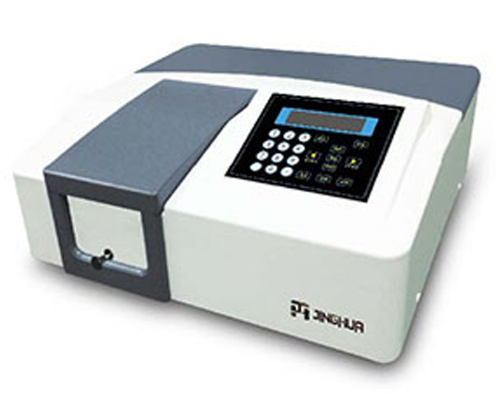

JINGHUA 756 UV-Visible Spectrophotometer 2nm Light spectrum Bandwidth 190-1100nm Wavelength range
High-performance UV special grating and imported Illuminant, stray light as low as 0.03% T, wavelength Precision up to +/- 0.5nm. With automatic wavelength setting, Illuminant switching and Baseline straightening functions, the sample chamber can be expanded to support a variety of test modes.
jinghua
756
-
JINGHUA 756MC UV-Visible Spectrophotometer Imported deuterium lamp/tungsten lamp
$ 2480.00 -
YueFeng UV756 (PC) Ultraviolet-visible spectrophoto-meter with PC software
$ 1345.00 -
JINGHUA 7600 Dual beam of light UV-Visible Spectrophotometer Wavelength Accuracy ： +/- 0.5nm
$ 4423.00 -
JINGHUA 723 Automatic visible spectrophotometer High performance, low stray light, automatic wavelength setting
$ 770.00 -
YueFeng FSP6641 Flame Spectrophotometer Test Potassium/Sodium/Lithium/Calcium
$ 3413.00
Features
It adopts 1200L/mm high-performance UV special grating, imported long-life deuterium lamp/tungsten lamp, imported photoelectric converter, and professional CT monochromator structure to make the instrument have low stray light, high resolution and good photometric linearity.
The large sample chamber can be expanded to a 10cm sample rack, thereby expanding the testing range of the instrument.
Automatically set the wavelength, automatically adjust 0%T/100%T, and error-free conversion of T/A.
It has professional functions such as automatic correction of wavelength errors and automatic switching of light sources, ensuring the test accuracy and continuity of the instrument.
The instrument has functions such as photometry, quantification, and standard curves, and the scanning instrument can expand functions such as regression equations.
jinghua 756 UV-Visible SpectrophotometerSpecifications
| LIST | VALUE |
|---|---|
| Light spectrum bandwidth | 2nm |
| Wavelength range | 190~1100nm |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | 0.2nm |
| stray light | ≤0.03%T |
| Noise level | 0.0005A |
| Stability | ±0.001A/h |
| Baseline flatness | ±0.002A |
| Interface | RS-232 |
| Transmittance Accuracy | ≤0.3%T |
| Transmittance Repeatability | 0.1%T |
| Transmittance range | 0~200%T |
| Absorption range | -0.4~4A |
| Display range of concentration | 0~99999 |
| Wavelength Drive | automatic |
| regression equation | have |
| dynamics | have |
jinghua 756 UV-Visible Spectrophotometer Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
