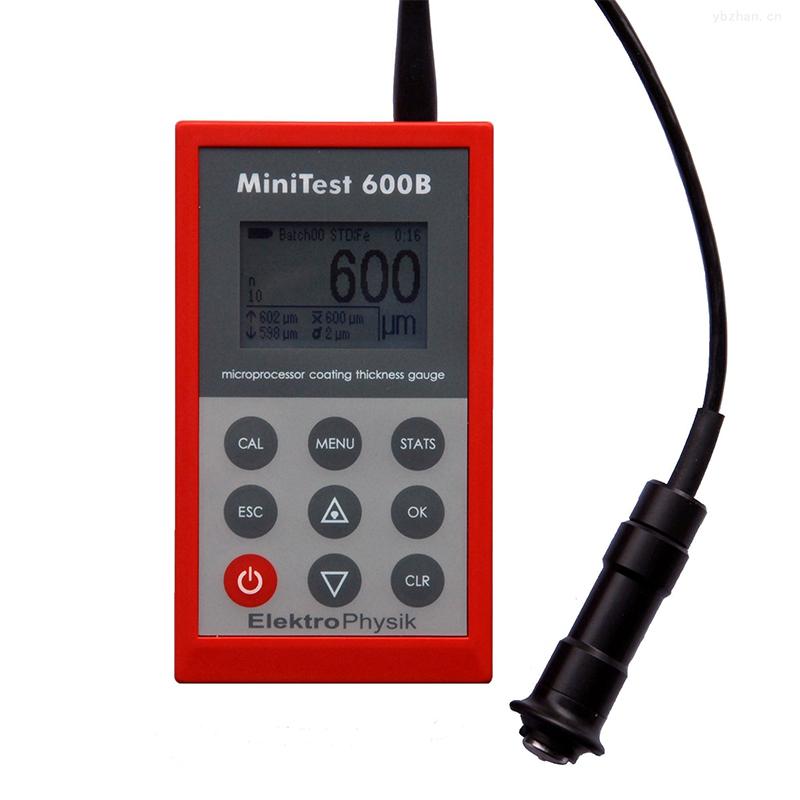

ElektroPhysik MiniTest 600 F Coated platings Thickness Gauge

Germany EPK MiniTest 600 F Coating Thickness Gauge MiniTest600 Range 0~3000μm

EPK MiniTest 600 F Coating Thickness Gauge is an economical and durable statistical Coating Thickness Gauge for the measurement of Coating thickness on steel in the range of 0~3000μm. MiniTest 600F is suitable for the thickness measurement of anti-corrosion coating platings such as building profiles, automotive shipbuilding, etc., with backlight display function.

Brand

SKU: NB016767

ElektroPhysik

Model

MiniTest 600 F

Service

ElektroPhysik shop

Information

Datasheet

What else did others buy

Genuinegoods

ElektroPhysik MiniTest 600 F Coated platings Thickness GaugeOverview
Specifications
Comments
FAQs

MiniTest 600 F

Coated platings Thickness Gauge

Introduction

The EPK MiniTest 600 F Coated Thickness Gauge is a durable, economical statistical coating Thickness Gauge for all non-magnetic coatings on steel, such as paint, plastic, enamel, chromium, zinc, and more.

The MiniTest 600 coating Thickness Gauge is suitable for the measurement of anti-corrosion coatings in the automotive, shipbuilding, bridge construction, as well as building profile and manufacturing industries.

Features

1）The host is equipped with128*64-bit LCD backlit display and powered by AA batteries. The clock function records the test time and sets the automatic shutdown time.

2) External integrated design, the probe connects the 1 meter cable with the main unit, and the top of the newly developed probe is made of very wear-resistant hard material to ensure that it will not be damaged for long-term use.

3) MiniTest 600 can be connected to the computer through random software and data cable to display the measured values and statistical values.

Display diagram

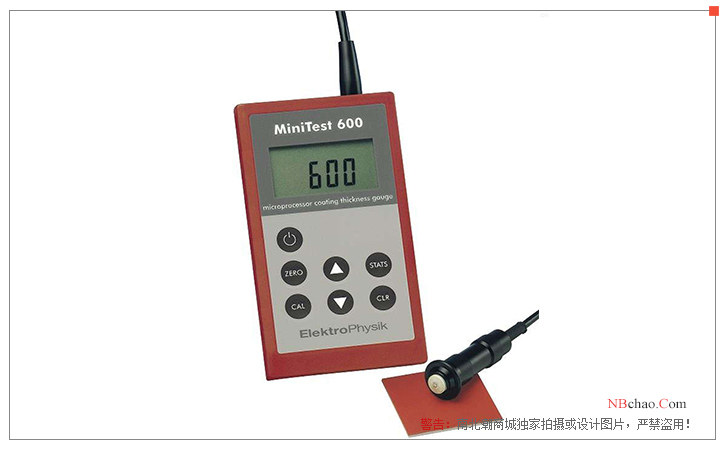

Illustration of the EPK MiniTest 600 F coating thickness gage

ElektroPhysik MiniTest 600 F Coated platings Thickness GaugeSpecifications

LIST	VALUE
Measurement principle	magnetic Induction
Measurement range	0~3000μm
margin of error	±2%
Minimum measurement surface	Φ20mm
Minimum radius of curvature	Convex 5mm; Concave 25mm
thinnest substrate	0.5mm(F)；50μm(N)
probe	Line probe
Calibrated Certificate	none
Probe size	Φ15*62mm
Calibrated mode	Standard calibrated, one point calibrated, two point calibrated
Unit display	μm/mils
statistical function	Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
icon function	none
Interface	USB
Data storage	The maximum number of batches is 10, and the storage Capacity of each group is 1000
Power Supply	2 AA batteries
Standards	ISO, DIN, BS, ASTM standards
system language	English
Display screen	LCD 128 × 64 liquid crystal
Operating temperature	Host: 0 - 50 ℃; Probe: -10 ℃ - 70 ℃
supporting software	Yes.
Weight	270g
Dimension	64 115 25 mm
Optional accessories	Measurement of high-precision probe holder for small workpieces, rechargeable batteries and chargers, various specifications of thickness standard foil

ElektroPhysik MiniTest 600 F Coated platings Thickness Gauge Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
