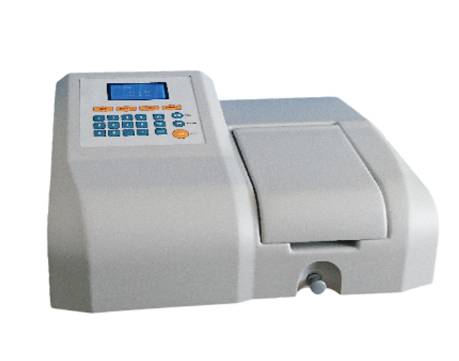

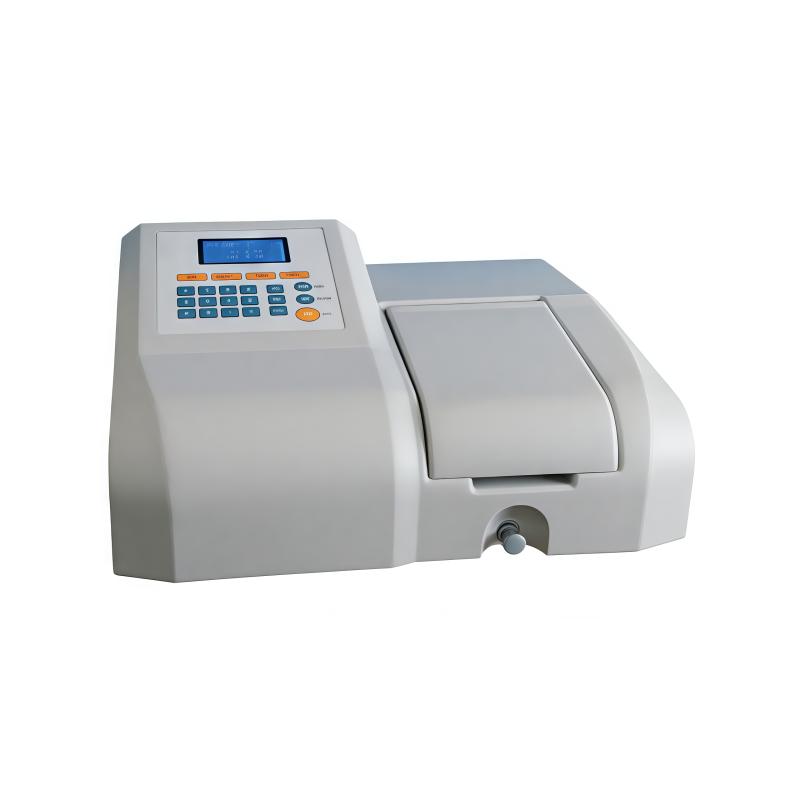

YueFeng UV756 Ultraviolet-visible spectrophoto-meter with USB interface

YueFeng UV756 Ultraviolet-visible spectrophoto-meter has two measurement methods: photometric and quantitative, and adopts a large-screen LCD display. The Wavelength range of UV756 Ultraviolet-visible spectrophoto-meter is 195~ 1100nm, and the bandwidth is 4.0nm.

Brand

SKU: NB017251

YUEFENG

Model

UV756

Price

$ 1252.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

YUEFENG shopSE

Information

Datasheet RFQ Contract Catalog

What else did others buy

Genuinegoods

YUEFENG UV756 Ultraviolet-visible spectrophoto-meterOverview
Specifications
Comments
FAQs

UV756

Ultraviolet-visible spectrophoto-meter

Features

The spacious sample chamber can accommodate 5-100mm cuvettes, and the 10mm sample holder is standard.
The host can perform photometric detection, quantitative detection, and can display standard curves, and can store 100 standard curves and 200 detection data.
With wavelength automatic calibration, automatic power off to keep data.
The main components adopt imported configuration, which is convenient for maintenance.
The newly designed Czerny-Turner optical path ensures the accuracy of detection linearity and ultra-low stray light.
Can be directly connected to a printer (optional) to print data or maps.

YUEFENG UV756 Ultraviolet-visible spectrophoto-meterSpecifications

LIST	VALUE
Optical inspection system	Aberration Elimination (1200L/mm Grating)
Light spectrum bandwidth	2nm
Wavelength range	190~1100nm
Wavelength Accuracy	±0.5nm
Wavelength Repeatability	≤0.3nm
Photometric range	0~200%T、-0.301~3.000A、0~9999C
Photometric Accuracy	±0.002A(0~0.5A)、±0.003A(0.5~1A)、±0.5%T(0~100%T)
Luminosity, sexual repeability	≤±0.2%T(0~100%T)；0.001A(0~0.5A)；0.002A(0.5~1A)
stray light	≤0.05%T@220nm,360nm
Noise level	100%≤0.15%T；0%≤0.01%T
Baseline flatness	±0.002A
Data Interface	USB interface
printout	Parallel port
light source	Deuterium lamp, tungsten halogen lamp
Concentration range	0~1999
Drift	≤0.001A/h@500nm
Scanning speed	Fast, medium, slow
display	High-quality 128x64-bit graph LCD

YUEFENG UV756 Ultraviolet-visible spectrophoto-meter Packing list

complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Can you measure the content of polyhexamethylene biguanidine muriatic acid salt?

[A]

Yes. Polyhexamethylene biguanidine muriatic acid salt (also known as diethylaminoethylbiguanidine mesylate) is a common chemical. In analytical experiments, the UV-Visible Spectrophotometer can be used to measure the Absorbance of a specific compound in a sample, and then infer its concentration. The content of polyhexamethylene biguanidine muriatic acid salt can be determined by dissolving the sample and measuring its Absorbance at a specific wavelength.

[Q]

Does the YUEFENG UV-Visible Spectrophotometer meet the GB/T26810 standard?

[A]

The UV-Visible Spectrophotometer of the UV756 can be referred to
