METASH UV-5800 UV-Visible Spectrophotometer Range: 190-1100nm/+/- 0.5nm

Instrument Features and Functions:

◆ The double beam proportional monitoring optical system enables the photometer to dynamically monitor the changes of the light source during the measurement process, offset the fluctuation of the light source, and improve the stability of the instrument;

◆ The instrument adopts 128×64-bit dot matrix LCD screen, and each screen can display multiple sets of data;

◆ It can directly establish the standard curve, and can use the standard curve to carry out related tests, can continuously test and store 200 sets of data, and can store 200 standard curves, according to the number of convenient call, test data and power-off protection;

◆ Automatic wavelength calibration, automatic setting, deviation self-repair;

◆ Flange pedestal type deuterium lamp design, lamp change without optical debugging;

◆ Suspension optical design system, the overall optical path is independently fixed on the 8mm thick aviation aluminum optical base, and the deformation of the bottom plate and the external vibration have no impact on the optical system, so as to improve the stability and reliability of the instrument;

◆ Spectral scanning software of Yuanxi company can be selected to directly complete photometric measurement, quantitative testing, spectral scanning, kinetic testing, multi-wavelength testing, DNA/protein testing and data map processing;

◆ The software follows the use specifications of GLP/gmp laboratory, and has built-in perfect user management, logging, data storage traceability and report output functions;

◆ It is convenient to use automatic eight-cell racks, microcuvette racks, thermostatic automatic samplers, reflection accessories and other accessories, which expands the scope of use and application fields of the instrument.

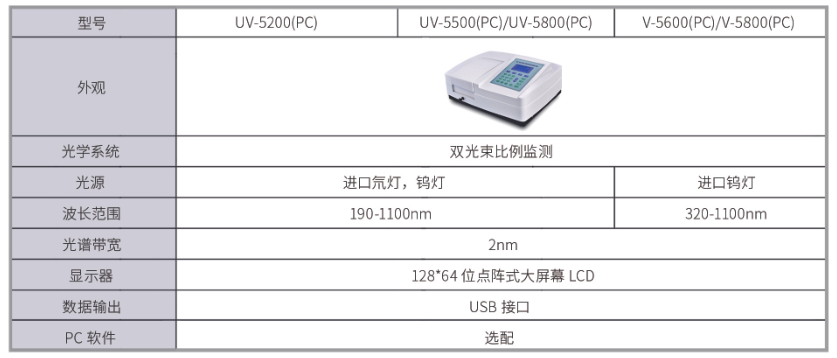

Comparison of series parameters

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
