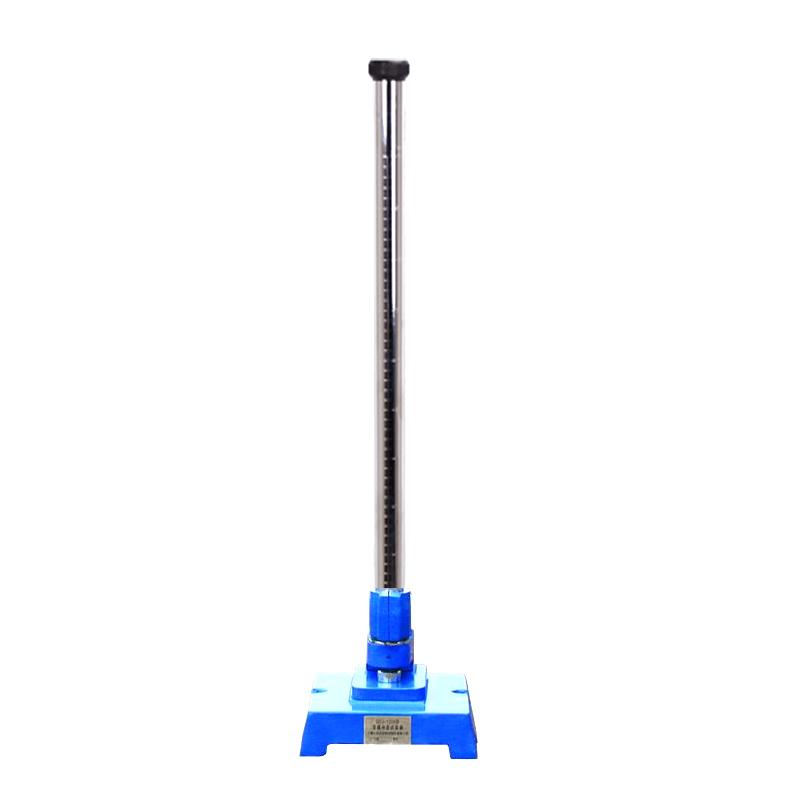

YONGLIDA QCJ-120B Paint Film Impact Device 120cm/2000g ASTM D2794
Impact height 120cm, sub-scale 1cm, drop weight mass 2000g, Striker Diameter φ 16mm, Impact depth 2.5mm, die base aperture φ 16.3mm, meeting the standard ASTM D 2794-92.
YongLiDa
QCJ-120B
QCJ-120A
QCJ-120
-
SHUCHANG ZM-JZL-5D Digital Display Simply Supported Beam Impact Tester
$ 1105.00 -
JFL QCJ-100 Film Impact 100cm/1000g
$ 278.00 -
JINGKELIAN QJL Impact Tester film impact test instrument 120cm GB/T1723 ASTM D2794/G14
$ 821.00 -
YONGLIDA TCJ Elastic Impact Tester 100cm ASTM D2794, ISO6272
$ 604.00 -
MODERNER ZCJ Heavy-duty impact Tester for impact testing and penetration testing of various coatings for construction
Login
Introduction
The QCJ-120 (120A, 1208) series paint film impactor is used for the impact resistance test of the film coating, which is represented by the maximum height of 120 cm when the weight of a fixed mass falls on the test plate without causing damage to the paint film. After the impact head of this instrument impacts the type plate, there is no secondary rebound phenomenon.
application standard
GB/T6287.4-2000 Aluminum alloy building profiles Part 4 Powder coating profiles.
QCJ-120 series parameter comparison
| model | QCJ-120 | QCJ-120A | QCJ-120B |
| Instrument scale length | 120±0.2cm | 120±0.2cm | 120±0.2cm |
| graduation | 1cm | 1cm | 1cm |
| Hammer mass | (1000±1) g | (1000±1) g | (2000±2) g |
| Impact head specification | sφ8mm | sφ16mm | sφ16mm |
| Pillow Block Hole Diameter | φ15mm | φ15mm | φ16.3mm |
| radius of curvature | R2.5-3mm | R2.5-3mm | R2.5-3mm |
| Impact depth of impact head | (2±0.1) mm | (2.5±0.1)mm | (2.5±0.1)mm |
| Standards | GB/T1732-93 Determination of impact resistance of paint film | GB/T5237.4-2000 Aluminum Alloy Architectural Profiles Part 4 Powder Coated Profiles | ASTM D2794-92 Test Method for Resistance of Organic Coatings to Rapid Deformation (Impact) Effects |
YongLiDa QCJ-120B Film Impact DeviceSpecifications
| LIST | VALUE |
|---|---|
| Impact height | 120cm |
| Graduation | 1cm |
| Drop Weight Mass | 2000g |
| Striker Diameter | F16mm |
| Impact depth | 2.5mm |
| die base aperture | F16.3mm |
| Standards | ASTM D2794-92 |
YongLiDa QCJ-120B Film Impact Device Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
