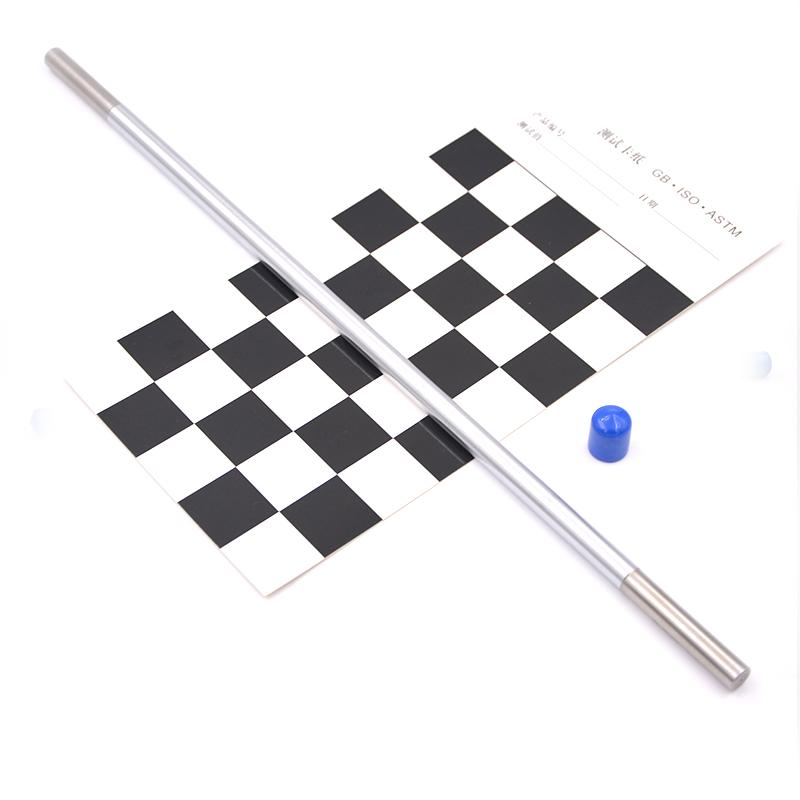

CCT CCT098-L0400 formed coating bar 98μm/400mm
D10-CCT098-L0400 formed coating bar is an experimental coating bar formed process, the application width 300mm, CCT098 for the preparation of 98um high-precision film, suitable for coatings, inks, Plastic film, printing/paper/Encasement, lithium batteries, New materials, etc.
CCT
D10-CCT098-L0400
-
Rod Type Wet Film Applicator Film thickness 200 μm Experimental Formed Scraper Bar
$ 110.00 -
UK RK KHC.10.0 coating rod WFT 4μm white rubber head No. 0 rod
$ 153.00 -
CHINA Applicator 180μm formed process Mayer Rods continuous wire easy to clean
$ 110.00 -
RDS 60 #1/2 "Steel Wire Drawdown Rod film thickness 137.2μm Wire diameter 1.52mm
$ 181.00 -
UK RK KHC.11.8 coating rod wet film thickness 100μm blue rubber head No. 8 rod
$ 168.00
CCT coating rod is a precision extrusion type laboratory scraping film metering coating rod, its product materials are imported from Germany, product research and development is positioned to provide higher precision coating experience than domestic (CN) low-end coating rods.
Benefits:High precision,No worries,Easy to clean
Application Industry:Coatings, inks, plastic films, printing/paper/packaging, lithium batteries, new materials, etc.
Product specifications: two different lengths are available: laboratory L400mm and L240mm
Serial models
| Model | Stick number | Wet film thickness | |
| 240L | 400L | （μm） | |
| D10-CCT004-L0240 | D10-CCT004-L0400 | CCT-04 | 04 |
| D10-CCT006-L0240 | D10-CCT006-L0400 | CCT-06 | 06 |
| D10-CCT008-L0240 | D10-CCT008-L0400 | CCT-08 | 08 |
| D10-CCT010-L0240 | D10-CCT010-L0400 | CCT-10 | 10 |
| D10-CCT012-L0240 | D10-CCT012-L0400 | CCT-12 | 12 |
| D10-CCT014-L0240 | D10-CCT014-L0400 | CCT-14 | 14 |
| D10-CCT016-L0240 | D10-CCT016-L0400 | CCT-16 | 16 |
| D10-CCT018-L0240 | D10-CCT018-L0400 | CCT-18 | 18 |
| D10-CCT020-L0240 | D10-CCT020-L0400 | CCT-20 | 20 |
| D10-CCT022-L0240 | D10-CCT022-L0400 | CCT-22 | 22 |
| D10-CCT024-L0240 | D10-CCT024-L0400 | CCT-24 | 24 |
| D10-CCT026-L0240 | D10-CCT026-L0400 | CCT-26 | 26 |
| D10-CCT028-L0240 | D10-CCT028-L0400 | CCT-28 | 28 |
| D10-CCT030-L0240 | D10-CCT030-L0400 | CCT-30 | 30 |
| D10-CCT032-L0240 | D10-CCT032-L0400 | CCT-32 | 32 |
| D10-CCT034-L0240 | D10-CCT034-L0400 | CCT-34 | 34 |
| D10-CCT036-L0240 | D10-CCT036-L0400 | CCT-36 | 36 |
| D10-CCT040-L0240 | D10-CCT040-L0400 | CCT-40 | 40 |
| D10-CCT044-L0240 | D10-CCT044-L0400 | CCT-44 | 44 |
| D10-CCT046-L0240 | D10-CCT046-L0400 | CCT-46 | 46 |
| D10-CCT048-L0240 | D10-CCT048-L0400 | CCT-48 | 48 |
| D10-CCT050-L0240 | D10-CCT050-L0400 | CCT-50 | 50 |
| D10-CCT052-L0240 | D10-CCT052-L0400 | CCT-52 | 52 |
| D10-CCT056-L0240 | D10-CCT056-L0400 | CCT-56 | 56 |
| D10-CCT060-L0240 | D10-CCT060-L0400 | CCT-60 | 60 |
| D10-CCT064-L0240 | D10-CCT064-L0400 | CCT-64 | 64 |
| D10-CCT068-L0240 | D10-CCT068-L0400 | CCT-68 | 68 |
| D10-CCT070-L0240 | D10-CCT070-L0400 | CCT-70 | 70 |
| D10-CCT072-L0240 | D10-CCT072-L0400 | CCT-72 | 72 |
| D10-CCT074-L0240 | D10-CCT074-L0400 | CCT-74 | 74 |
| D10-CCT076-L0240 | D10-CCT076-L0400 | CCT-76 | 76 |
| D10-CCT080-L0240 | D10-CCT080-L0400 | CCT-80 | 80 |
| D10-CCT084-L0240 | D10-CCT084-L0400 | CCT-84 | 84 |
| D10-CCT088-L0240 | D10-CCT088-L0400 | CCT-88 | 88 |
| D10-CCT094-L0240 | D10-CCT094-L0400 | CCT-94 | 94 |
| D10-CCT096-L0240 | D10-CCT096-L0400 | CCT-96 | 96 |
| D10-CCT098-L0240 | D10-CCT098-L0400 | CCT-98 | 98 |
| D10-CCT100-L0240 | D10-CCT100-L0400 | CCT-100 | 100 |
| D10-CCT110-L0240 | D10-CCT110-L0400 | CCT-110 | 110 |
| D10-CCT120-L0240 | D10-CCT120-L0400 | CCT-120 | 120 |
| D10-CCT130-L0240 | D10-CCT130-L0400 | CCT-130 | 130 |
| D10-CCT140-L0240 | D10-CCT140-L0400 | CCT-140 | 140 |
| D10-CCT150-L0240 | D10-CCT150-L0400 | CCT-150 | 150 |
| D10-CCT160-L0240 | D10-CCT160-L0400 | CCT-160 | 160 |
| D10-CCT170-L0240 | D10-CCT170-L0400 | CCT-170 | 170 |
| D10-CCT180-L0240 | D10-CCT180-L0400 | CCT-180 | 180 |
| D10-CCT190-L0240 | D10-CCT190-L0400 | CCT-190 | 190 |
Optional
|
|
|
CCT D10-CCT098-L0400 coating rodSpecifications
| LIST | VALUE |
|---|---|
| Production process | formed |
| WFT | 98μm |
| diameter | 10mm |
| Total length | 400mm |
| application width | 300mm |
| grip width | 50mm+50mm |
| material | 304 stainless steel |
CCT D10-CCT098-L0400 coating rod Packing list
Wire rod X1, Transparent Encasement hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
