LANDTEK VM-6380 VibratIon Meter

LANDTEK VM-6380 portable vibratIon Meter external probe, measurement Acceleration range is 0.1~ 400m/s ², VM-6380 portable vibratIon Meter uses high performance acceleration and AC signal output function.

LANDTEK VM-6380 VibratIon MeterKey Spec.

Displacement Measurement range
0.001~ 4.0mm Peak-Peak 0.04~ 160.0mil
Acceleration Measurement range
0.1~400m/s² 峰值0.3~1312ft/s² 0.0~40g
Speed Measurement range
0.01~ 400mm/s True RMS 0.004~ 16.0inch/s
VM-6380 VibratIon Meter
Details

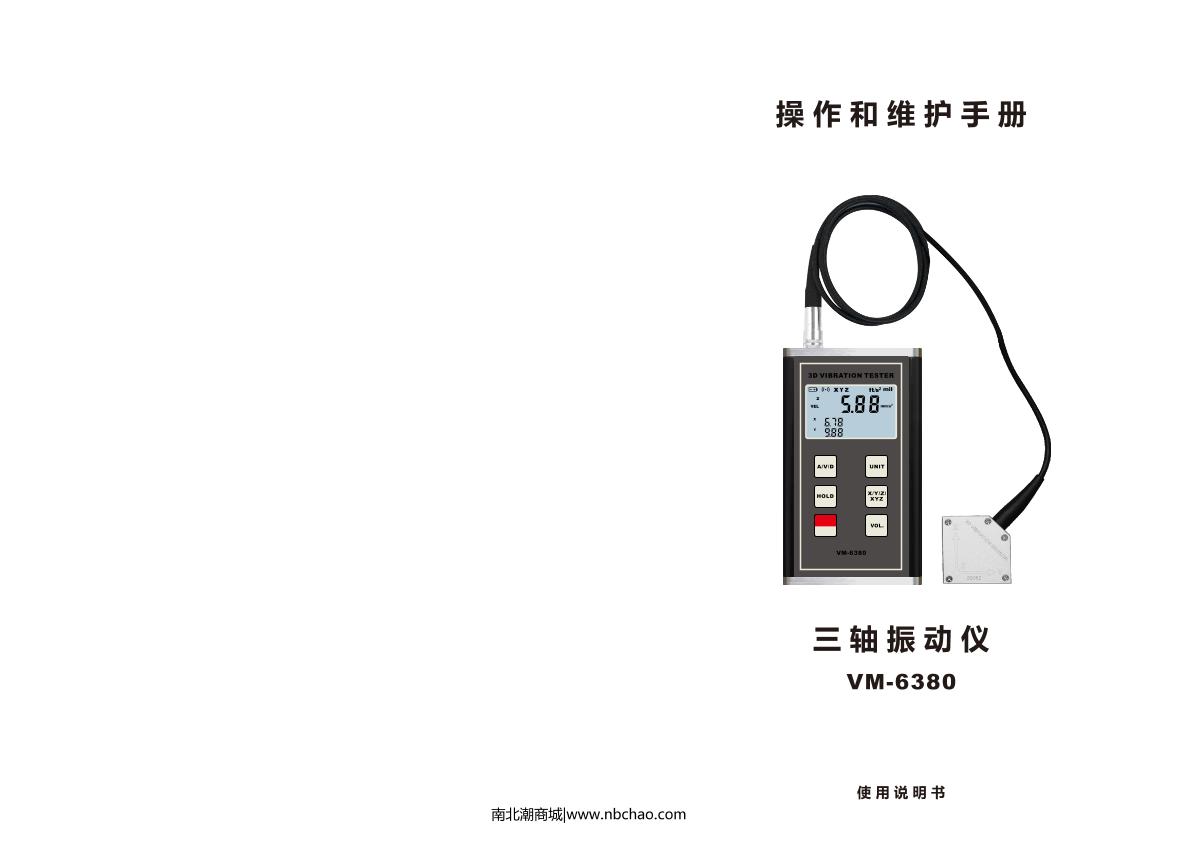

LANDTEK VM-6380 VibratIon MeterManual page 1

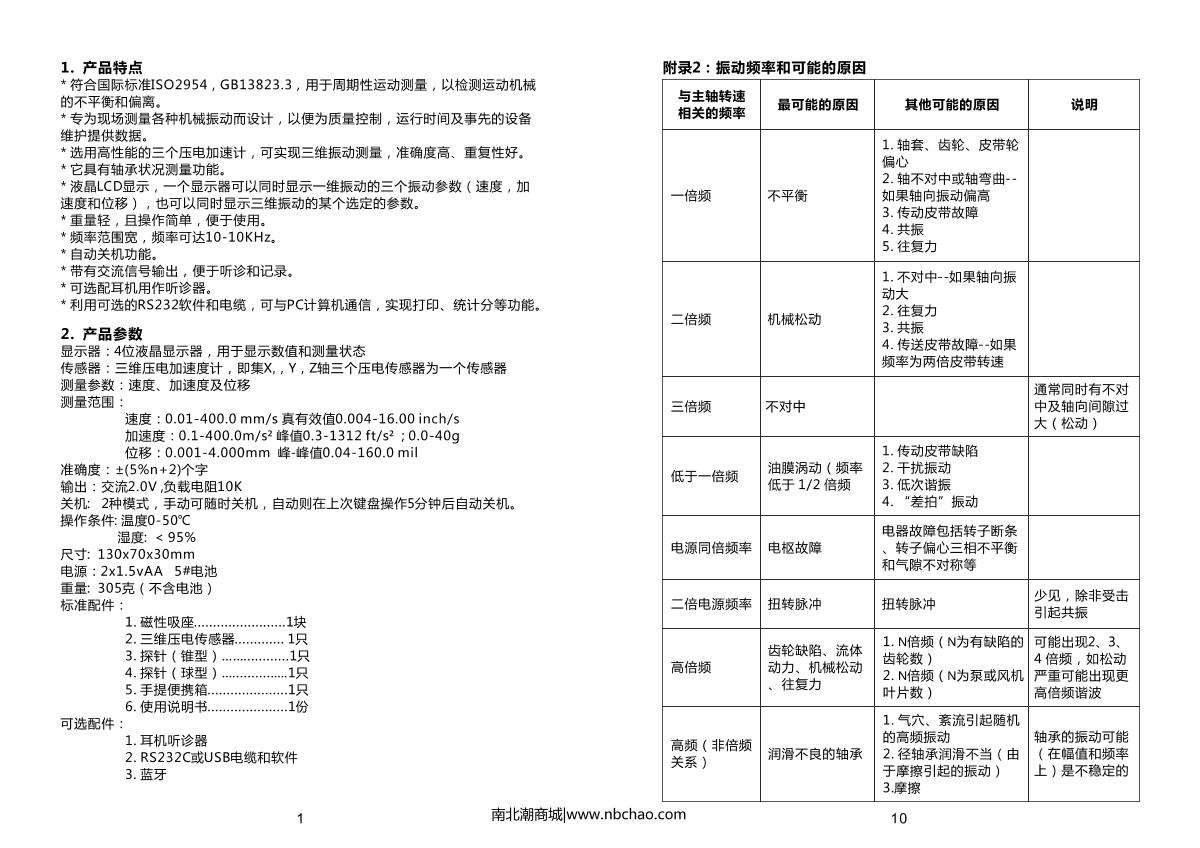

LANDTEK VM-6380 VibratIon MeterManual page 2

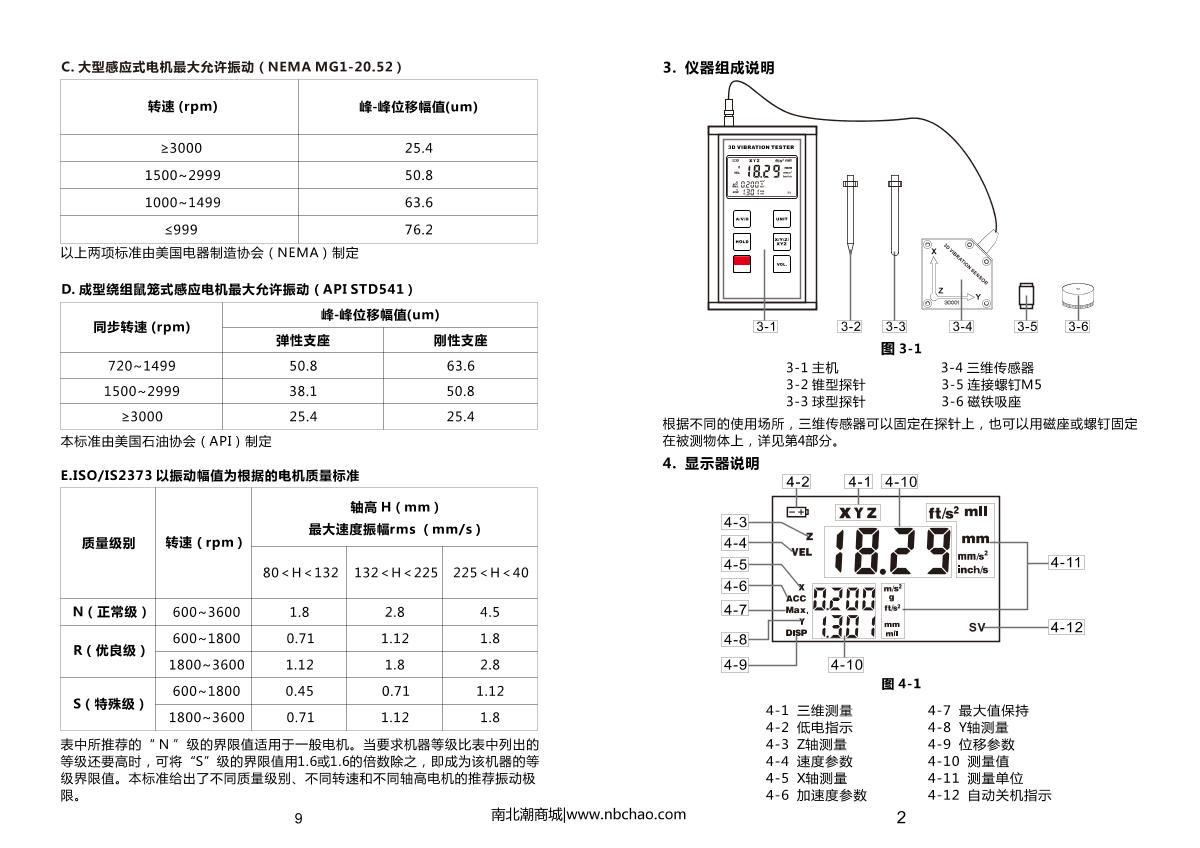

LANDTEK VM-6380 VibratIon MeterManual page 3

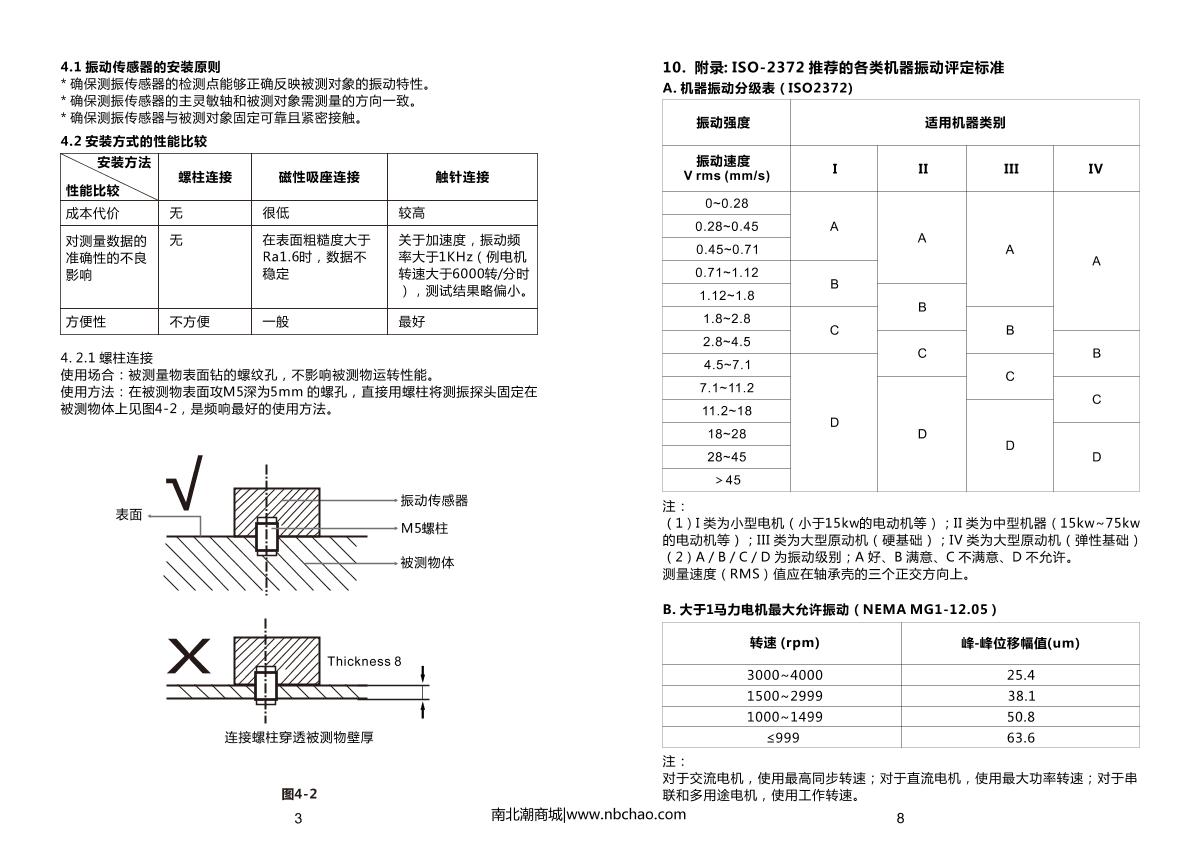

LANDTEK VM-6380 VibratIon MeterManual page 4
LANDTEK VM-6380 VibratIon MeterManual page 5
1 page unread, continue reading?
This manual is collected and sorted by the NBCLab, and does not guarantee the timeliness and accuracy. It is only for reference.
Continue to read
