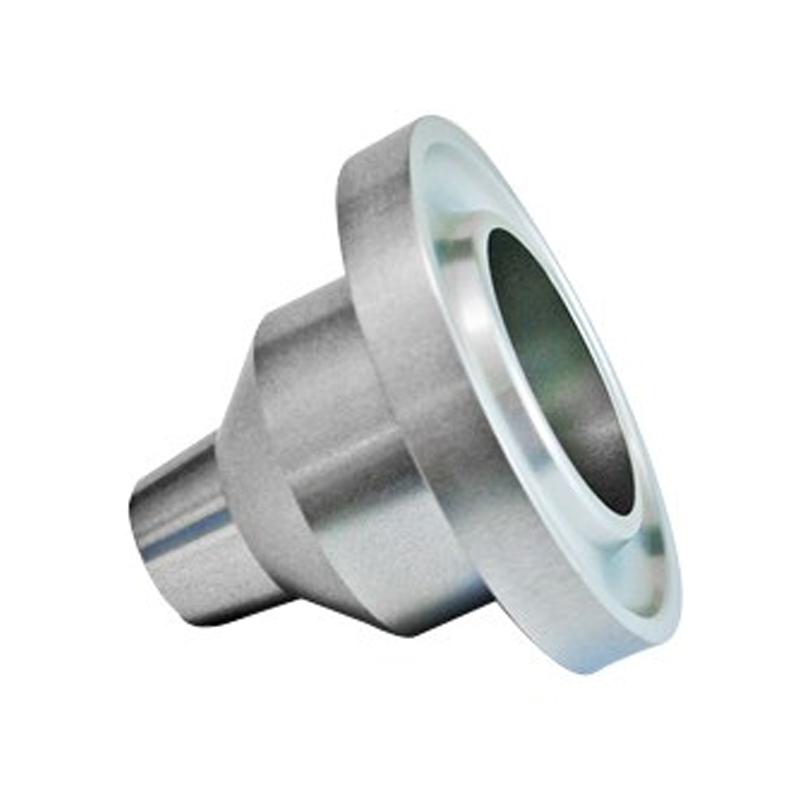

ERICHSEN 243/II-4mm Viscosity Cup
Viscosity range 90~682cSt, flow hole diameter 4mm, cup body material anodic oxidation aluminum, filter material stainless steel, Applicable standard DIN 53 211 SNV 37 110 SIS 184 115.
Erichsen
243/II-4mm
-
UK Sheen Ref. 406/5 Ford Viscosity Cup meets ASTM, BS, DIN, EN ISO standards
$ 187.00 -
Japan TOYO TOYO 4 #Viscosity Cup Zahn Viscosity Cup Zahn Cup zahn second measuring cup
$ 183.00 -
QND-4B coated 4 Viscosity Cups YONGLIDA Coating inks Aluminum coated 4 Viscosity Cups
$ 122.00 -
TRUIT TR 1005/4 DIN Viscosity Cup outflow aperture 4mm
$ 125.00 -
TQC VF2049 Coating Viscosity Cup ISO Flow Cup No. 4 with VF2061 bracket
$ 800.00
ERICHSEN243 Viscosity Cup measurement principle: Viscosity is calculated based on the time (measured in seconds) for a precisely controlled volume of fluid to flow out of the Viscosity Cup nozzle.
apply
The most important measuring instrument for simple and fast measurement of fluid viscosity in the laboratory and in production.
It has high accuracy for liquids that conform to Newton's laws, and is suitable for low-viscosity liquids, and is not suitable for high-viscosity substances such as pastes, pastes, etc.
ERICHSEN243 Viscosity Cup design description:
The Viscosity Cup consists of the upper cup cavity and the bottom nozzle. Excess fluid flows into the collection chute around the upper edge of the cavity. Generally, Viscosity Cups are made of anodized aluminum. The nozzle is made of stainless steel. Only the inexpensive 243/I cups are made of phenolic resin. However, the nozzle is still made of stainless steel.
Operating Principle:
* Negotiate the level with the level
*Place the Viscosity Cup on a lab rack or in a thermostatic bath
*Close the mouthpiece
* Fill with fluid
*Scrape the glass plate along the edge of the Viscosity Cup to scrape off excess fluid and cover the glass plate over the Viscosity Cup.
* Open the nozzle
*Remove the glass plate horizontally and start the stopwatch at the same time.
* When the flow of fluid is interrupted for the first time, stop the stopwatch timer and record the time.
Details are provided in each standard. Note: The Viscosity Cup is only calibrated within the specified range and at the specified time.
Serial models
Model | standard | Nozzle diameter | Measuring range (mm/s) |
243/I (Phenolic resin) | Quite DIN53211 standard | 2mm 4mm 6mm 8mm | 22-55 90-682 300-1200 500-2000 |
243/I (Aluminum anodizing) | Quite DIN53211 standard | 2mm 6mm 8mm | 22-55 300-1200 500-2000 |
243/II/4 (Aluminum anodizing) | DIN53211 SUV37110 SIS184115 | 4mm | 90-682 |
243/III (Aluminum anodizing) | ASTMD1200 | No.2 (2.5mm) No.3 (3.4mm) No. 4 (4.1mm) No. 5 (5.2mm) | 32-118 31-215 59-367 217-1185 |
243/VII (Aluminum anodizing) | ISO 2431 DIN EN ISO 2431 | 3mm 4mm 5mm 6mm | 8-42 34-135 91-325 188-684 |
Erichsen 243/II-4mm Viscosity CupSpecifications
| LIST | VALUE |
|---|---|
| Viscosity range | 90~682cSt |
| flow hole diameter | 4mm |
| Cup body material | Aluminum anodic oxidation |
| Filter material | stainless steel |
| Applicable standard | DIN 53 211 SNV 37 110 SIS 184 115 |
Erichsen 243/II-4mm Viscosity Cup Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
