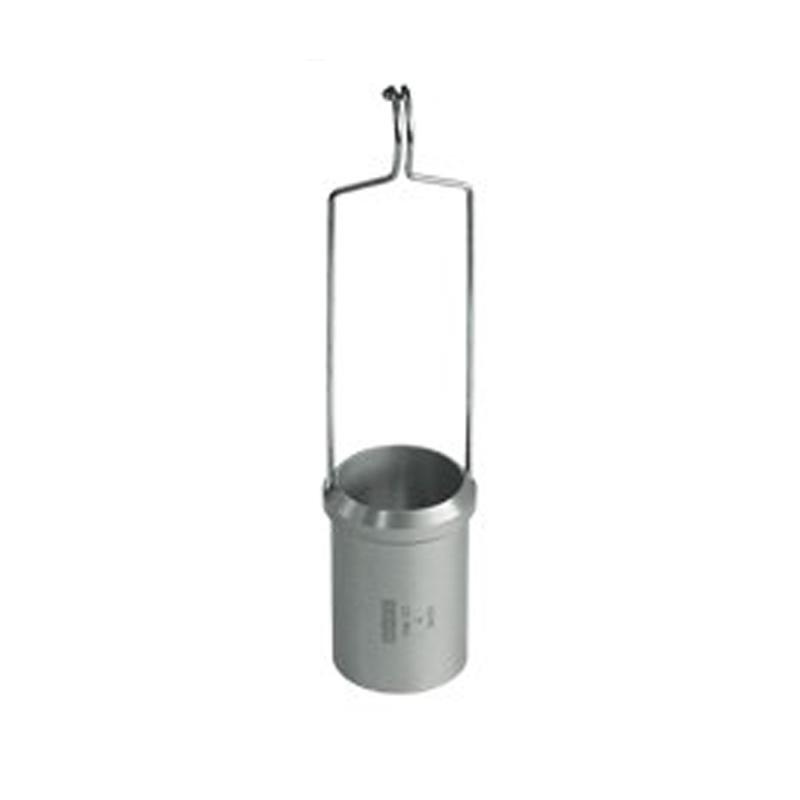

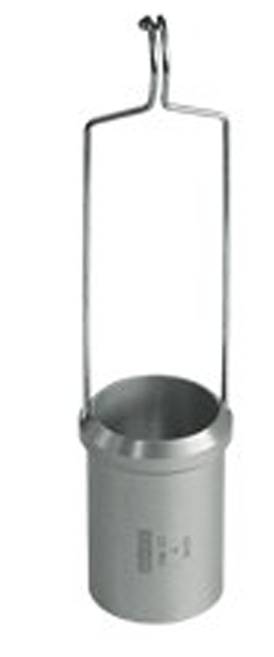

ERICHSEN322-4mm Viscosity Cup
Viscosity range 10~680cSt, flow hole diameter 8mm, cup body material aluminum, Applicable standard ISO 2431.
Erichsen
ERICHSEN322-4mm
-
TQC VF2028 Viscosity Cup filter, stainless steel 8mm
$ 145.00 -
JINGKELIAN ZND-1 No. 3, Zain Viscometer 100~800 cis Viscosity 3.76mm Diameter
$ 130.00 -
JINGKELIAN QND-4C Viscosity Cup measurement Coatings, paints and other viscosity Measurement range 10-150s viscosity
$ 136.00 -
TQC VF2004 DIN cup, aluminum alloy Viscosity Cup 8mm
$ 402.00 -
JINGKELIAN QNB No.4 ISO Flow Cup outflow time 30s ≤ t ≤ 100s diameter 4mm
$ 138.00
Introduction
Immersion cups are used to quickly determine the viscosity of various liquid materials, such as: Paints, greases, food, etc. Practitioners appreciate their merits. The viscosity of a substance is the amount of time it takes for a measured amount (100 cc) to flow from a beaker through a fixed-diameter nozzle. This flow time is determined by a stopwatch. ISO immersion cups are based on EN ISO 2431.
Ordering Information:
Model | standard | Nozzle diameter | Measuring range (mm/s) |
243/I (phenolic) | Quite DIN53211 standard | 2mm 4mm 6mm 8mm | 22-55 90-682 300-1200 500-2000 243/II |
243/I (Aluminum anodizing) | Quite DIN53211 standard | 2mm 6mm 8mm | 22-55 300-1200 500-2000 |
243/II/4 (Aluminum anodizing) | DIN53211 SUV37110 SIS184115 | 4mm | 90-682 |
243/III (Aluminum anodizing) | ASTMD1200 | No.2 (2.5mm) No.3 (3.4mm) No. 4 (4.1mm) No. 5 (5.2mm) | 32-118 31-215 59-367 217-1185 |
243/VII (Aluminum anodizing) | ISO 2431 DIN EN ISO 2431 | 3mm 4mm 5mm 6mm | 8-42 34-135 91-325 188-684 |
Erichsen ERICHSEN322-4mm Viscosity CupSpecifications
| LIST | VALUE |
|---|---|
| Viscosity range | 10~680cSt |
| flow hole diameter | 8mm |
| Cup body material | aluminum |
| Applicable standard | ISO 2431 |
Erichsen ERICHSEN322-4mm Viscosity Cup Packing list
Viscosity cup X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
