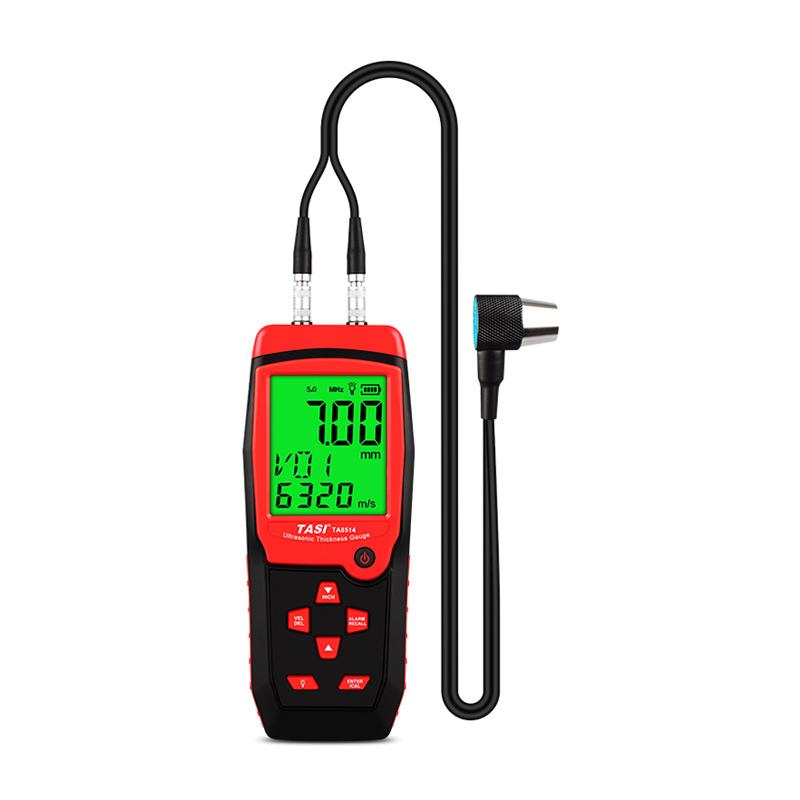

TASI /TASI TA8514 Ultrasonic Thickness Gauge
The measurement range of TASI TA8514 Ultrasonic Thickness Gauge is 1.0~300mm (steel), and the sound speed range is 1000-9999m/s. TA8514 is an Ultrasonic Thickness Gauge with auto calibration zero point function.
TASI
TA8514
-
Ultrasonic Thickness Gauge DC-5000 Deguang Electronics, suitable for ultra-thick organic material measurement
$ 2297.00 -
LANDTEK TM8811 Ultrasonic Thickness Gauge Suitable for metal, ceramic, hard Rubber & plastics, Glass and other hard materials
$ 304.00 -
Leeb321 Ultrasonic Thickness Gauge Resolution 0.1mm Sound Speed Range 1000~9999m/s
Login -
High-precision ultrasonic Thickness Gauge DC-6000 Deguang Electronics, suitable for high-precision measurement of ultra-thin parts
$ 2421.00 -
IPRE UT150 Ultrasonic Thickness Gauge measurement range 1~ 225mm
$ 234.00
Introduction
A gauge that measures the thickness of an object. It is commonly used in industrial production to continuously measure the thickness of products (such as steel plates, steel strips, paper, etc.). Among these instruments are radioThickness Gauges that use the penetrating characteristics of α-ray, β-ray, and γ-ray; There are ultrasonic Thickness Gauges that use ultrasonic frequency variations; There is an eddy current Thickness Gauge that uses the eddy current principle; There are also capacitive Thickness Gauges, etc. The use of microwave and laser technology to make Thickness Gauges is still in the development and testing stage.
TASI TA8514 Ultrasonic Thickness GaugeSpecifications
| LIST | VALUE |
|---|---|
| Measurement Range | 1.0~300Mm (steel) |
| Probe line length | Φ6mm 5MHz ; Φ10mm 5MHz |
| Lower limit of pipe measurement | φ 15 * 2.0mm (φ 6mm probe): φ 20 * 3.0mm (φ 10mm probe) |
| measurement error | ±(1%H±0.1)mm |
| Display resolution | 0.01mm |
| storage Capacity | 12 groups |
| Sound speed range | 1000~9999m/s |
| Ambient Operating Temperature | 0~40℃ |
| Power Supply | 3 AA batteries |
| Host size | 150*80.5*34mm |
| Weight | About 200g |
| probe frequency | 5MHz |
| Anti-measurement sound speed function | √ |
| Film thickness alarm | √ |
| Metric to British Conversion | √ |
| Low Voltage indication | √ |
| Automatic shutdown | √ |
| Zero proofreading | automatic |
| Coupling status hint | √ |
| Backlight function | √ |
TASI TA8514 Ultrasonic Thickness Gauge Packing list
Host x1, Manual x1, Encasement box
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
