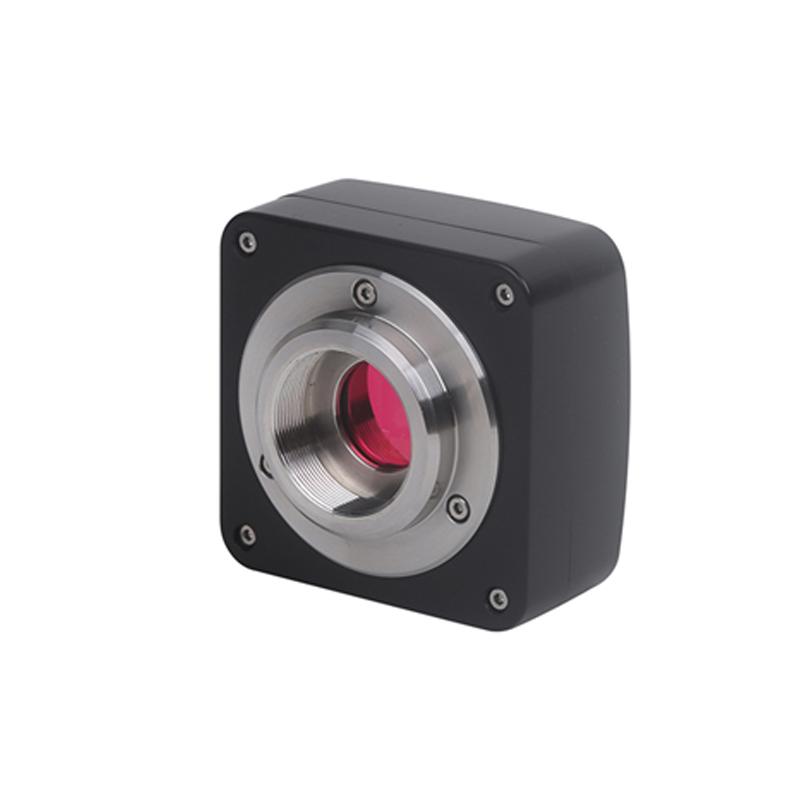

TEELEN UC1400 Microscope imagery camera

CMOS Camera Features

1. C-mount CMOS camera with Aptina CMOS sensor;

2. The resolution ranges from 0.35M to 14M;

3. Zinc-aluminum alloy precision die-casting shell

4. USB2.0 interface ensures high transfer rate;

5. Ultra-Fine color engine ensures accurate color reproduction;

6. Advanced video and image processing application software ToupView is provided with the camera;

7. Provide Windows/Linux/OSX multi-platform SDK;

8. Support native C/C++, C#, Directshow, Twain API;

Introduction to CMOS Camera

  UCMOS camera is an ultra-high performance USB2.0 and CMOS image sensor camera (ultra-high performance USB2.0 CMOS camera), using USB2.0 as the data transmission interface.

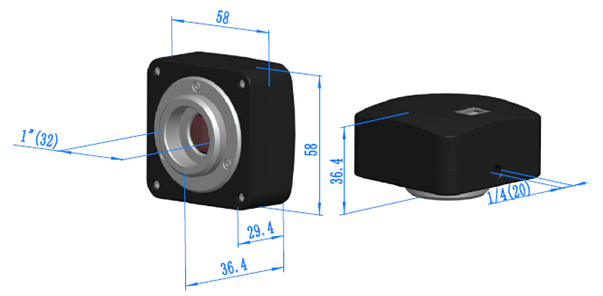

  Schematic diagram of UCMOS series C-mount USB2.0 CMOS camera dimensions (click to enlarge). The camera housing is machined from a rigid zinc-aluminum alloy to ensure shock in heavy-duty situations. The front end of the camera sensor is equipped with a high-quality IR-CUT, which mainly functions to filter out infrared light waves in imaging and protect the camera sensor at the same time. Compared with other industrial cameras, Tupu Optoelectronics' cameras have no moving parts to ensure that the cameras are solid, reliable and durable, and there is no imaging blur caused by shaking of moving parts.

host X1, operation manual X1, warranty card X1, certificate of conformity X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
