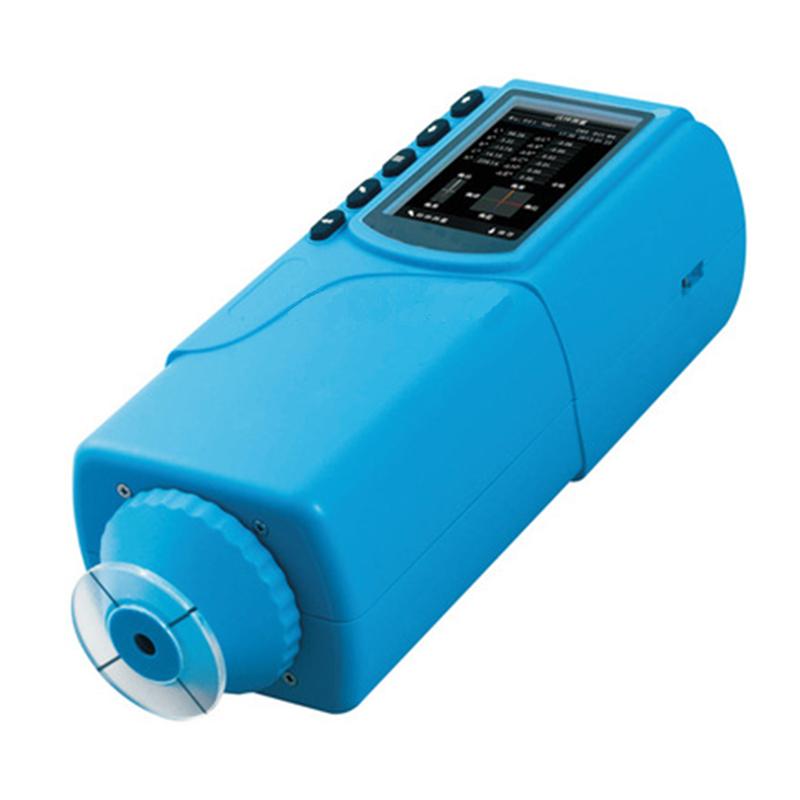

DONGRU DR100 economical Colorimeter
Measurement light source D65, measurement diameter φ 4mm, Repeatability short-term Repeatability accuracy ≤ 0.03Delta E * ab, suitable for Spinning & weaving, printing and dyeing, clothing, footwear, leather, chemical, plastic, plastic, pigment, paints, inks, printing, Hardware, photography, toys, food, and other industries Color quality control, color difference detection.
DongRu-
IWAVE WR18-40 precision Colorimeter 4mm/8mm/40mm three color difference measurement caliber
$ 1058.00 -
LS172 Handheld color difference meter Touchscreen color difference meter 3.5 inch IPS color screen
$ 225.00 -
CHINA LS177 Large aperture desktop spectroscopic Colorimeter Powder, Masterbatch Color detection
$ 1412.00 -
3NH NH300 Colorimeter 8mm caliber, suitable for plastics, clothing, products, inks, food, cosmetics, powder, etc
Login -
CHINA LS170 portable Colorimeter intelligent APP color difference Tester
$ 126.00
Introduction
DR100 Colorimeter is a precision instrument developed and produced according to the relevant standards and national standards of CIE (International Commission on Illumination). The Colorimeter adopts new imported key components, which are carefully designed and have the characteristics of precision and stability, simple operation, easy to learn and understand, and economical.
Scope of application
DR100 Colorimeter is suitable for color quality control and color difference detection in textile, printing and dyeing, clothing, footwear, leather, chemical, plastic, plastic, pigment, paint, ink, printing, hardware, photography, toys, food, and other industries.
Key Benefits:
1. Low price;
2. Higher short-term repeatability: ΔE≤0.03;
3. Dual positioning function of light and cross;
4. Equipped with rechargeable lithium-ion battery, no need to buy batteries repeatedly;
5. Φ4mm measuring aperture, portable structure, suitable for more measurement occasions;
6. Dark blue mainstream shape, fast packaging in color box, easy transportation;
7. Built-in whiteboard parameters, no need for black and white board correction;
8. No need to connect to the computer and use it right out of the box - make the measurement easier!
DongRu DR100 Economical ColoriMeterSpecifications
| LIST | VALUE |
|---|---|
| Lighting method | LED blue excitation |
| Sensors | Optical inspection diode array |
| Measurement light source | D65 |
| Measurement caliber | Φ4mm |
| Sexual repeability | Short-term repeability Accuracy ≤ 0.03Delta E * ab measurement white standard version 30 times average |
| color difference formula | ΔE*ab |
| data storage | 100 standards 10,000 samples |
| Power Supply | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Dimensions | 205*67*80mm |
| Weight | 500g |
| Measurement geometry | 8°/D |
| positioning method | Lighting positioning and cross positioning |
| Color Space | CIEL*a*b* |
DongRu DR100 Economical ColoriMeter Packing list
one color difference meter host (including battery); one charger, one manual, certificate of conformity, and one warranty card each
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
