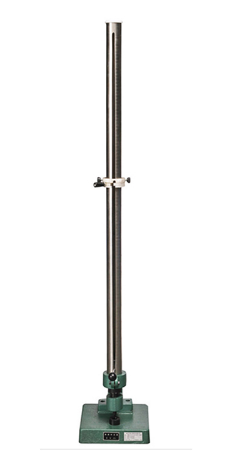

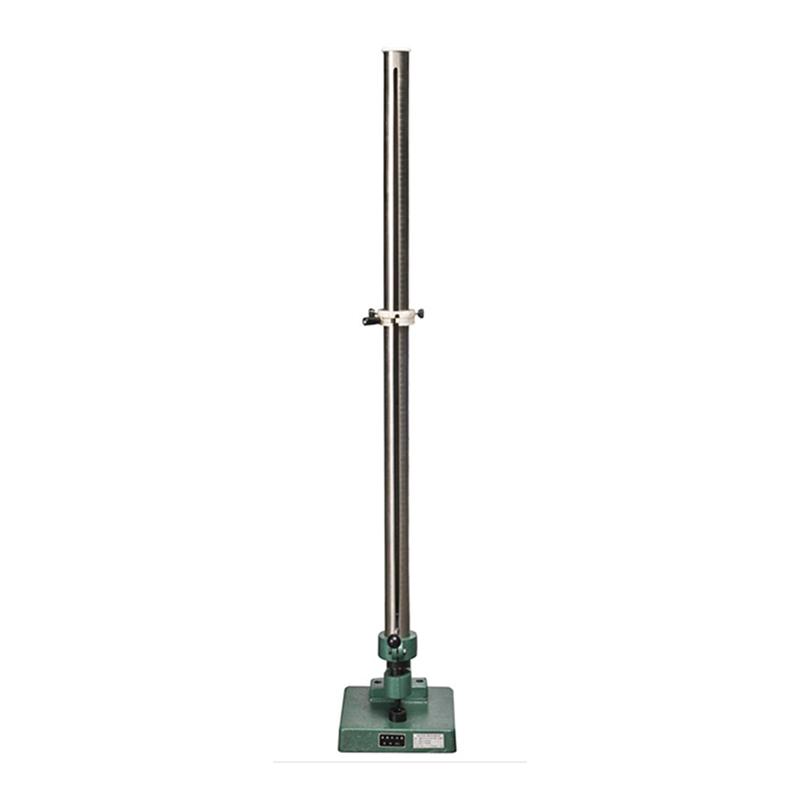

Xiangmin QCJ-120 QCJ Impact Tester 120cm
The impact height of Xiangmin QCJ-120 QCJ film Impact Tester is 120cm, the scale is 1cm, the drop weight mass is (1000 +/- 1) g, the impact head specification is φ 8mm, the impact depth is (2 +/- 0.1) mm, the diameter of the concave hole of the die base is 0019 15mm, and the radius of curvature is R2.5~ 3mm, which meets the standard GB/T1732-93.
xiangmin
QCJ-120
-
CHENCHI BCJ-01 Film Anti-pendulum Impact Meter Plastic film sheet, composite film
$ 1309.00 -
JFL QCJ-50 Film Impact 50cm/1000g
$ 222.00 -
CHENCHI MLQ-02 hard sheet falling ball impact test instrument 0-2mm
$ 1309.00 -
JINGKELIAN QJL Impact Tester film impact test instrument 120cm GB/T1723 ASTM D2794/G14
$ 821.00 -
Falling ball impact test instrument, Dutch TQC SP1891 standard ISO 6272-1 and ASTM D2794
$ 4545.00
use
QCJ Paint Film Impact Tester is used for paint film coating test on metal substrates, designed according to GB/T1732-93. The maximum height at which a fixed weight is dropped on the test plate at a certain height on the coating layer is observed to be the maximum height that does not cause damage to the coating film, expressed in kg.cm units.
xiangmin QCJ-120 QCJ Film Impact TesterSpecifications
| LIST | VALUE |
|---|---|
| Impact height | 120cm |
| Graduation | 1cm |
| Drop Weight Mass | 1000g |
| Striker Diameter | Φ8mm |
| Impact depth | 2mm |
| die base aperture | Φ15mm |
| radius of curvature | R2.5~3㎜ |
| Standards | GB/T 1732-1993 |
xiangmin QCJ-120 QCJ Film Impact Tester Packing list
whole machine X1, operation manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
