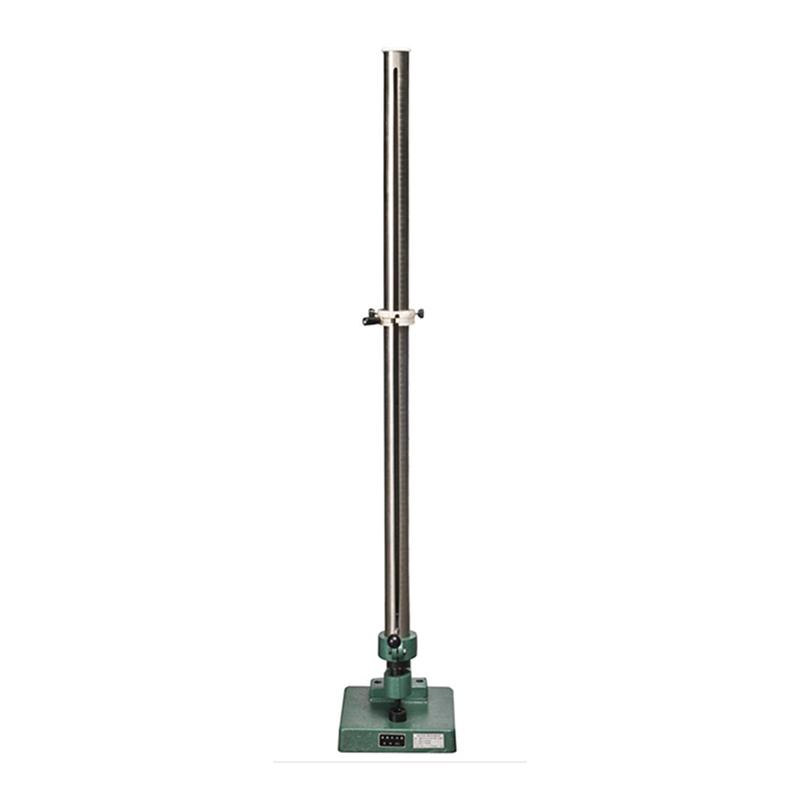

Xiangmin QCJ-100 QCJ Film Impact Tester 100cm

The impact height of Xiangmin QCJ-100 QCJ film Impact Tester is 100cm, the scale is 1cm, the drop weight mass is (1000 +/- 1) g, the impact head specification is φ 8mm, the impact depth is (2 +/- 0.1) mm, the diameter of the concave hole of the die base is φ 15mm, and the radius of curvature is R2.5~ 3mm, which meets the standard GB/T1732-93.

Brand

SKU: NB027645

xiangmin

Model

QCJ-100

Get Quote

xiangmin

Information

Datasheet Catalog

What else did others buy

YONGLIDA QCJ-120 Film Impact Device 120cm/1000g GB/T1732

$ 335.00
Impact Tester TQC SP1890 meets ISO 6272-1 standard

$ 3834.00
SHUCHANG ZM-JZL-5D Digital Display Simply Supported Beam Impact Tester

$ 1097.00
JINGKELIAN QJL Impact Tester film impact test instrument 120cm GB/T1723 ASTM D2794/G14

$ 815.00
JINGKELIAN QCJ-II Film Impact, Height 100cm

$ 254.00

Genuinegoods

xiangmin QCJ-100 QCJ Film Impact TesterOverview
Specifications
Comments
FAQs

QCJ-100

QCJ Film Impact Tester

use

QCJ Paint Film Impact Tester is used for paint film coating test on metal substrates, designed according to GB/T1732-93. The maximum height at which a fixed weight is dropped on the test plate at a certain height on the coating layer is observed to be the maximum height that does not cause damage to the coating film, expressed in kg.cm units.

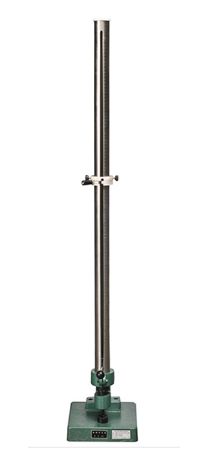

Xiangmin Instrument QCJ-100 QCJ Paint Film Impact Tester Details Figure 1

xiangmin QCJ-100 QCJ Film Impact TesterSpecifications

LIST	VALUE
Impact height	100cm
Graduation	1cm
Drop Weight Mass	1000g
Striker Diameter	Φ8mm
Impact depth	2mm
die base aperture	Φ15mm
radius of curvature	R2.5~3㎜
Standards	GB/T 1732-1993

xiangmin QCJ-100 QCJ Film Impact Tester Packing list

whole machine X1, operation manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
