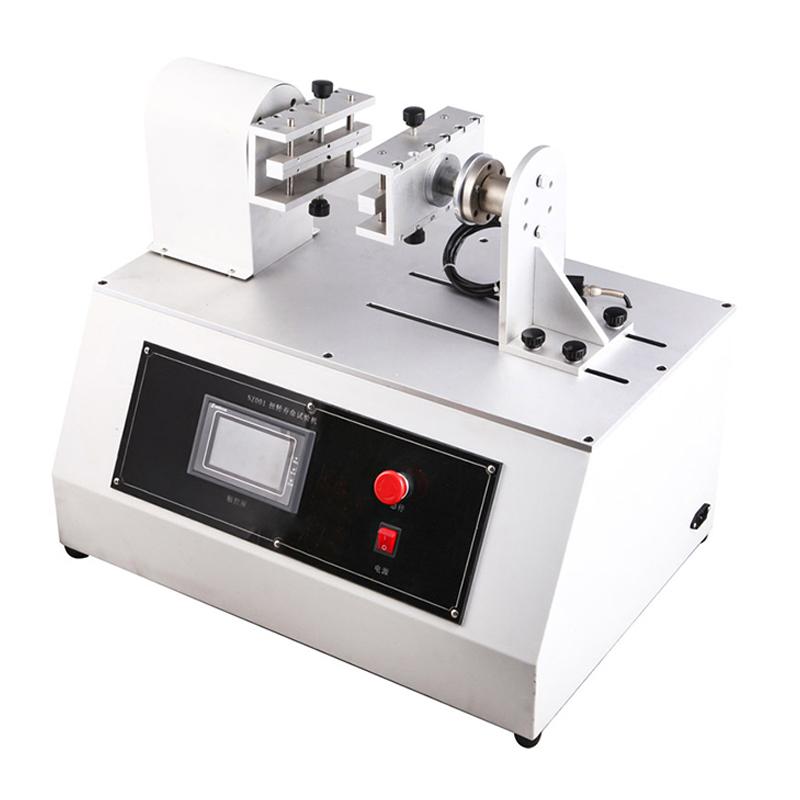

Xiangmin XM-NZ001 Mobile phone torsion Life Cycle Tester
The drive servo motor of Xiangmin XM-NZ001 mobile phone torsion Life Cycle Tester, the torsion angle can be set from 0 to 360 °, the torque is 0~10N.m +/- 0.5% FS, the Test speed is 0~40 times/min, the residence time is 0~999S (preset), the number of times is 1~ 999999 times, and the torque retention time is 0~999S.
xiangmin
XM-NZ001
-
HBO ZTD-50 Desktop Microcomputer Controlled Spring Tension and Compression Tester, Range 50N
$ 3243.00 -
CHINA NBC-1021 Touch screen single column Tensile Strength Tester 100KG
$ 1139.00 -
CHINA NBC-1021 Touch screen single column Tensile Strength Tester 5KG
$ 1160.00 -
Haibao XYD-3T small gantry microcomputer-controlled universal testing machine, measuring range 30KN/3000KG
$ 3708.00 -
BaidaJUSHI LY-7012A Small Tensile Testing Machine 200KG
$ 1011.00
Introduction
XM-NZ001 Torsion Tester/Torsion Life Tester is suitable for twist test of mobile phones and tablet computers to test the anti-twisting performance of mobile phone shells and internal structures
Features
Using LCD touch screen + PLC for twist program control, Chinese interface, easy to operate;
Driven by servo motor, accurate positioning, stable torque output and low noise;
High-precision torque sensor is used to measure torque, with high precision;
Special adjustable grips, which can quickly clamp the specimen for testing;
The preset torque is the main parameter, and the angle is the auxiliary parameter. Reverse rotation when reaching the set torque, preset angle limit, reverse rotation when reaching the set angle to reach the set torque, double insurance.
xiangmin XM-NZ001 Mobile phone torsion Life Cycle TesterSpecifications
| LIST | VALUE |
|---|---|
| Drive mode | Servo motor |
| torsion angle | 0-360 ° can be set |
| torque | 0~10N.m±0.5%FS |
| Test speed range | 0~40 times/min |
| residence time | 0~999S (preset) |
| number of times | 1~ 999999 times |
| Torque hold time | 0~999S can be set |
| Dimension | W600*D550*H400mm |
| Weight | 35kg |
| Power supply Voltage | AC220V, 50Hz 3A or specified |
xiangmin XM-NZ001 Mobile phone torsion Life Cycle Tester Packing list
whole machine X1, operation manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
