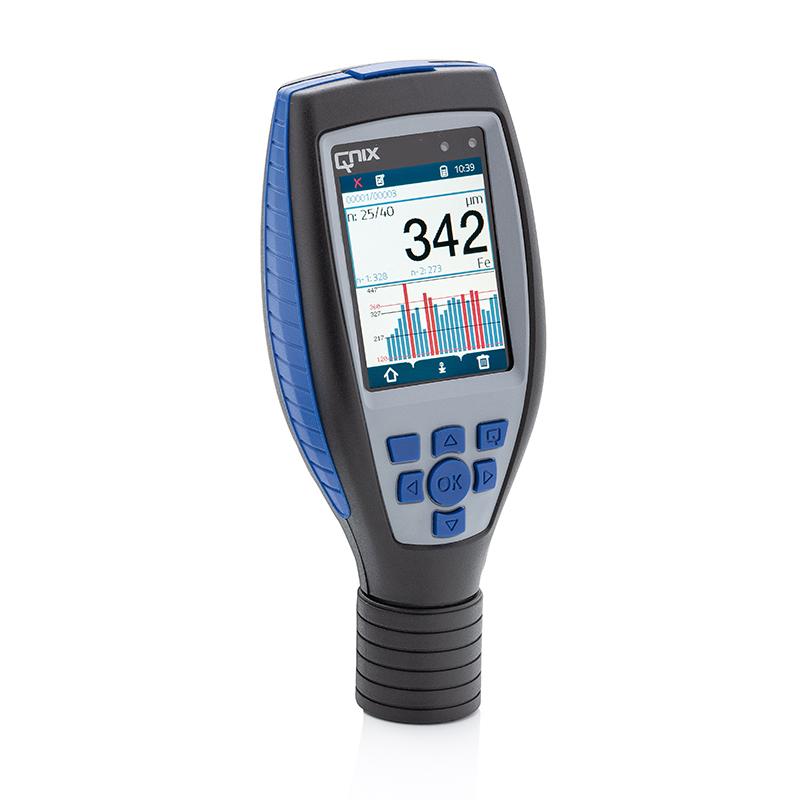

QNix 9500Pro Cladding Thickness Gauge Magnetic Induction Built-in Probe 3000μm

QNix9500, rugged, user-friendly interface, reliable quality, multi-purpose and high precision.

QNix9500 has considerable characteristics for the quality control of product production in the process of industrial anti-corrosion, spraying, and surface treatment, whether in compliance with standards or technical parameters. The newly developed QNix9500 PC software enables faster and more efficient management of documentation and inspection reports than ever before. Every QNix9500 is manufactured entirely in Germany.

Compared with the basic type Thickness Gauge, the enhanced Thickness Gauge adds independent and independent calibration in terms of calibration, with 10 groups of calibration value memory function, continuous measurement mode and pin code protection function. In addition, the measurement can be triggered by pressing a button, and the probe can be placed on the surface of the workpiece for a delayed measurement.

Features

1. High-precision measurementEnsure that the quality results are effective

• High-precision measurement in the full range

• High repeatability of measurement results

• Temperature compensation in the probe

• Guaranteed measurement accuracy on curved surfaces and small workpieces

• Easy indexing on rough, smooth, and curved substrates

2. Solid and durable protectionLong-term use under the conditions of satisfying the evil strategy

• Fiberglass included, consisting of 5 components in accordance with IP64

• Waterproof and light-proof

• Three layers of shock protection

• LCD window glass is scratch and chemical resistant (H6 rating)

• Operating temperature -20°C-70°C

• Stainless steel probe with dust film

3. The use of ergonomic design to save time, can be used quickly and continuously without fatigue

• Overrun indicator, LED directly on the LCD and probe

• High-brightness 24-inch LCD, which can be viewed at a 70° angle

• Adjust the brightness of the LCD automatically or manually under sunlight to the best effect display

• Large tactile buttons and low weight medium

• Flip display 0°, 90°, 180°, 270°

4. Flexibility and scalability

• The main machine can be adapted to Fe (iron-based), NFe (non-iron-based),Fe/NFe (iron-based/non-iron-based) dual-purpose probes

• The main unit can be adapted to other types of probes

• Can be equipped with both integrated and split probes

• Quick and easy plug-and-play probe replacement

• Rapid adaptation to meet different needs

5. Friendly interface that is easy for users to understand, intuitive and operable, saving time and money

• Simple calibration for standard use

• The host and PC software are guided by intuitive menus, and the report can be reached in three steps

• Customizable keys for quick and direct single operation 

• Pre-configured as standard

Diagram of the display

QNIX9500 Thickness Gauge Specification Drawing

QNix9500Pro host, 1 zero adjustment board, 1 standard piece, factory test report, instruction manual, 2 1.5V AA alkaline batteries, plastic instrument case

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
