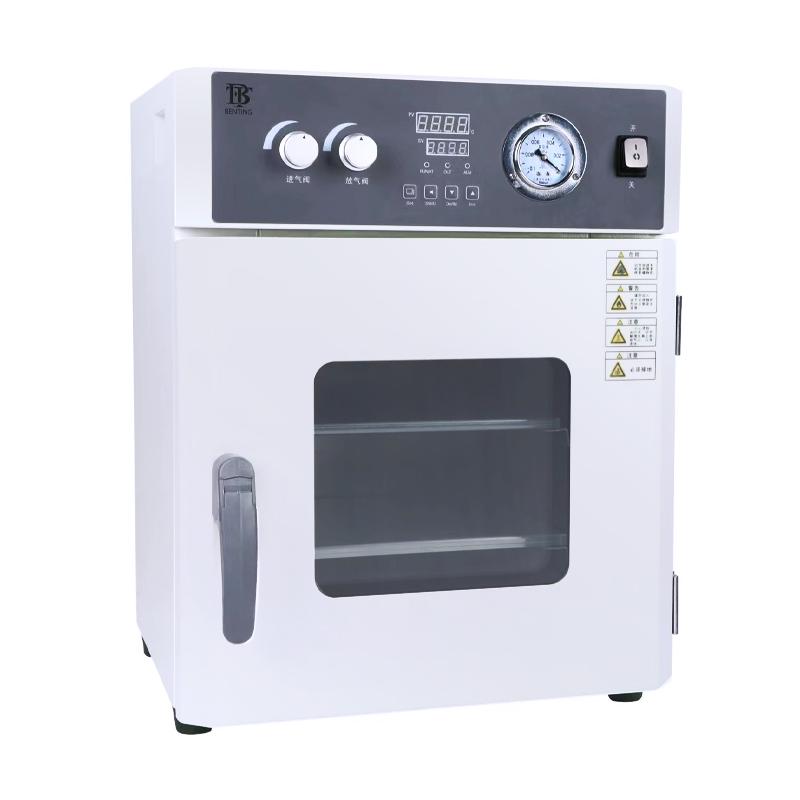

BENTING CBZ-2BCII Vacuum Oven Standard type 250 ℃/52L
BENTING CBZ-2BCII Vacuum Oven has a temperature control of 250 ℃ and a power of 1400w. It is an experimental Vacuum Oven. The Interior size of CBZ-2BCII is 415 × 370 × 340mm and is made of stainless steel.
BenTing-
Kenton 101-4 pointer electric blast oven 640L with independent temperature limiter
$ 714.00 -
YIHENG BPZ-6063 Vacuum oven stainless steel vacuum chamber Temperature Fluctuation +/- 1 ℃
$ 1977.00 -
MODERNER GFX-9070A Forced Air Drying Oven 70L
Login -
HUITAI HHG-9248A high temperature blast dryer, volume 240L with test hole 50mm
$ 1642.00 -
YIHENG BPG-9106A Precision Forced Air Drying Oven Input Power 1300w desktop LCD screen
$ 773.00
Overview
Widely used in food, light industry, chemical industry, agricultural scientific research, environmental protection and other experimental fields for powder drying, baking and disinfection and sterilization of various glass containers. The vacuum Drying Oven has the advantages of fast drying speed, little pollution, and no damage to the internal quality of the dried items. The vacuum Drying Oven is specially designed for drying heat-sensitive, easily decomposed, and easily oxidized substances. It can be filled with inert gas inside, especially some items with complex components can also be dried quickly.
Features
1. The shell is made of high-quality cold-rolled steel plate, and the surface is treated by electrostatic spraying process .
2. The temperature control adopts microcomputer single-chip microcomputer technology, and has the function of temperature control timing over-temperature alarm.
3. Double-screen high-brightness digital tube display, accurate and intuitive indication, superior performance, touch buttons to set and adjust parameters.
4. The tightness of the door closure can be adjusted by the user. The glass inside the door is made of high-quality tempered glass with high explosion-proof performance. The high-temperature-resistant silicone rubber sealing strip ensures that the vacuum in the box can be maintained for a long time.
5. Optional gas filling port is convenient for supplementing inert gas.
Selection table
| model | Power consumption | studio size |
| CBZ-1AⅡ | 800 | 300×300×270 |
| CBZ-2AⅡ | 1400 | 415×370×340 |
| CBZ-3AⅡ | 2000 | 450×450×450 |
| CBZ-1BCⅡ | 800 | 300×300×270 |
| CBZ-2BCⅡ | 1400 | 415×370×340 |
| CBZ-3BCⅡ | 2000 | 450×450×450 |
| Unit: W, mm | ||
| Other parameters | ||
| Voltage | 220V/50HZ | |
| Temperature control range | RT+10-250℃ | |
| Constant temperature fluctuation | ±1% | |
| temperature resolution | 0.1°C | |
| Vacuum | <133Pa | |
BenTing CBZ-2BCII Vacuum OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~250°C |
| Temperature fluctuation | ±1% |
| Temperature Resolution | 0.1℃ |
| Volume | 52L |
| Interior size | 415*370*340mm |
| Inner chamber material | stainless steel |
| vacuum | <133Pa |
| Power | 220V/50HZ |
| Input power | 1400W |
| Dimensions | 560*540*680mm |
| Net Weight | 75kg |
| Enclosure Material | Cold rolled steel plate |
| Packing size | 730*640*790mm |
| Gross Weight | 92Kg |
BenTing CBZ-2BCII Vacuum Oven Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
