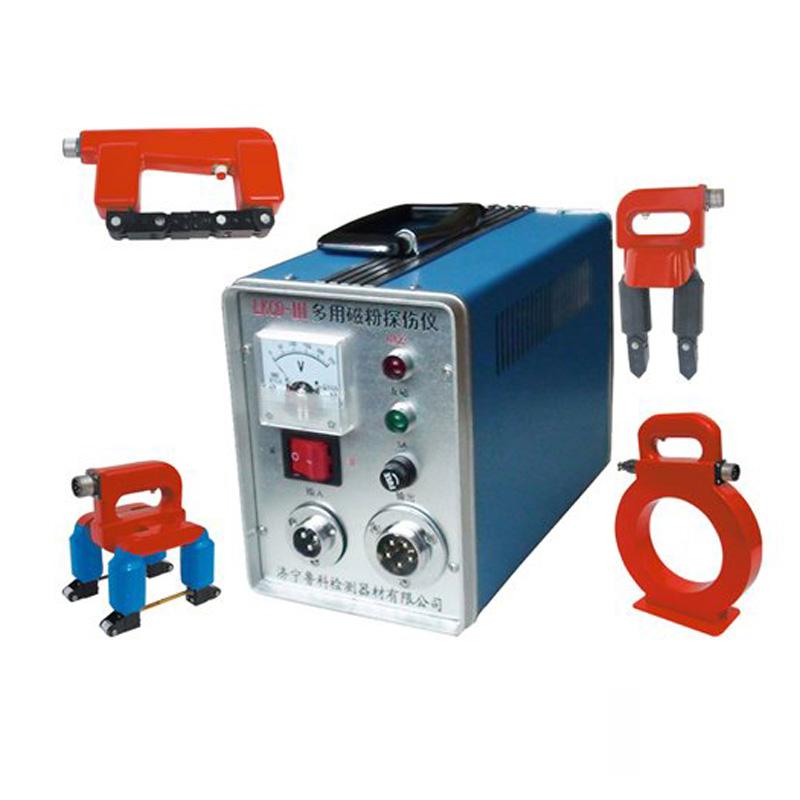

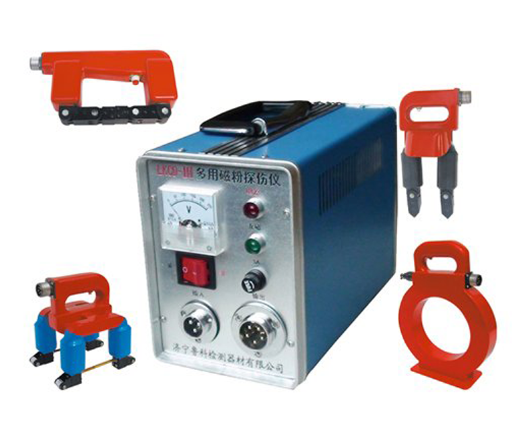

LUKE CDX-I Portable Magnetic Particle Flaw Detector
The Sensitivity of LUKE v Portable Magnetic Particle Flaw Detector can clearly and completely display the grooves on the A-type (15/100) standard test piece. The CDX-I Portable Magnetic Particle Flaw Detector uses a variety of magnetization methods, and the highly integrated circuit allows one device to have all the functions of the original several devices.
LUKE
CDX-I
-
RUNJIE RJTS800S digital Ultrasonic Flaw Detector, Speed of sound 1000~9999m/s
$ 1604.00 -
MITECH MUT520B Ultrasonic Flaw Detector, all-digital portable Detector 6m range
$ 1618.00 -
LEEB leeb530 Digital Ultrasonic Flaw Detector Zero interface incidence 0~1000mm
$ 3197.00 -
WENTAI FET-99S Intelligent digital eddy current Flaw Detector with installation training
$ 7174.00 -
LEEB leeb520 Ultrasonic Flaw Detector, industrial Ultrasonic Flaw Detector
$ 2565.00
Features
Features CDX-I magnetic particle flaw Detector adopts a variety of magnetization methods, and the highly integrated circuit makes one device have all the functions of the original equipment.
LUKE CDX-I Portable Magnetic Particle Flaw DetectorSpecifications
| LIST | VALUE |
|---|---|
| feature | Adopting a variety of magnetization methods and highly integrated circuits, one device has all the functions of the original devices |
| Power Supply | AC 220V |
| Operating Voltage of probe | AC36V |
| Sensitivity | It can clearly and completely display the grooves on the A-type (15/100) standard test piece |
| lifting force | Horseshoe (type A) probe > = 6kg, electromagnetic yoke (type D) probe > = 6kg, DC 36kg, swirl/spin magnetic field (type E) probe > = 12kg, ring (type O) probe 1800TA |
| Optional probe | A，D，O |
| Host Weight | 5Kg |
| Dimension | 230*120*150mm |
| Operating current of probe | 12A |
LUKE CDX-I Portable Magnetic Particle Flaw Detector Packing list
The whole machine x1, the operation manual x1, and the certificate of conformity x1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
