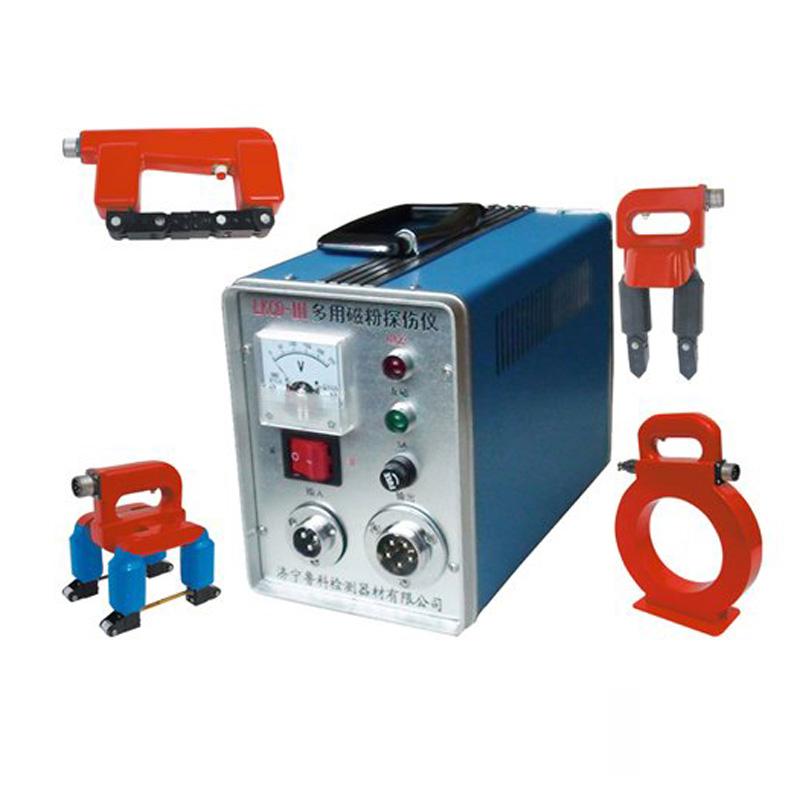

LUKE CDX-III Portable Magnetic Particle Flaw Detector
The LUKE CDX-III Portable Magnetic Particle Flaw Detector adds swirl/spin magnetic field function to fully display workpiece defects. The CDX-III Portable Magnetic Particle Flaw Detector's probe Operating Voltage and current are AC36V, 8~ 12A.
LUKE
CDX-III
-
IPRE UF200 Ultrasonic Flaw Detector, non-Destructiveness detection 120dB gain
$ 1841.00 -
WENTAI HY-30 Ultrasonic Flaw Detector DAC Linear dispersion automatically generates 6 meters range
$ 2076.00 -
WENTAI FET-99S Intelligent digital eddy current Flaw Detector with installation training
$ 7119.00 -
MITECH CDX-ⅲ Magnetic Particle Flaw Detector Multifunctional Magnetic Particle Flaw Detector Defect Detection
$ 413.00 -
LEEB leeb530 Digital Ultrasonic Flaw Detector Zero interface incidence 0~1000mm
$ 3172.00
Features
The CDX-III multi-purpose magnetic particle flaw Detector uses thyristors to form contactless electronic circuits, which is convenient and safe to operate. In addition to the optional A, D, E, O probes, the rotating magnetic field function is added, which can comprehensively display the defects of the workpiece. The crack display of the probed workpiece is clear and reliable.
LUKE CDX-III Portable Magnetic Particle Flaw DetectorSpecifications
| LIST | VALUE |
|---|---|
| feature | Added swirl/spin magnetic field function to fully display workpiece defects |
| Power Supply | AC 220V |
| Operating Voltage of probe | AC36V |
| Sensitivity | It can clearly and completely display the grooves on the A-type (15/100) standard test piece |
| lifting force | Horseshoe (type A) probe > = 6kg, electromagnetic yoke (type D) probe > = 6kg, DC 36kg, swirl/spin magnetic field (type E) probe > = 12kg, ring (type O) probe 1800TA |
| Optional probe | A，D，E，O |
| Host Weight | 5.5kg |
| Dimension | 230*120*150mm |
| Operating current of probe | 8~12A |
LUKE CDX-III Portable Magnetic Particle Flaw Detector Packing list
The whole machine x1, the operation manual x1, and the certificate of conformity x1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
