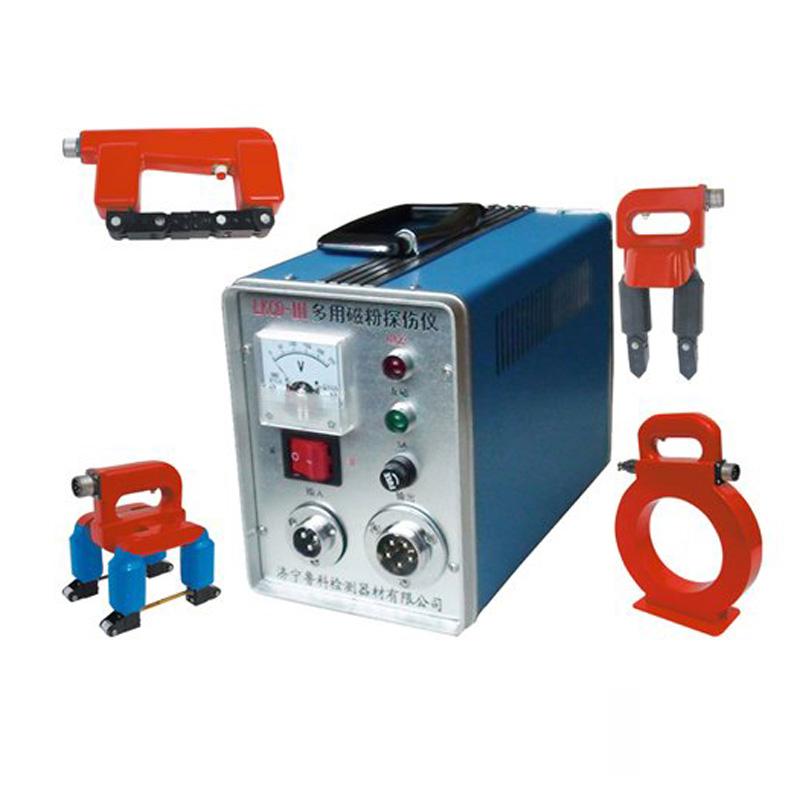

LUKE CDX-IV Portable Magnetic Particle Flaw Detector
LUKE CDX-IV Magnetic Particle Flaw Detector is a portable Magnetic Particle Flaw Detector with some of the advantages of mobile models, expanding the use and simplifying the operation. The CDX-IV Magnetic Particle Flaw Detector is available with optional A, D, E, O probes.
LUKE
CDX-IV
-
LEEB leeb520 ultrasonic flaw detection (UFD) instrument, industrial ultrasonic flaw detection (UFD) instrument
$ 2527.00 -
MITECH CDX-ⅲ Magnetic Particle Flaw Detector Multifunctional Magnetic Particle Flaw Detector Defect Detection
$ 410.00 -
WENTAI FET-99S Intelligent digital eddy current Flaw Detector with installation training
$ 7066.00 -
KAIRDA NDT680 digital ultrasonic flaw detection (UFD) instrument nondestructive detection 500 sets of configuration channels
$ 1470.00 -
LEEB leeb500 ultrasonic flaw detection (UFD) instrument Scanning range 0~6000mm Automatic calibration probe
$ 1129.00
Features
CDX-IV magnetic particle multi-purpose flaw Detector is a magnetic particle flaw detection equipment with three magnetization modes: rotary, AC and DC, the instrument adopts thyristor as a contactless switch, with low noise, long life, simple operation, strong adaptability and stable operation. In addition to all the advantages of a portable model, it also has some advantages of a mobile model, expanding its versatility and simplifying operation.
LUKE CDX-IV Portable Magnetic Particle Flaw DetectorSpecifications
| LIST | VALUE |
|---|---|
| feature | With swirl/spin, AC, DC three magnetization mode, using thyristor as touchpoint switch |
| Power Supply | AC 220V |
| Operating Voltage of probe | AC36V DC8V |
| Sensitivity | It can clearly and completely display the grooves on the A-type (15/100) standard test piece |
| lifting force | Horseshoe (type A) probe > = 6kg, electromagnetic yoke (type D) probe > = 6kg, DC 36kg, swirl/spin magnetic field (type E) probe > = 12kg, ring (type O) probe 1800TA |
| Optional probe | A，D，E，O |
| Host Weight | 6.5Kg |
| Dimension | 265*140*170mm |
| Operating current of probe | 8~12A |
LUKE CDX-IV Portable Magnetic Particle Flaw Detector Packing list
The whole machine x1, the operation manual x1, and the certificate of conformity x1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
