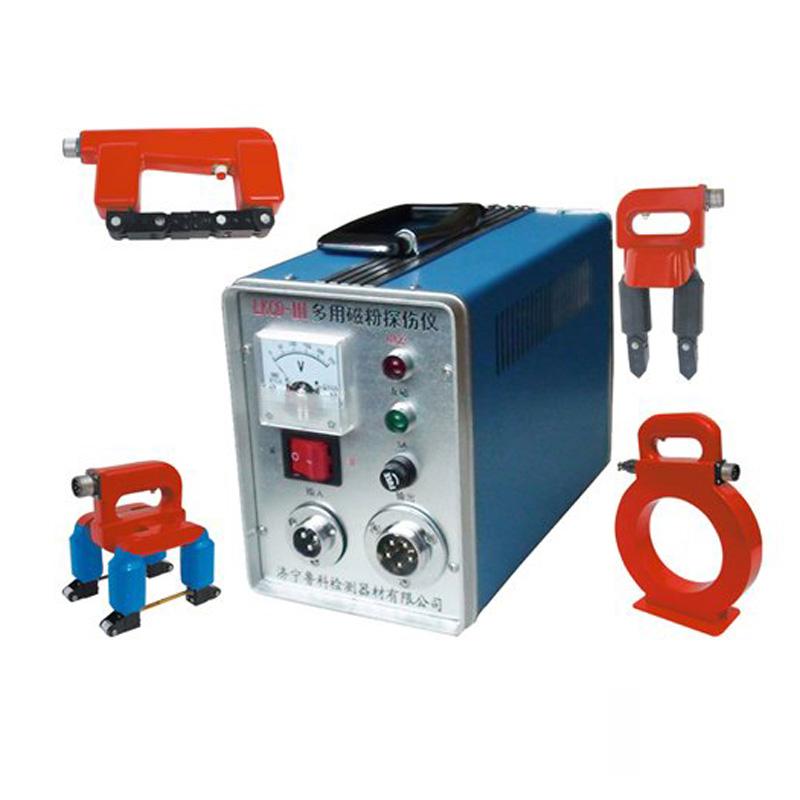

LUKE CDX-V Portable Magnetic Particle Flaw Detector swirl/spin/ac/dc magnetization mode
LUKE CDX-V Portable Magnetic Particle Flaw Detector's probe Operating Voltage and current are AC36V DC8V four-gear adjustable, 8~ 12A four-gear adjustable, CDX-V This model is a portable Magnetic Particle Flaw Detector with thyristor as a touchpoint switch, easy to operate and high Sensitivity.
LUKE
CDX-V
-
LEEB leeb610A Portable Yoke Flaw Detector Magnetization Pole Distance 0~220mm
$ 571.00 -
LEEB leeb500 Ultrasonic Flaw Detector Scanning range 0~6000mm Automatic calibration probe
$ 1147.00 -
IPRE UF180 Ultrasonic Flaw Detector nondestructive flaw detection machine 0~9999mm
$ 1658.00 -
MITECH MUT520B Ultrasonic Flaw Detector, all-digital portable Detector 6m range
$ 1619.00 -
WENTAI HY-30 Ultrasonic Flaw Detector DAC Linear dispersion automatically generates 6 meters range
$ 2092.00
Features
CDX-V magnetic particle flaw Detector has three magnetization modes of rotation, AC and DC, the instrument adopts thyristor as a non-contact switch, simple operation, high sensitivity, in order to adapt to the power grid Voltage hydraulic dynamics, improve the service life of the instrument, the instrument is equipped with four gears to adjust the Operating Current of the probe within the allowable range.

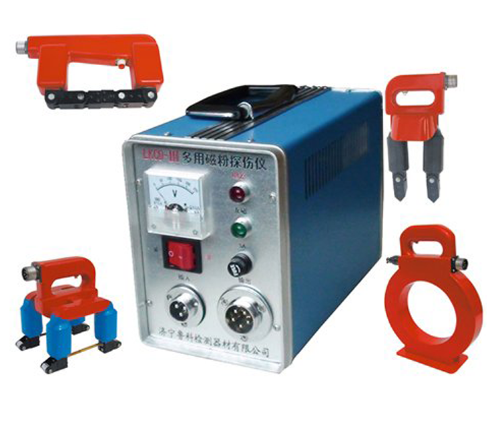

LUKE CDX-V Portable Magnetic Particle Flaw DetectorSpecifications
| LIST | VALUE |
|---|---|
| feature | With swirl/spin, AC, DC three magnetization mode, with four gears to adjust the probe Operating current within the allowable range |
| Power Supply | AC 220V |
| Operating Voltage of probe | AC36V DC8V four gear adjustable |
| Sensitivity | It can clearly and completely display the grooves on the A-type (15/100) standard test piece |
| lifting force | Horseshoe (type A) probe > = 6kg, electromagnetic yoke (type D) probe > = 6kg, DC 36kg, swirl/spin magnetic field (type E) probe > = 12kg, ring (type O) probe 1800TA |
| Optional probe | A，D，E，O |
| Host Weight | 6.5Kg |
| Dimension | 265*140*170mm |
| Operating current of probe | 8~ 12A four-gear adjustable |
LUKE CDX-V Portable Magnetic Particle Flaw Detector Packing list
The whole machine x1, the operation manual x1, and the certificate of conformity x1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
