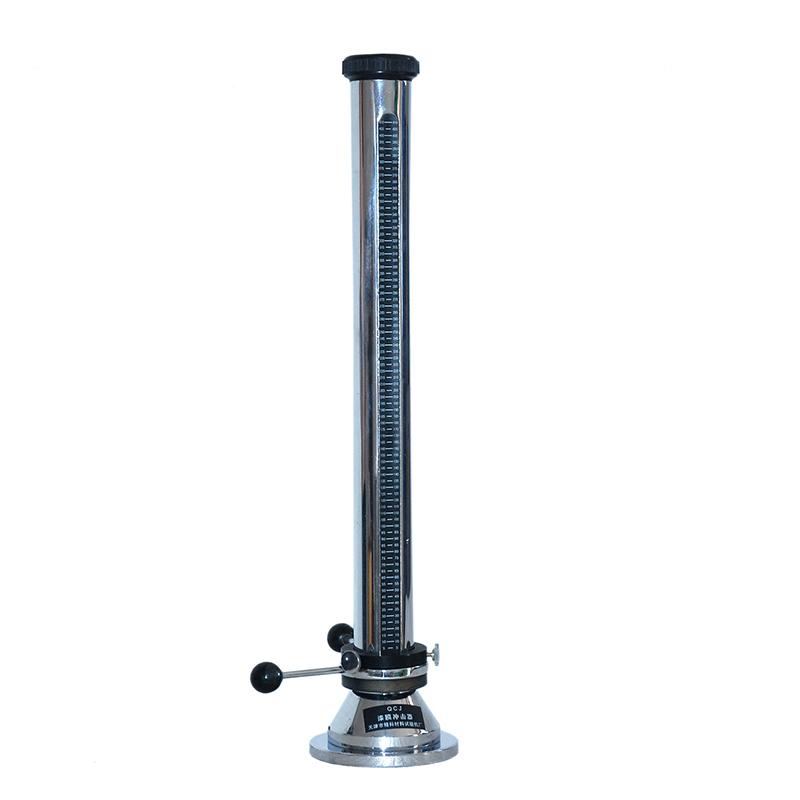

JINGKELIAN QCJ-40 Wood Impact Machine 40cm/500g GB/T 4893.9

Impact height 40cm, sub-scale 5mm, drop weight mass 500g, table size 200x250mm, meet the standard GB/T 4893.9-92, Impact steel ball φ 14-0.01 HRC60~66 (GB308), sample size 200x180mm.

Brand

SKU: NB029648

JingKeLian

Model

QCJ-40

Price

$ 195.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

JingKeLian shopSE

Information

Datasheet RFQ Contract Video

What else did others buy

JINGKELIAN QCJ-II Film Impact, Height 50cm

$ 223.00
YONGLIDA QCJ-120A Paint Film Impact Device 120cm/1000g GB/T5237.4

$ 350.00
PUSHEN ZCJ-II Heavy Impact film impact resistance testing machine

$ 1034.00
PUSHEN TCJ-II resilience impact test instrument 100cm/1000g ISO/ASTM

$ 725.00
Impact Tester TQC SP1890 meets ISO 6272-1 standard

$ 3834.00

Genuinegoods

JingKeLian QCJ-40 Wood Impact DeviceOverview
Specifications
Comments
FAQs

QCJ-40

Wood Impact Device

Impact height 40cm, sub-scale 5mm, drop weight mass 500g, table size 200x250mm, meet the standard GB/T 4893.9-92, Impact steel ball φ 14-0.01 HRC60~66 (GB308), sample size 200x180mm.

Introduction

QCJ-40 paint film impactor is designed and manufactured according to GB/T4893.9-92 standard. It is suitable for evaluating the impact resistance of the paint film on the surface of furniture wooden parts.

Principle

A steel cylindrical impact block is dropped from a specified height along a vertical conduit and impacts on a steel ball with a specified diameter and hardness placed on the surface of the test piece. According to the degree of damage to the paint film on the surface of the test piece, The grade expressed by the number is used to evaluate the impact resistance of the paint film.

Instrument structure

QCJ-40 paint film impactor consists of:

1. Work abutment; 2. Scale catheter; 3. Catheter seat; 4. Controller; 5. Impact block; 6. Standard steel ball; 7. End cap; composition.

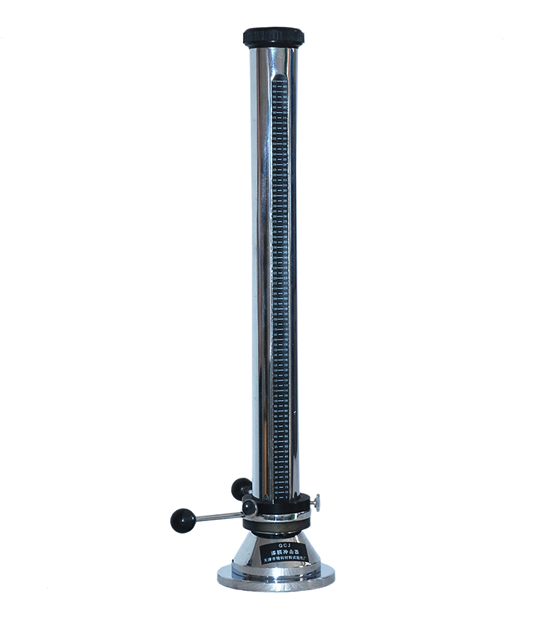

Details of JinKeLian QCJ-40 wood impactor 1

JingKeLian QCJ-40 Wood Impact DeviceSpecifications

LIST	VALUE
Impact height	40cm
Graduation	5mm
Drop Weight Mass	500g
Table size	200x250mm
Standards	GB/T 4893.9-92
Impact steel ball	φ14-0.01HRC60~66（GB308）
Template size	200x180mm

JingKeLian QCJ-40 Wood Impact Device Packing list

Host X1, manual X1, certificate X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

I want to do a test on the GB/T7788 standard. Is this wood impactor okay?

[A]

Sure

[Q]

What is the drop weight mass of QCJ-40 wood impactor?

[A]

Hello, the drop hammer mass is 500 ± 5g.
