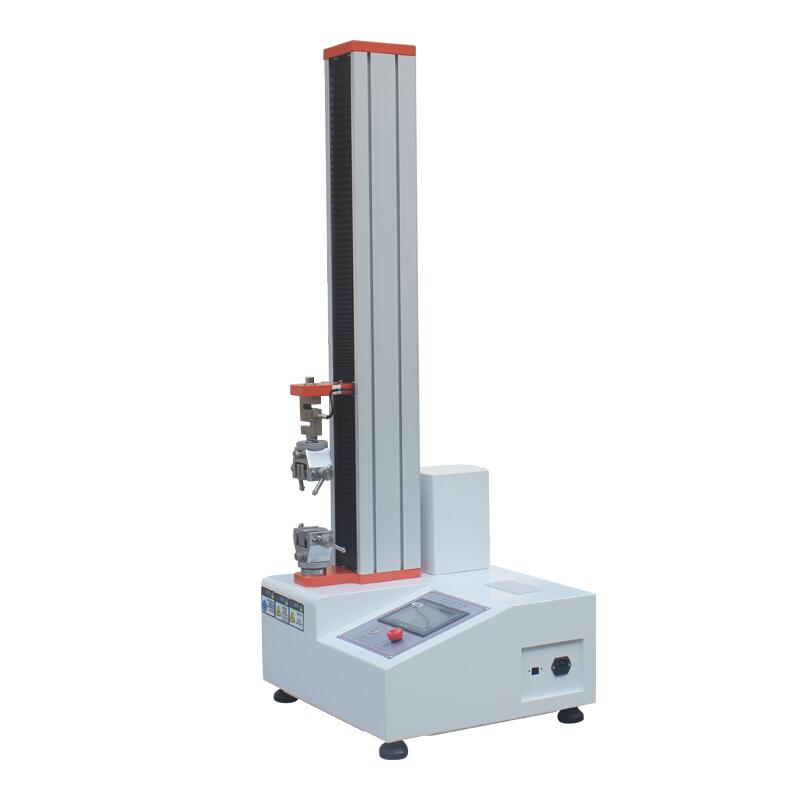

CHINA ASR-1021 Touch screen single column Tensile Strength Tester 10KG
Force range of 10kg, measurement accuracy +/- 1%, force units kgf, gf, N, kN, lbf, stress units MPa, kPa, kgf/cm2, lbf/in2, with upper and lower limit safety settings, test breakpoint sensing.
AISRY
ASR-1021（10KG）
-
CHINA NBC-1024 Servo Control Computer System Tensile Testing Machine
$ 3917.00 -
HBO LTD-1T Gantry Microcomputer Controlled Spring Testing Machine, Range 10KN
$ 4142.00 -
Essence JH - WN-LL Universal Rally Machine, Touch Screen Version 100N
$ 1492.00 -
HBO XY-2T electronic universal testing machine, small gantry type
$ 2838.00 -
Haibao LYD-1T gantry microcomputer-controlled universal testing machine, range 10KN/1000KG
$ 3772.00
Applications
Suitable for tensile strength, peel strength, deformation rate, breaking force, peeling force of plastic film, composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber, etc. , opening force and other performance tests.
Application
Tapes, automobiles, ceramics, composite materials, construction, food and medical equipment, metals, paper, packaging, rubber, textiles, wood, communications and various special-shaped materials
AISRY ASR-1021（10KG） Tensile Strength TesterSpecifications
| LIST | VALUE |
|---|---|
| Capacity selection | 10KG |
| Measurement Accuracy | ±1% |
| force resolution | 1/200000 |
| Test speed range | 0~300mm/min |
| effective travel | 600mm |
| Test space | 120mm |
| Force unit | kgf、gf、N、kN、lbf |
| stress unit | MPa、kPa、kgf/cm2、lbf/in2 |
| shutdown mode | Upper and lower limit safety setting, specimen breakpoint sensing |
| result output | micro printer |
| Power system | speed regulating motor |
| optional configuration | Tension clamp (conventional) |
| Machine Weight | About 40kg |
| Power | 1PH、AC220V、50/60Hz |
AISRY ASR-1021（10KG） Tensile Strength Tester Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
