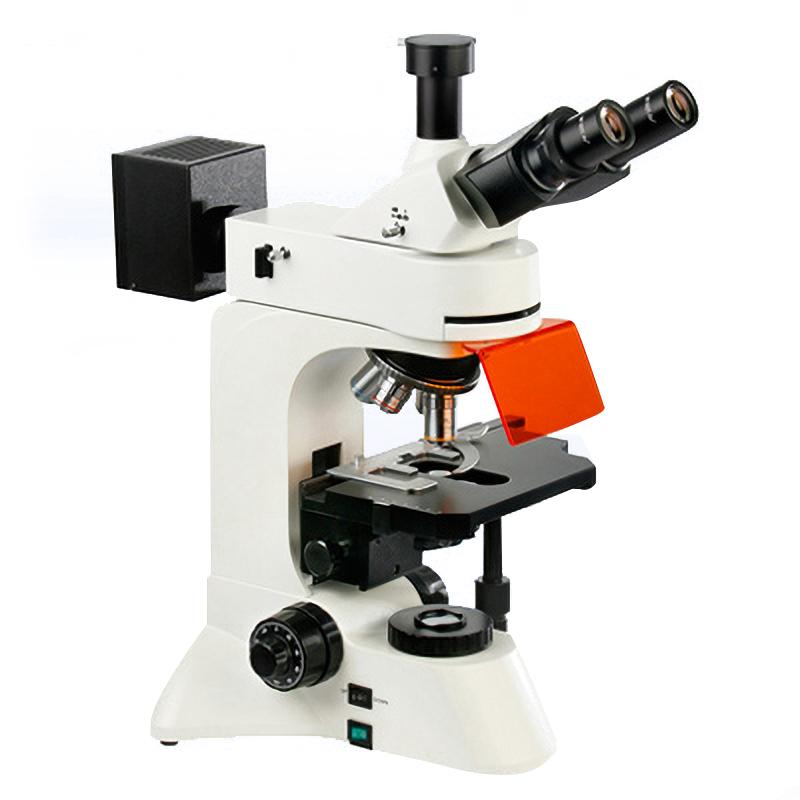

ShangGuangLiuChang BM-18AY Trinocular Fluorescence Microscope

SHANGGUANG BM-18AY Trinocular Fluorescence Microscope

Eyepiece 10X objective 4X, 10X, 40X100X, 20X (optional on five holes) Four-hole or five-hole, infinite objective, Electric Light source (40X-1000X) Fluorescence device

Brand

SKU: NB031501

ShangGuangLiuChang

Model

BM-18AY

Get Quote

ShangGuangLiuChang shop

Information

Datasheet

What else did others buy

Genuinegoods

ShangGuangLiuChang BM-18AY Trinocular Fluorescence MicroscopeOverview
Specifications
Comments
FAQs

BM-18AY

Trinocular Fluorescence Microscope

Eyepiece 10X objective 4X, 10X, 40X100X, 20X (optional on five holes) Four-hole or five-hole, infinite objective, Electric Light source (40X-1000X) Fluorescence device

The scientific research grade LED trinocular fluorescence microscope XSP-BM18AY is suitable for fluorescence microscopy and transmission brightfield observation. The transflective light source adopts high-power and high-brightness LED, the lighting device has low power consumption, long service life, and has a good heat dissipation effect, the instrument is safer and more comfortable to use, and the use and maintenance cost is low, which is a satisfactory instrument for biology, cytology, oncology, genetics, immunology and other research work, and can be used by scientific research, universities, and other departments. Total magnification: 40X-1000X

Characteristics:

1. Adopt today's more professional infinity optical system.

2. Equipped with a large field of view eyepiece and a fluorescence objective lens, the field of view is flat and clear.

3. Planetary coaxial coarse and micro dynamic focusing device is adopted, and the focusing is comfortable and stable.

4. Two optical path outputs, one for observation and one for connecting the camera device.

5. The light source adopts 3W high-brightness monochrome LED, which can switch LEDs in different bands, and the brightness is not adjustable.

6. Double-layer mechanical stage with scale is adopted, and the handwheel is adjusted in the coaxial and longitudinal and horizontal directions, which is more convenient to operate.

Options

name	Parameters
Plan eyepiece	WF16X、WF20X
Plan eyepiece	Micrometer eyepiece: 0.1 ruler, 0.05 ruler, 0.5 reticul, 0.2 reticul, 0.1 coordinate
objective	Infinity plan achromatic objectives: 20X, 60X, 80X
objective	Infinity Plan Achromatic Fluorescence Objective PL FL10X/0.35
LED fluorescence filter set	Violet 390nm~400nm, ultraviolet 360nm~370nm
converter	Five-hole (inward-facing ball positioning)
Color gels	Green, yellow
Ruler	The objective micrometer is 0.01mm
Ruler	Eyepiece micrometer: 0.1 ruler, 0.05 ruler, 0.5 grid, 0.2 grid, 0.1 coordinate
Camera interface	Camera interface: 1X, 0.5X
Camera interface	Digital camera interface: 1X, 2.5X/4X
Camera	(1) Japanese JVC camera + image capture card
	It has the functions of single, timed, continuous image acquisition, multimedia connection, printout and so on
	(2) Digital cameras with 1.3 million, 2 million, 3.2 million and 5 million pixels
	It has the functions of single, timed, continuous image acquisition, display scale, measurement, etc., and can be connected to multimedia, printing, EMAIL and other ways of output.
	(3) Digital camera + basic measurement management software
	The 15-million-pixel Canon SLR camera has the functions of real-time image acquisition, image fusion, display scale, measurement, etc., and can be connected to multimedia, printing, email and other ways of output
Image analysis software	(1) Basic management software UV
	It can be collected in a single, timed and continuous manner, the ruler and magnification can be displayed, the length, angle, radius, perimeter, area and other measurements can be carried out on the microscopic image, and the output can be connected to multimedia, printing, email and other ways.
	(2) Bioanalytical software UV-P
	It can be single, timed, and continuous acquisition, display ruler and magnification, and can analyze various morphologies of biological cells, germs, glands, etc. in the field of view, and can be output in a variety of ways such as multimedia, printing, and email.
	(3) Particle size analysis software UV-G
	It can automatically measure and analyze the particles in the field of view, and can output the distribution map and integral distribution map in a linear or nonlinear statistical way according to the particle size, area, shape and other parameters of the particles, and can also obtain common statistical data such as D10, D50, D90, etc. It can be connected to multimedia, printing, email and other ways to output.

ShangGuangLiuChang BM-18AY Trinocular Fluorescence MicroscopeSpecifications

LIST	VALUE
eyepiece	WF10X/Φ22
objective lens	Infinity flat-field color difference elimination objective: 4 ×/0.10, 10 ×/0.25, 100 ×/1.25 (oil) Infinity flat-field color difference elimination fluorescent objective: PL FL40X/0.85 (spring)
trinocular observation head	Hinged 30 ° tilt
Pupil distance adjustment range	55mm-75mm
Total Magnification	40X~1000X
converter	Four holes (inward ball positioning)
stage	Double-decked mechanical mobile (size: 210mmX140mm, moving range: 75mmX50mm)
Focusing system	Coarse fretting coaxial focusing, coarse elastic adjustable, with locking and limit device plate, fretting grid value: 2μm
Fluorescent device	3W high-brightness monochrome LED, which can be combined in monochrome or two-color. The emission wavelength of each monochrome LED is: G: 520nm~ 530nm, B: 460nm~ 470nm.
Light source	3W high-brightness white LED, adjustable luminance
condenser	1.25NA Abbe condenser, variable light bar
Color filter	Blue, Frosted Glass

ShangGuangLiuChang BM-18AY Trinocular Fluorescence Microscope Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
