Introduction
PXS-VI. Large Field Stereo Microscope is widely used because it can produce an upright three-dimensional spatial image when observing objects, and the angle between the left and right axes is12°, so the three-dimensional sense is strong, the imaging is clear and wide, and there is a long working distance, and the reflected illumination and transmitted illumination can also be selected according to the observation of the sample.
This instrument is reliable, simple to operate, easy to use, and beautiful in appearance. It can not only be used for teaching demonstration, biological anatomy, and observation and analysis by the public security department.It can also be used for the assembly and inspection of precision parts in the electronics industry, and the inspection of seeds in agriculture.

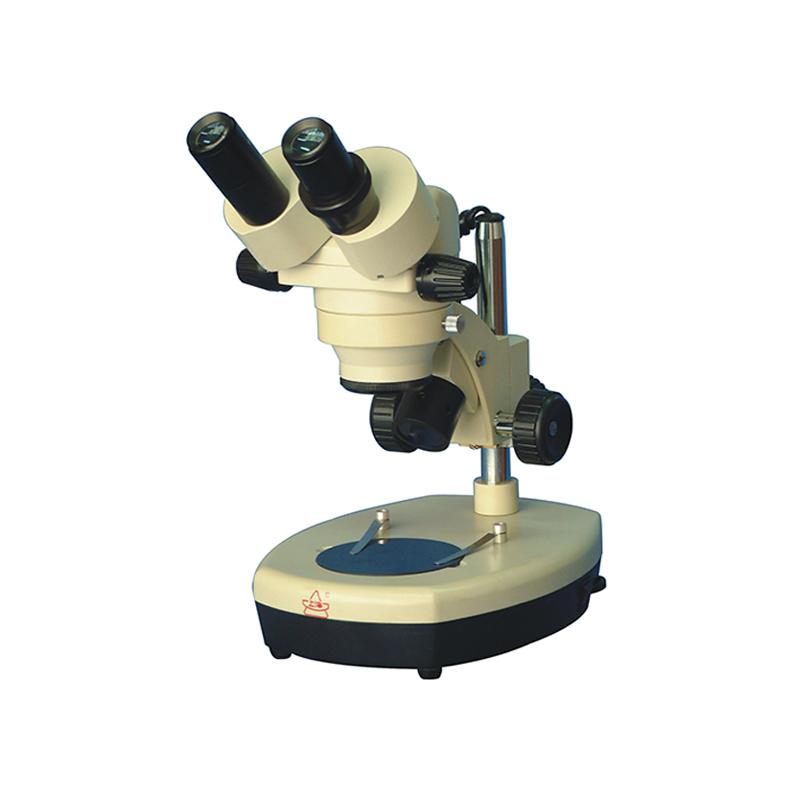

ShangGuangLiuChang PXS-Ⅵ Stereo MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| eyepiece | magnification/field of view diameter, 10X/φ 22 can be divided with a grid value of 0.1mm; magnification/objective field of view/working distance, 1X/φ 22mm/110mm, 2X/φ 11mm/110mm, 3X/φ 7mm/110mm, 4X/φ 5.5mm/110mm |
| Glass table size | Φ95mm |
| Focusing range | 43mm |
| Binocular pupil distance adjustment range | 55-75mm |
| Maximum sample height | 80mm |
| lighting system | Transmission and reflection illumination |
| light bulb | 12V/10W |
| Weight | 2.5kg |
| Dimension | 265*205*405mm |
ShangGuangLiuChang PXS-Ⅵ Stereo Microscope Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.


PXS-Ⅵ
