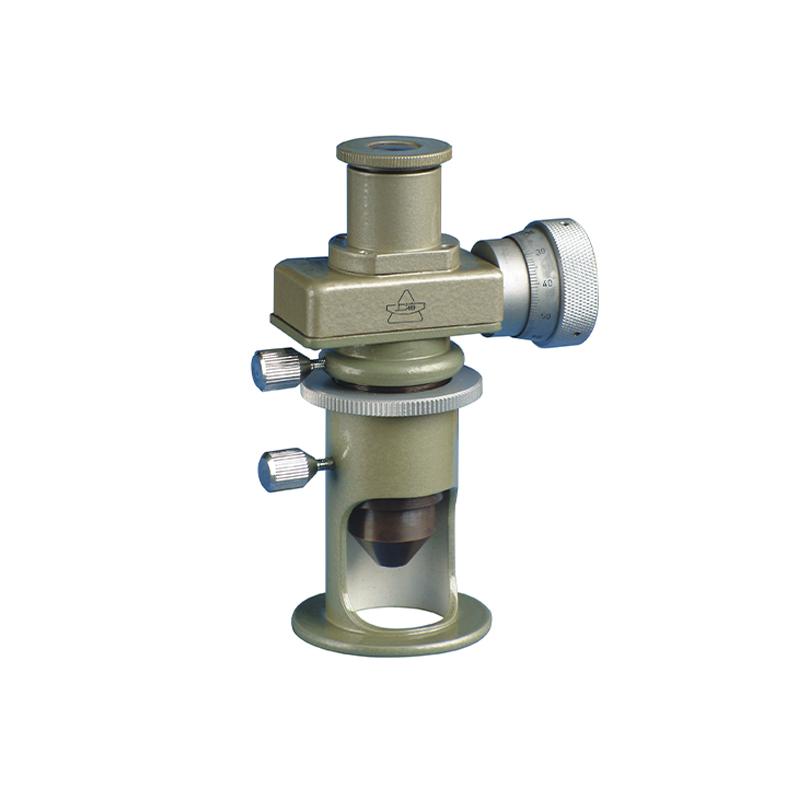

SHANGGUANG JC-10 Reading Microscope
SHANGGUANG JC-10 reading Microscope is a pocket-sized portable microscopic measuring instrument for on-line quality control and hardness of materials testing of powder particles, surface defects, scratches, faults, coating thickness, etc. JC-10 reading Microscope can be widely used in light industry, machinery, electronics, printing and other industries.
ShangGuangLiuChang
JC-10
-
Varnishing BM-62XC Transmission reflection Polarizing Microscope
$ 4063.00 -
Varnishing BM-62XCD Computer reflection Polarizing Microscope
$ 4936.00 -
Varnishing BM-62XCP Microscope for reflection
$ 5229.00 -
VARNISING BM-SG15D Computer Research Biological Microscope with 12 million Pixel CMOS Camera
$ 11217.00 -
TEELEN TL-1500 Transmission reflection Polarizing Microscope
Login
Introduction
JC-10/JC4-10 is a pocket-sized portable microscopic measuring instrument for powder particles, surface imperfections, scratches, faults, and coating thicknessdegree and other online quality control and material hardness testing. Its MCU-10/MCU-15 micrometer eyepiece parts can also be equipped with a variety of complex optical instrumentsIt is used for microscopic measurement of readings. (Such as: self-measuring micro-collimator, Vickers Hardness Tester, microHardness Tester, finish microscope and other measurement reading.)number of parts). It is widely used in light industry, machinery, electronics, printing and other industries.
ShangGuangLiuChang JC-10 MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Eyepiece magnification | 10X |
| Eyepiece micrometer | 0-8 mm |
| Minimum Graduation of eyepiece micrometer drum | 0.01 mm |
| eyepiece line field of view | 8.5 mm |
| Eyepiece external tube diameter | Should be 23.2 mm |
| objective magnification | 2X |
| Measurement range | 0-4mm |
| Measurement Accuracy | ±0.01mm |
| system magnification | 20X |
ShangGuangLiuChang JC-10 Microscope Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
