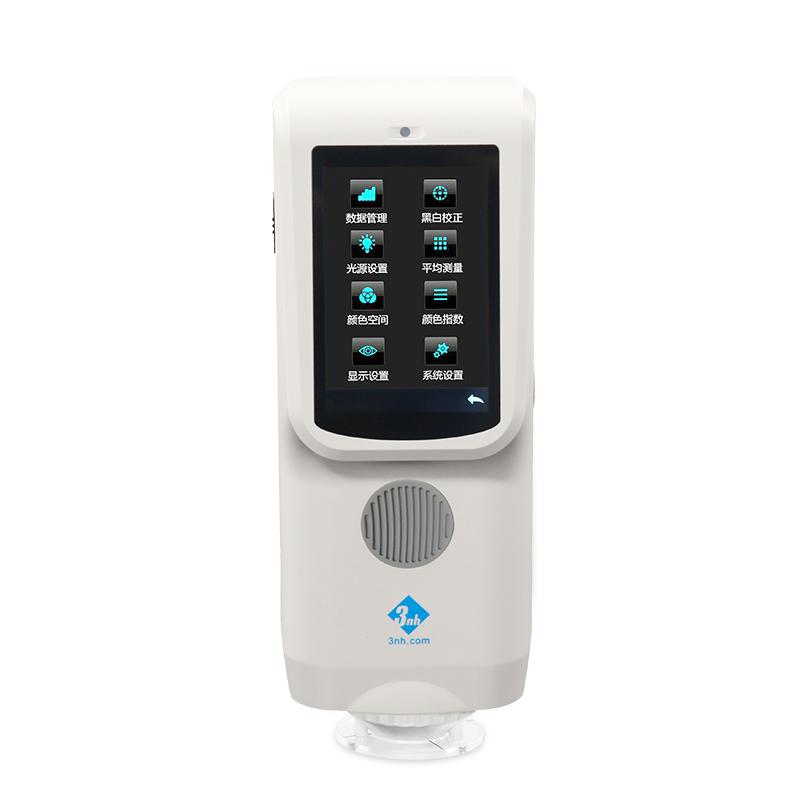

3NH TS7036 spectral color reader 4mm/8mm dual diameter

product description

TS7036 is a portable spectroscopic Colorimeter developed by 3nh using independent spectroscopic core technology. It is a high-level Colorimeter under the spectroscopic structure. In addition to ensuring the accurate relative value ΔE, it also ensures the long-term accuracy of the absolute value L, A, and B. It can pass the measurement of international standards and national standards anytime and anywhere. Using built-in silicon photodiode array (32 sets of dual columns) sensors and imported whiteboards, the repeatability ΔE*ab is easily controlled within 0.05, while taking into account the measurement speed and the convenience of operation. It can quickly measure and judge color difference, and has powerful functions. The 4/8mm dual measuring caliber meets the precise color difference control in the production and quality inspection of various industries such as plastic electronics, paint ink, textile and garment printing and dyeing, printing, and ceramics.

Features

1. Φ4/8mm dual measuring aperture, 10°observer angle, which can meet the needs of customers in most industries;

2. Combining full-spectrum LED light source, planar grating light splitting, and true-color capacitive touch screen, the starting point for configuration is high;

3. Silicon photodiode array (32 groups in double columns) sensor, display accuracy 0.01, good repeatability;

4. The life of the light source is greater than 3 million measurements in 5 years, and the lithium battery can be measured 6,000 times within 8 hours, which can be recharged repeatedly and has a long battery life;

5. Data storage: 1,000 standard samples and 30,000 samples, for fast data search, analysis and comparison.

Applications

TS7036 spectroColorimeter is equipped with Ø4/8mm dual measuring apertures, which has wider adaptability and meets the precise color difference control in the production and quality inspection of various industries such as plastic electronics, paint ink, textile and garment printing and dyeing, printing, ceramics, etc.

Technical advantages

1. Using the internationally accepted D/8 SCI/SCE synthesis technology

TS7036 spectroColorimeter adopts D/8 lighting observation conditions widely applicable in the world, SCI/SCE (including specular reflection/not including specular reflection) synthesis technology, suitable for color matching and coatings, textiles, plastics, food, building materials in various industries Color management and quality control in cosmetics, cosmetics and other industries.

2. Adopt full-band balanced LED light source

The full-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectrum loss of white LEDs in specific bands, and ensures the measurement speed of the instrument and the accuracy of measurement results.

3. Silicon photodiode array (double 32 array) sensor

Larger area double 32 array sensor, strong light will not be saturated, low light sensitivity is higher and the spectral response range is wider, which ensures the measurement speed, accuracy, stability and consistency of the instrument.

4. A variety of color measurement spaces, a variety of observation light sources

TS7036 spectroColorimeter provides CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, βxy, DIN Lab99 Munsell (C/2) color space, and D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30) various observation light sources, which can meet the special requirements under different measurement conditions Measurement needs.

5. Ergonomic design and easy-to-test device

The TS7036 spectroColorimeter has a beautiful, smooth shape and a comfortable grip. The structural design conforms to the ergonomics and fits the palm of your hand and is suitable for continuous testing, allowing you to use it quickly and easily. An easy-to-measure device for automatic measurement is added, which is portable, fast, easy to measure and use.

6. Measurement verification report

Each TS7036 Spectrophotometer has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of the credible verification department. The measurement data is traceable to the National Metrology Institute to ensure the reliability of the instrument test data.

7. ETC real-time calibration technology

The TS7036 spectroColorimeter adopts imported standard white board, which is resistant to yellowing, dirt does not penetrate, and can be wiped to ensure the long-term accuracy of the instrument. At the same time, the innovative ETC real-time calibration technology (Every Test Calibration) is adopted. The optical system has a built-in standard whiteboard, and it has reliable accuracy and repeatability in each test.

8. Camera framing and positioning, can clearly observe the measured area

The TS7036 Spectrophotometer has a built-in camera for viewing and positioning. Through the real-time viewing of the camera, it can accurately determine whether the measured part of the object is the center of the target, which improves the measurement efficiency and accuracy.

9. Color management software

The SQCX quality management software paired with the TS7036 spectroColorimeter is suitable for quality monitoring and color data management in various industries. Dataize the user's color management, compare color differences, generate test reports, provide a variety of color space measurement data, and customize the customer's color management work.

host X1, power adapter X1, data cable X1, correction box X1, manual X1, certificate X1, warranty card X1, correction box X1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
