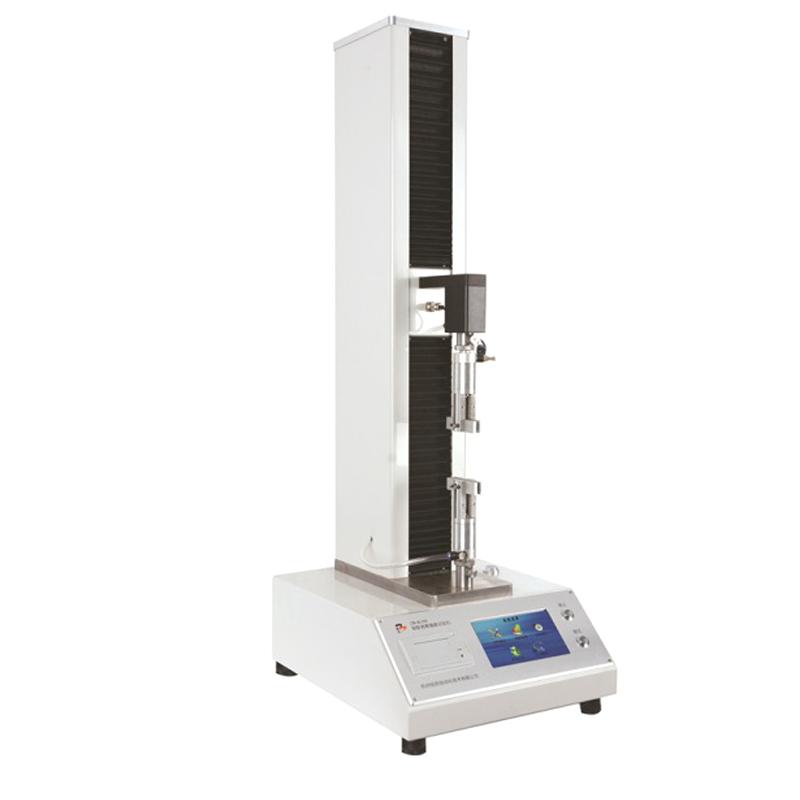

ZHIBANG ZB-QL100 Pneumatic Vertical Computer Tension Meter 0~100N

Introduction

Pneumatic vertical computer tensile meter is a special instrument for testing the performance of non-metallic materials such as paper and towel with high sensitivity and weak physical signal. At the same time, it has the advantages of large strokes, optional measuring ranges, and detachable/customized fixtures, and users can design their own experimental functions according to their needs.

The instrument adopts vertical and single-column structure, adopts pneumatic clamping structure, is equipped with foot switch, the sample is flat, easy to operate, reduces human error, and the distance between chucks can be adjusted within a certain range. It adopts foreign high-speed microprocessor chip, which has powerful data processing function, automatic reset, easy adjustment and stable performance. It adopts 7.0-inch, 65K color touch LCD screen display, which can display various data and tensile curves in real time.

function

Measure the tensile strength, tensile strength, elongation, fracture length, tensile energy absorption, tensile index, and tensile energy absorption index of paper;

Measure the heat sealing strength, tensile strength and peel strength of food bags;

Measure towel adhesion strength, edge banding strength, tensile strength, elongation;

Measure the peel strength and tensile strength of pressure-sensitive adhesive tapes. Measure the breaking strength and elongation of synthetic fiber filaments;

Measure the lightness of the zipper.

The tensile time and load tension are displayed in real time during the test. When the specimen breaks, the tensile strength, tensile index, fracture length, elongation, tensile energy absorption index, tensile energy absorption value and tensile time at fracture are displayed, and the tensile curve can be displayed. After stretching a group of samples, the average value, standard deviation and coefficient of variation of each measurement parameter can be directly displayed and printed with the push of a button.

Characteristics:

1. Imported motor, low noise and precise control.

2. Pneumatic blessing structure and foot switch are adopted, which is convenient to operate and reduce operation errors.

3. Large-screen color touch LCD display, real-time display of various data and stretch curves.

4. In the measurement range of 0-30N, the accuracy can reach 0.01N, the resolution is 0.01N, and the corresponding parameters of the paper are professionally measured.

5. Direct access to measurement results: After completing a set of tests, it is convenient to display the measurement results directly and print statistical reports, including mean, standard deviation and coefficient of variation.

6. Variable specimen size and tensile speed: For commonly used standard size specimens, the tensile test can be carried out directly at the specified speed, and the appropriate tensile speed can also be set according to the needs of the situation to change the test length and width of the specimen.

7. High degree of automation: The instrument design selects professional devices at home and abroad, and the single-chip microcomputer is used for information sensing, data processing and action control, with automatic reset, data memory and overload protection.

8. Data communication: The instrument is equipped with a standard serial RS232 interface, which can provide data communication for the upper computer integrated reporting system.

9. Wide measurement range: The measuring range of the instrument can be converted according to the needs of users with different force Testers, and can be widely used in tensile test determination of various papers and materials.

10. Multi-functional, flexible configuration: The instrument is mainly used for paper measurement, and changing the configuration of the instrument can be widely applied to the measurement of other materials.

Enforce the standard

ISO 1924 "Paper and Cardboard – Determination of Tensile Strength"

GB/T 12914 "Paper and cardboard -- Determination of tensile strength"

GB/T 24328.3 Paper and articles thereof – Part 3: Determination of tensile strength, elongation at break and tensile energy absorption

GB/T 24328.4 Paper and its products – Part 4: Determination of wet tensile strength (this standard was drafted and formulated by the company)

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
