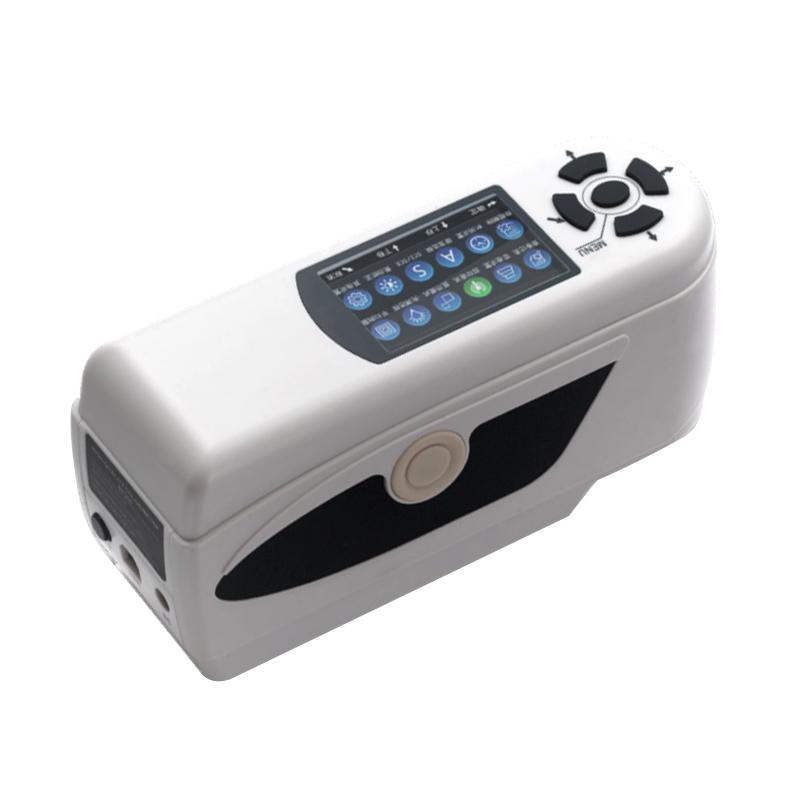

INESA WSC-3B portable precision Colorimeter φ 4mm/φ 8mm

Measurement light source D65, D50, A, Measurement time of about 0.5s, measurement caliber, Repeatability ≤ 0.06Delta E * ab, new integrating sphere optical path design, eliminate the main optical path and auxiliary optical path stray light, with good measurement Stability and Measurement accuracy.

Brand

SKU: NB033688

INESA

Model

WSC-3B

Get Quote

INESA shop

Information

Datasheet

What else did others buy

3NH NR200 NR series computer Colorimeter portable Colorimeter

$ 817.00
CHINA LS176 Colorimeter Colorimeter

$ 627.00
3NH NS Multifunctional Test Component

Login
LS173 Handheld color difference meter Portable color difference meter 3.5 inch Touchscreen

$ 223.00
CHNSPEC DS-220 Colorimeter 11mm + 6mm + 3mm caliber

$ 537.00

Genuinegoods

INESA WSC-3B Portable precision ColorimeterOverview
Specifications
Comments
FAQs

WSC-3B

Portable precision Colorimeter

Introduction

• Built-in whiteboard parameters, no need for each verification, to achieve fast measurement at start-up

• Switchable dual measuring endfaces

• The new integrating sphere optical path design eliminates the stray light of the main optical path and the auxiliary optical path, and has good measurement stabilityand measurement accuracy

• High-capacity lithium-ion polymer battery, equipped with 3200mAh rechargeable high-capacity lithium-ion electronics, no need for:Repeated purchase of batteries is more durable than traditional dry batteries, saving a lot of money for buying dry batteries and reducing battery pairsPollution of the environment

• Equipped with CQCS3 high-end host computer software, connect to PC to achieve more functions

• PC software for easy control of instrument terminals

• The PC software is more convenient to realize the storage, management and quality control analysis of measurement data

• PC software for more functional expansion

• Portable structure, small and convenient, making measurement easier

• Exquisite appearance, with a dual aesthetic design of tradition and trend

Meets standards

Color representation (GB/T 3977-2008)

Standard Illuminator and Illumination Observation Conditions (GB/T3978-2008)

Measurement method of object color (GB/T3979-2008)

Color Terminology (GB/T5698-2001)

Uniform color space and color aberration formula (GB/T7921-2008)

Colorimeter (JB/T5595-91)

Metrology and Verification Regulations for Color Measurement and Colorimeter (JJG595-89)

Complies with various color measurement standards set by various industries

INESA WSC-3B Portable precision ColorimeterSpecifications

LIST	VALUE
Lighting method	8°/d
Sensors	Silicon photodiode array
Measurement light source	D65,D50,A
Measurement time	About 0.5s
Measurement caliber	Φ8mm
Repeatability	≤0.06ΔE*ab
Operating language	Simplified Chinese, English
Interface	USB port
Viewing Angle	CIE 10°
Lighting source	LED blue excitation
Color difference formula	ΔEab、ΔLab、ΔECh*、ΔECIE94、ΔEhunter
data storage	100 standards 20,000 samples
Power supply Voltage	High Capacity lithium ion polymer battery
display mode	CIEL * a * b * C * h * CIEL * a * b * CIEXYZ CIERGB CIEL * u * v * CIEL * C * h yellowness whiteness colour fastness
Operating environment	-10~40 ℃, 0~85% Relative Humidity (no condensation)
Dimension	20570100mm
Weight	500g
Inter-instrument Agreement	ΔE*ab<0.4
Display	2.8 inch TFT true color LCD screen
Lamp life	More than 1.60 million measurements in 5 years
Charging time	About 8 hours~ 100% battery
Measurable times after charging	3000 measurements in 8 hours
Shop accessories	φ 8mm extended diameter, can measure concave parts, micro thermal printers, powder test boxes, multi-functional test components

INESA WSC-3B Portable precision Colorimeter Packing list

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
