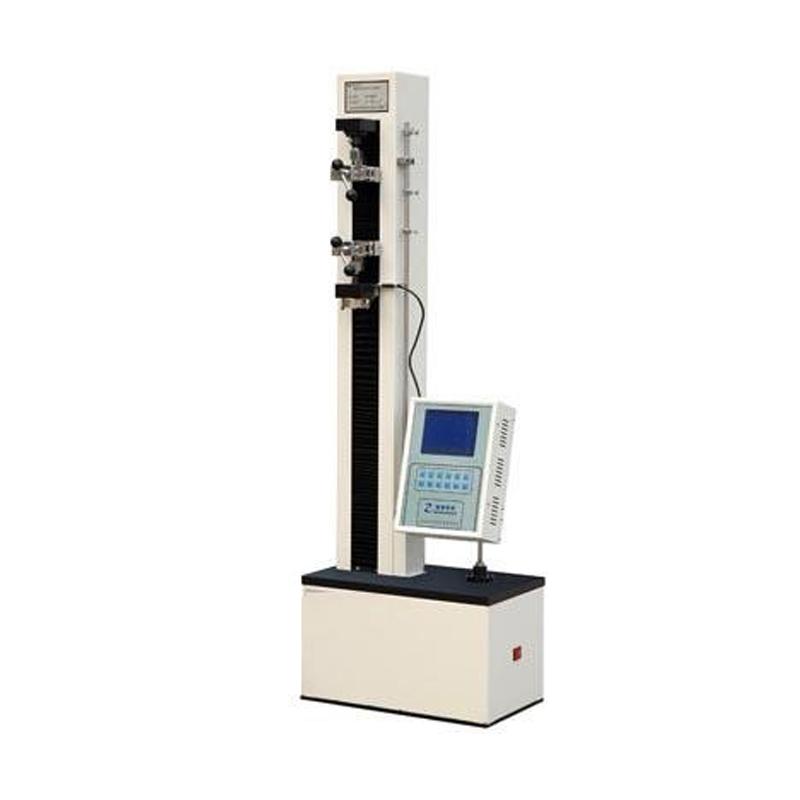

Jinan HORIZON DLS-05 Electronic Tensile Tester 30N 650mm

Application

It is suitable for measuring the tensile strength, elongation at break, and modulus of elasticity of various plastic films and composite films , and can also perform performance tests such as peeling, tearing, and heat-sealing strength.

technical features

1. Touch key operation mode, LCD display real-time display. The display interface can display the test method selection interface, test parameter selection interface, test operation and result display interface and curve display interface

2. It can be pulled off to stop and hold the peak value, and has protection devices such as over-current, over-Voltage, and overload.

3. Can measure stretching, heat sealing, peeling, tearing and other items

4. The force value can be measured by fixed elongation, the elongation can be measured by fixed force value, and the curve can be displayed (force value, displacement)

5. Single-point speed regulation or stepless speed regulation (1-500mm/min)

6. The universal joint adopts a cross pin structure and has the function of limiting the swing angle. On the one hand, it is convenient for sample clamping and ensures the concentricity of the test. On the other hand, the influence of irregular samples on the sensor is well eliminated.

7. Closed-loop control mode, high control precision

configuration

Standard configuration: host machine, a set of standard fixtures, a micro-printer, peel test board, standard pressure roller

Optional configuration: peel test plate, standard pressure roller

Executive standard: GB/T13022, GB/T8808, GB 1040, GB/T4850, GB/T 16578, QB/T 2358, QB/T 1130

host X1, a set of standard fixtures X1, a micro printer X1, disbonding test plate X1, standard pressure roller X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
