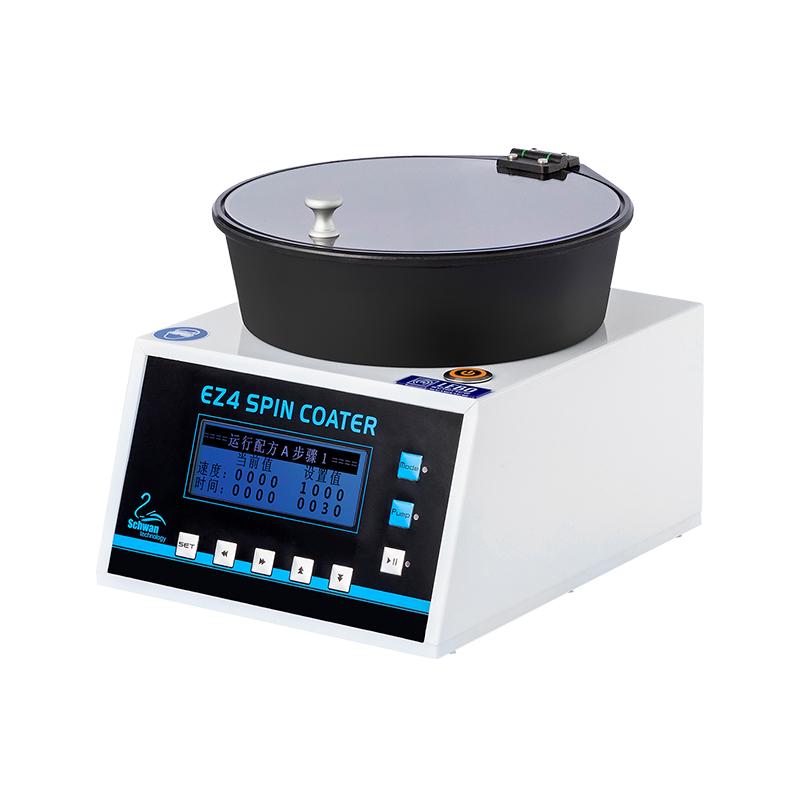

LEBO EZ4-S-PP Spin Coater

Features

• The compact size is suitable for operation in the glove box

• Corrosion-resistant transparent cover, constant torque positioning hinge

• The inner cavity of the mold is integrated and easy to disassemble and clean, and easy to replace

• LCD text display, color mask buttons, simple and easy to use

• The acceleration and deceleration speed can be controlled and adjusted, and the multi-step program operation control can be set

• Brushless DC motor, maximum recommended spin coating size: 4 inch round substrate

• Aluminum alloy housing (EZ4-S), corrosion-resistant PP housing optional (EZ4-S-PP)

Product parameters

Speed range: 100-9999rpm

RPM resolution：1rpm

Adjustable range of acceleration：100-9999rpm/s

Maximum single step size：3000S

Temporal resolution：1s

Single-step or multi-step operation is optional, and up to 5 groups of 5-step programs can be set

Applicable to a wide range of Voltages：AC100-230V input, optional in Chinese and English

It is equipped with three specifications of vacuum load tray of 10mm, 25mm and 55mm as standard

Dimensions：210mm(W)*265mm(D)*213mm(H)

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
