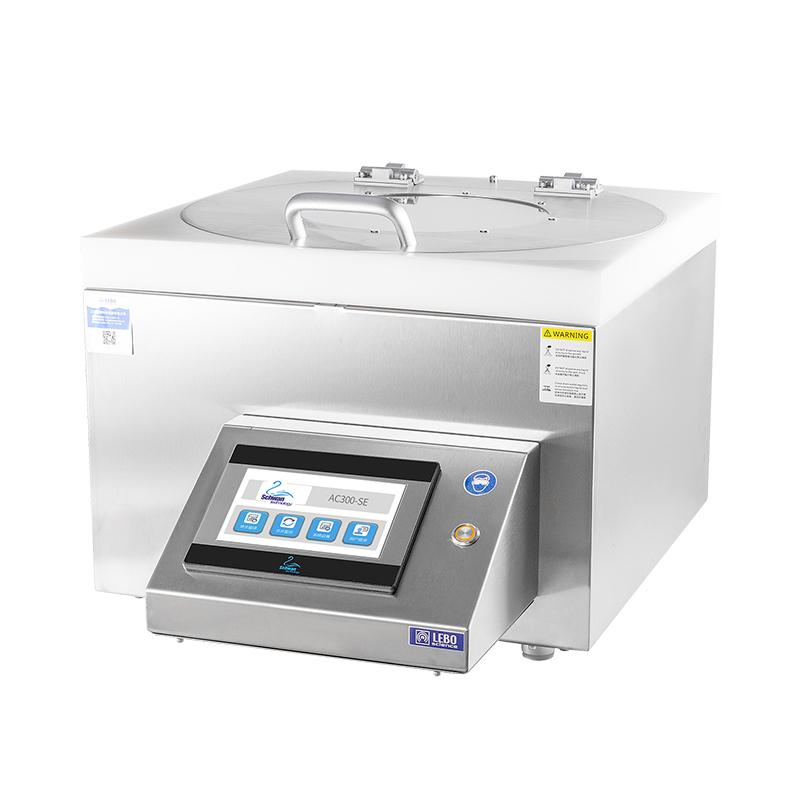

LEBO AC300-SE Spin Coater
The maximum processing size of the LEBO AC300-SE homogenizer is 12 inches, the Speed range is 20-5000rpm, and the Acceleration range is 10-10000rpm/s. The AC300-SE homogenizer is suitable for processing oversized or overweight substrates, and the maximum processing is 12 inches. Round substrates.
lebo
AC300-SE
-
CHINA 16Ez small uniform glue machine, touch screen Spin Coater Power 150W
$ 1408.00 -
HuiNuo HN-SPC8-SS heated Spinning Coater stainless steel cavity
$ 5978.00 -
Factory Direct 12Ac-6 Spinning Coater Spin Coater with Acceleration adjustment
$ 2247.00 -
SETCAS KW-4K experimental homogenizer with support for 18-inch substrates
Login -
Chengyue CY-SPC4-SS Spinning Coater Photoresist Spin Coater 10000 rpm programmable homogenizer
$ 1392.00
Features
Advanced servo motor drive, high precision, high repeatability
Industrial-grade design, PLC control, 7-inch full-color touch screen operation
HDPE inner cavity, stainless steel shell, solvent resistant PC transparent cover
Back cleaning and edge remover functions can be added to meet industrial use
Splash guard cleaning and development can be added to meet customization needs
Suitable for handling oversized or overweight substrates, up to 12 inches round substrates
Requirements such as larger sizes and heavy-duty substrates, as well as chamber vacuuming, can be customized
Product parameters
Speed range: 20-5000rpm, up to 10000rpm optional
RPM resolution: ±1rpm
Acceleration adjustable range: 20-10000rpm/s
Single-step duration: 3000 seconds
Temporal resolution: 0.1s
Programmable 100 groups of 100 step programs, more extensible
With four automatic dispensing ports, it can be upgraded with multi-channel automatic dispensing function
It can be equipped with 6-inch and 8-inch aluminum alloy vacuum load trays, and special specifications need to be customized
Dimensions: 463mm(W)*613mm(D)*306mm(H)
lebo AC300-SE Glue levelerSpecifications
| LIST | VALUE |
|---|---|
| Maximum processing size | 12 inches. |
| Speed range | 20~5000rpm |
| Acceleration range | 10~10000rpm/s |
| Speed Accuracy | ±1rpm |
| maximum single step size | 3000s |
| Time resolution | 0.1s |
| Program settings | 100 steps 100 groups |
| Automatic dispensing port | 4 pieces |
| Swirl/spinning motor | servo |
| Vacuum and open lid interlock | Yes. |
| Human Machine Interface | 7 inch touch screen |
| lumen material | HDPE |
| Shell material | Brushed stainless steel |
| Waste outlet | Yes. |
| Draw trends | none |
| Disk form | plug-in |
| Embedded Design | none |
| Dimensions | 463*613*306mm |
lebo AC300-SE Glue leveler Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
