HONGKE DHG-9101-1SA electric thermostatic Forced Air Drying Oven high temperature oven oven with blast
HONGKE DHG-9101-1SA electric thermostatic Forced Air Drying Oven consumes 1000W of power, Temperature range room temperature + 10~300 ℃, Temperature fluctuation +/- 1 ℃, DHG-9101-1SA electric thermostatic Forced Air Drying Oven adopts progressive heating to suppress temperature overshoot as much as possible.
HongKe-
Kenton 101-2 Dial-Type electric Forced Air Drying Oven, galvanized tank inner tank 300 ℃/136L
$ 309.00 -
YIHENG DHG-9053A desktop Forced Air Drying Oven input power is 1100W
$ 475.00 -
CHINA DHG-9140C high temperature Drying Oven temperature control 400 ℃ 140L
$ 1131.00 -
CHINA DZG-6210 Vacuum Oven 2400W/200L
$ 2361.00 -
Kenton 101-2S Dial-Type electric Forced Air Drying Oven, stainless steel 101 oven 300 ℃/136L
$ 490.00
Application
This product is equipment used for drying, baking, melting wax, and sterilizing . It is suitable for scientific research and production in the fields of factory production experiments, medical research, health and epidemic prevention, drug inspection, environmental protection, and rural science.
Model Selection
| model | Power consumption | studio size |
| DHG-9030 | 500 | 350*350*350 |
| DHG-9101-0S | 500 | 350*350*350 |
| DHG-9030A | 500 | 350*350*350 |
| DHG-9101-0SA | 500 | 350*350*350 |
| DHG-9070 | 1000 | 450*350*450 |
| DHG-9101-1S | 1000 | 450*350*450 |
| DHG-9070A | 1000 | 450*350*450 |
| DHG-9101-1SA | 1000 | 450*350*450 |
| DHG-9140 | 1500 | 450*550*550 |
| DHG-9101-2S | 1500 | 450*550*550 |
| DHG-9140A | 1500 | 450*550*550 |
| DHG-9101-2SA | 1500 | 450*550*550 |
| DHG-9240 | 2000 | 500*600*750 |
| DHG-9101-3S | 2000 | 500*600*750 |
| DHG-9240A | 2000 | 500*600*750 |
| DHG-9101-3SA | 2000 | 500*600*750 |
| DHG-9624 | 4000 | 800*800*1000 |
| DHG-9101-4S | 4000 | 800*800*1000 |
| DHG-9624A | 4000 | 800*800*1000 |
| DHG-9101-4SA | 4000 | 800*800*1000 |
| A: stainless steel liner, S: intelligent digital display temperature controller | ||
| Unit: W, mm | ||
| Other parameters | ||
| Voltage | 220V 50Hz | |
| Temperature control range | RT+10~300℃ | |
| temperature fluctuation | ±1℃ | |
Precautions
1. The shell of the drying box needs to be effectively grounded to ensure safe use.
2. The drying box should be placed in a room with good ventilation conditions, and no flammable and explosive materials can be placed around it or in the box.
3. Do not overcrowd the items in the box, and leave space.
4. The inside and outside of the box should be kept clean. If it is not used for a long time, it should be covered with a plastic dust cover and placed in a dry room.

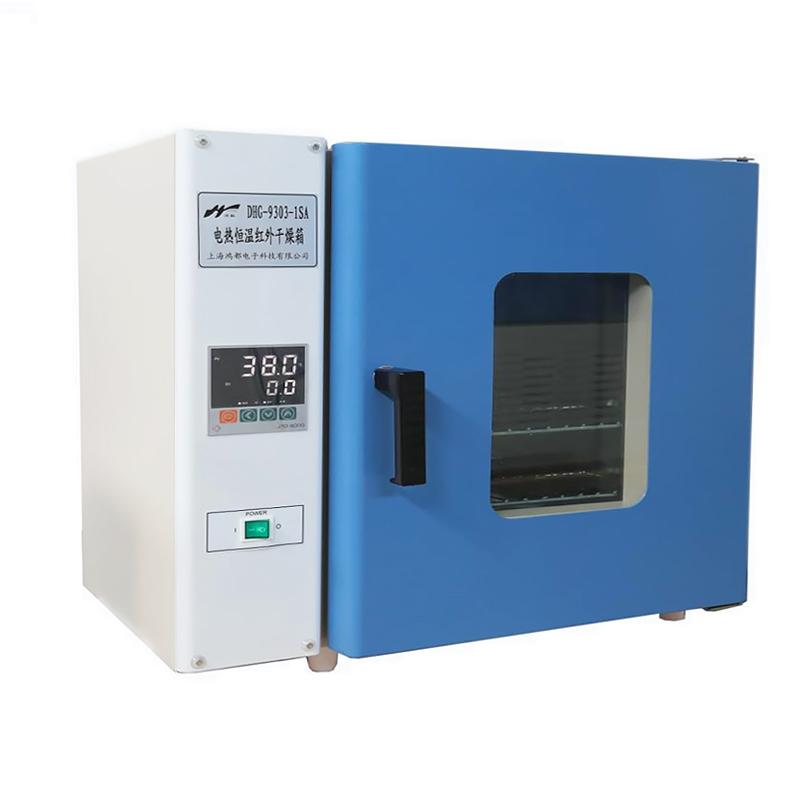

HongKe DHG-9101-1SA Electric thermostatic Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Power supply Voltage | 220V 50Hz |
| Power consumption | 1000W |
| Temperature range | RT+10~300℃ |
| Temperature Fluctuation | ±1℃ |
| Interior size | 450*350*450mm |
| Dimension | 620*680*620mm |
| shelf (std.) | 2pcs |
| Packaging Dimensions | 75*72*74cm |
| Product Weight | 43kg |
| Encasement Weight | 60kg |
| Packaging Dimensions | 720*780*730mm |
| Volume | 0.4m³ |
| Net Weight | 48KG |
| Gross Weight | 62KG |
HongKe DHG-9101-1SA Electric thermostatic Drying Oven Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
