3NH TS8296 Colorimeter φ 25.4/15/8/4mm

Measurement report, equipped with 25.4mm, 15mm, 8mm, 4mm four measurement diameters, can be used for fluorescence sample measurement, Delta E * ab < 0.01, Delta E * ab < 0.12; compatible with SCI/SCE.

Brand

SKU: NB039087

3NH

Model

TS8296

Get Quote

3NH shop

Information

Datasheet Catalog

What else did others buy

Genuinegoods

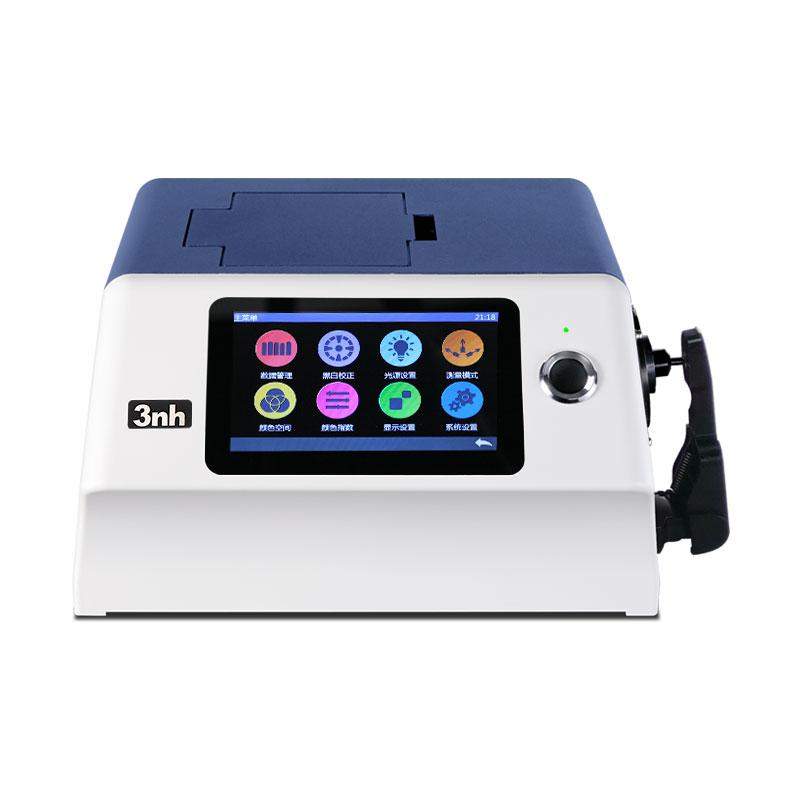

3NH TS8296 Desktop ColorimeterOverview
Specifications
Comments
FAQs

TS8296

Desktop Colorimeter

Introduction

Desktop Spectrophotometer TS8296 is a Spectrophotometer developed by 3nh using its own core spectrometry technology. It uses a dual-array CMOS image sensor with higher sensitivity and wider spectral response range, making the test more accurate. The repeatability ÎE*ab of the TS8296 desktop Spectrophotometer is easily controlled within 0.01, and the inter-stage difference ÎE*ab is controlled within 0.12. The data is stable and reliable, and can be used for accurate color analysis and transmission in the laboratory.

Applications

The TS8296 desktop Spectrophotometer is equipped with four measuring apertures of 25.4mm, 15mm, 8mm and 4mm, which can adapt to more samples to be measured and meet the color transmission and quality of reflective samples and transparent samples in plastic electronics, paint and ink, textile and clothing printing and dyeing, printing and other industries. In terms of control; it can be used for fluorescence sample measurement.

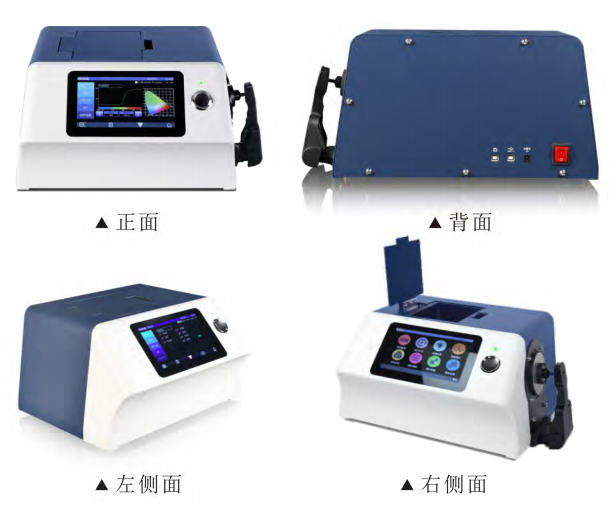

Instrument display diagram

3nh TS8296 desktop Spectrophotometer details picture 1

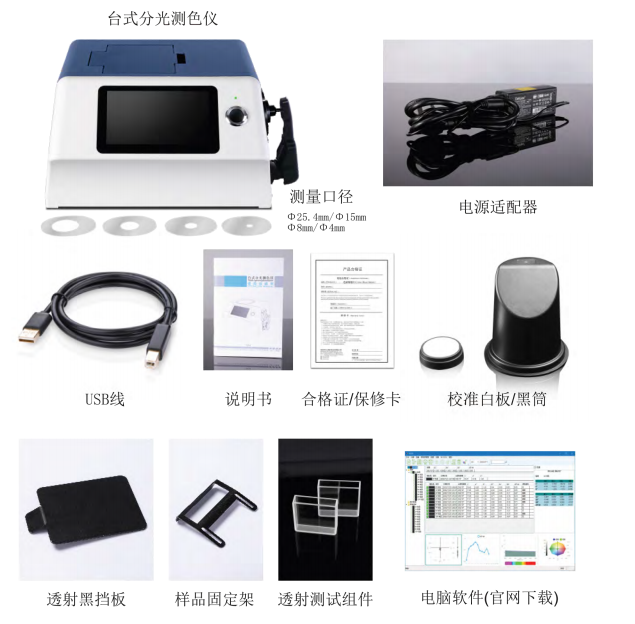

Standard accessories diagram

3nh TS8296 desktop Spectrophotometer details Figure 2

3NH TS8296 Desktop ColorimeterSpecifications

LIST	VALUE
Lighting method	Reflection: D/8 (diffuse illumination, 8 ° direction reception); SCI/SCE measurement; includes UV/exclude UV measurement; Transmission: D/0 (diffuse illumination, 0 ° direction reception) SCI/SCE measurement; includes UV/exclude UV measurement;
Lighting method 2	Haze (ASTM D1003); meets CIE No. 15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
Integrating sphere size	Φ154mm
lighting source	360~780Nm combined LED light source, 400nm cut-off light source, 420nm cut-off light source
spectroscopy	Concave grating spectroscopy
Sensor	256 pixel dual array CMOS image sensor
Measurement Wavelength range	360~780nm
wavelength interval	10nm
Half bandwidth	5nm
Reflectance Measurement Range	0~200%
Measurement caliber	Reflection: φ 30mm/φ 25.4mm, φ 18mm/φ 15mm, φ 10mm/φ 8mm, φ 6mm/φ 4mm; Transmission: φ 25.4mm/φ 4mm
Light-containing method	Reflection SCI/SCE, Transmission SCI/SCE
Color space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
color difference formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00, DINΔE99,ΔE(Hunter)
Other chroma metrics	WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), homochromatic index Mt, colour fastness, color fastness, force, coverage
Other chroma metrics 2	APHA/Hazen/Pt-Co (platinum cobalt index), Gardner index, 8 degree gloss, 555 shade classification, haze (ASTM D1003), Saybolt (Seibert index), ASTM D1500 color code, Chinese Pharmacopoeia color code
Viewing Angle	CIE 2°/10°
observation light source	D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30
display mode	Light spectrum plots/data, sample chromatic values, color difference values/plots, chromaticity plots, Color simulation, pass/fail results, Color bias
Measurement time	Approximately 2.4s (approximately 5s for simultaneous SCI/SCE testing)
Sexual repeability	Spectroscopic reflectance: φ 25.4mm/SCI, standard deviation within 0.04%; chromatic value: φ 25.4mm/SCI, Delta E * ab within 0.01 (after instrument preheating correction, the average value of whiteboard 30 times at intervals of 5s measurement)
Sexual repeability 1	Spectral transmittance: φ 25.4mm/SCI, standard deviation within 0.05%; chromatic value: φ 25.4mm/SCI, Delta E * ab within 0.02 (after instrument preheating correction, the average value of whiteboard 30 times at intervals of 5s measurement)
stand-alone difference	ΔE*ab<0.12(SCI)
Dimensions	370300200mm
Weight	About 9.6kg
Power Supply	DC 24V, 3A power adapter Power Supply
Lifetime of lighting source	More than 3 million measurements in 5 years
Display	TFT true color 7inch, capacitive touch screen
Data Interface	USB, Bluetooth ® 5.0, print serial port
data storage	5000 master standards, 40,000 samples (SCI/SCE counts as one data)
operating language	Simplified Chinese, Traditional Chinese, English, (customizable German, French, Spanish)
Operating environment	0~40℃（32~104°F）
Storage environment	-20~50℃（-4~122°F）
optional accessories	Microprinters, instrument inverted test fixtures, culture dishes

3NH TS8296 Desktop Colorimeter Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Desktop high-precision color difference analyzer Used for measurement of film transmittance, reflectance, chroma, color gamut

[A]

Both of these can be satisfied.

[Q]

Want a color difference meter that can measure liquid Color, measure various Color liquids, plant flower extracts

[A]

YS-8296 is OK.
