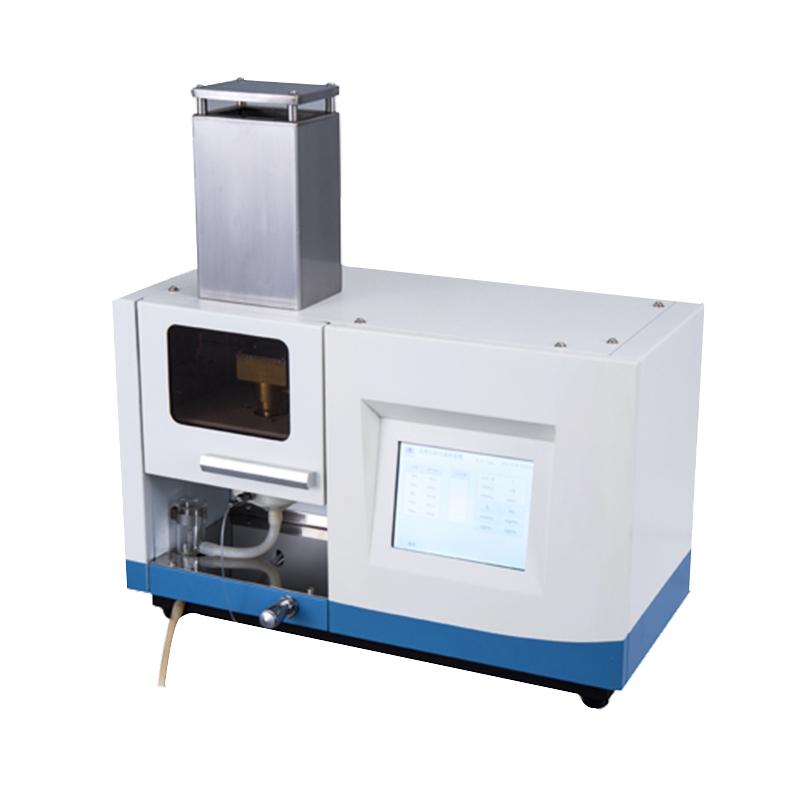

YouKe FSP6620 Flame photometer K/Na
Measure K/Na two elements, 5.6 inch true color wide Viewing Angle touch screen, with internal standard channel, automatic ignition, including flame monitoring, Linear dispersion fitting method calibration.
Yoke
FSP6620
-
HUXI Nano-900 UV-Visible, ultra-micro Spectrophotometer Light spectrum instrument
$ 7144.00 -
JINGHUA 756PC UV-Visible Spectrophotometer Wavelength range: 190nm~ 1100nm
$ 3149.00 -
JINGHUA 7600 Dual beam of light UV-Visible Spectrophotometer Wavelength Accuracy ： +/- 0.5nm
$ 4423.00 -
YUEFENG FP6428 Flame photometer Na/Ca
$ 1439.00 -
JINGHUA 3cm Colorimetric dish, width 3cm
$ 102.00
Introduction
FSP series multi-element flame Spectrophotometer adopts the multi-channel management structure of concave holographic grating to realize the simultaneous measurement of multiple elements. Compared with systems using optical filters, it has the advantages of accurate wavelength, narrow passband, and high sensitivity. At the same time, this instrument can choose to use zero-order light to collect changes in flame energy as an internal standard, making the measurement data more stable and reliable. This instrument is equipped with a 5.6-inch true color high-resolution wide-angle display and a same-resolution touch screen, which highly improves the instrument's technological content and user-friendly operation.
Features
1. Adopt concave holographic grating light splitting design;
2. Simultaneous direct reading measurement of five optional elements in any combination, only software selection is required, which is flexible and convenient;
3. Imported photovoltaic cells are used to receive elemental signals, and the performance is stable and reliable;
4. It is equipped with an internal standard channel, which is corrected with signals that do not contain measurement elements, and is measured synchronously with the elements;
5. The internal standard correction is designed to be optional and can be freely selected according to the situation;
6. Adopting a 5.6-inch color 640Ã480 display and supporting touch screen, human-computer integration is harmonious;
7. Use automatic ignition, include flame monitoring, and have flameout protection and alarm to ensure safety functions;
8. Using switching power supply, it is light weight, small in size, low in heat, has little impact from external power supply, and is energy-saving and environmentally friendly.
Yoke FSP6620 FSP series Flame photoMeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | K(mmol/L)：0.0~10.0、Na(mmol/L）：0.0~200.0 |
| spectroscopy | 1200 Concave Holographic gratings |
| Stability | The relative maximum change of the instrument indication within 15S is less than or equal to 2%. |
| Response time | <8S |
| Linear dispersion calibration | Linear dispersion fitting method |
| output interface | USB port can be connected to the printer and can communicate with the computer |
| Ambient Temperature | 0~35℃ |
Yoke FSP6620 FSP series Flame photoMeter Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
