3NH/3NH NH300 portable Colorimeter 8mm caliber with multi-function test kit

NH300 Introduction

This NH300 Colorimeter package includes a multi-functional test component, which can measure the color of samples such as liquids, paints, ketchup, beverages, and powders.

3NH NH300 Colorimeter is the same as NH310 Colorimeter in appearance, but NH300 Colorimeter is a single-caliber Colorimeter with a measurement aperture of 8mm, and the measurement repeatability is ≤0.07△E. Only D65 is available as a measurement light source. . The NH300 Colorimeter is basically the same as the NH310 Colorimeter in terms of Applications, but it is a common type of Colorimeter for the user's demand for measurement caliber, measurement repeatability accuracy, color space and light source.

NH300 Colorimeter is a mainstream brand Colorimeter launched by 3nh after integrating the advantages of dozens of traditional imported Colorimeters. It has passed tens of thousands of tests and applied many innovative technologies. Accurate, stable, beautiful and affordable!

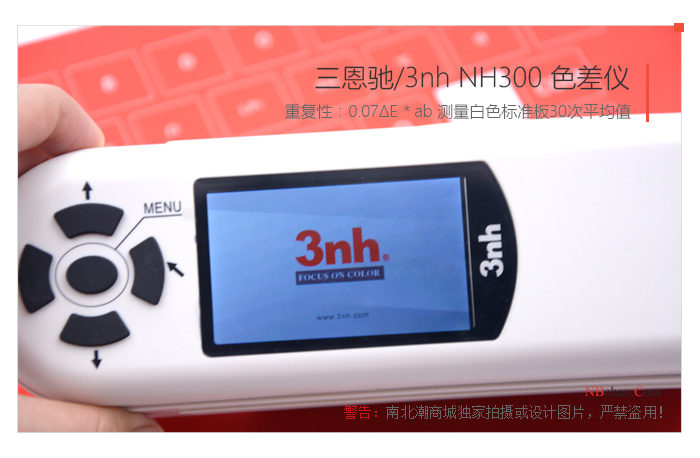

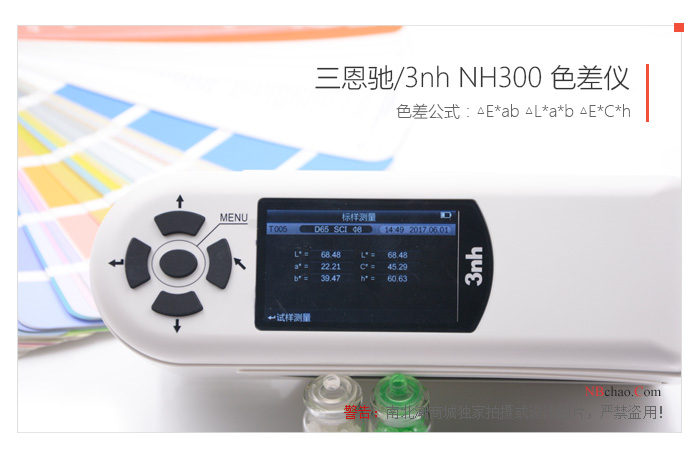

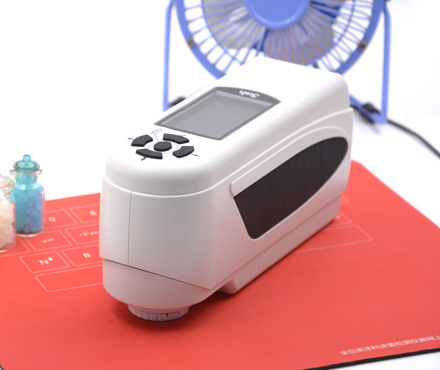

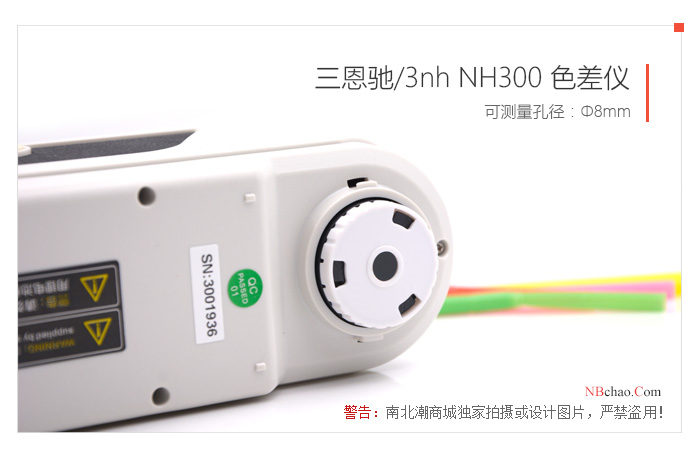

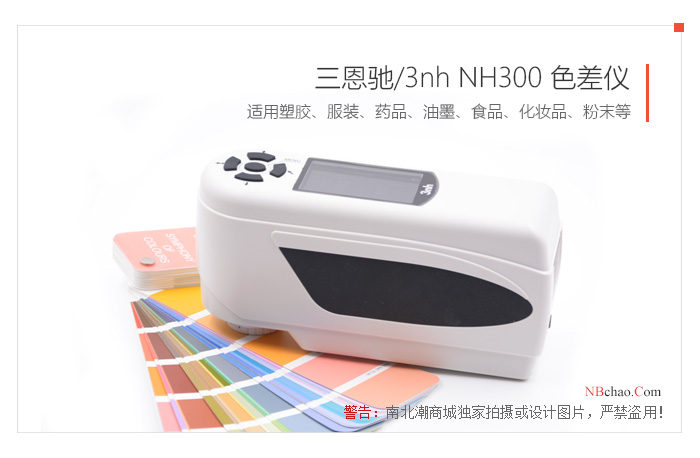

NH300 product real shot

Advantages of Portable Colorimeter NH300

Humanized design and ease of operation

1. Automatic black-and-white board calibration when starting up, easy to operate;

2. The structural design conforms to ergonomics;

3. A fool-like operation interface.

Stable Measurement Performance

1. The average fluctuation of △E is less than 0.07, and in fact more is between 0.03 and 0.06;

2. Portable and horizontal structure design, good stability of the body during measurement.

Convenient and fast positioning

1. The light positioning function is a fast and simple positioning function.

PC-side software to achieve more function expansion

1. PC-side software has intellectual property rights, and each NH300 Colorimeter is equipped with a one-to-one corresponding genuine software serial number and password protection;

2.  The 3nh/3nh NH300 Colorimeter can perform color difference analysis, color sample library management, color difference cumulative analysis, chromaticity index, simulated object color, etc.

Power Management Design

1. The 3nh/3nh NH300 Colorimeter uses a high-capacity lithium-ion battery;

2. It can be used repeatedly and automatically charged to save cost, and it can measure more than 3000 times with one charge, and can measure for a long time.

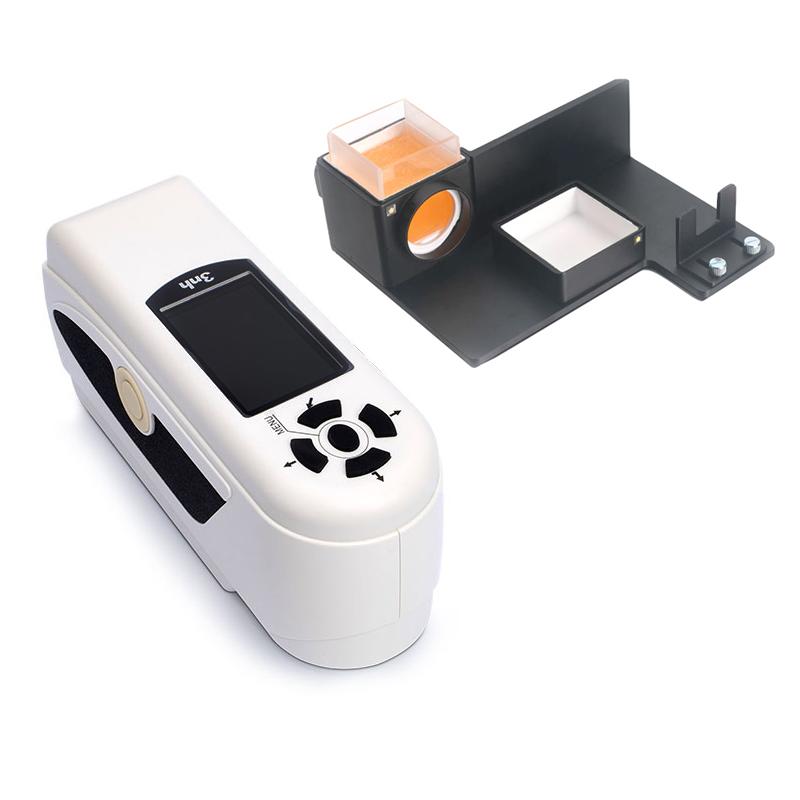

Multifunctional Test Kit

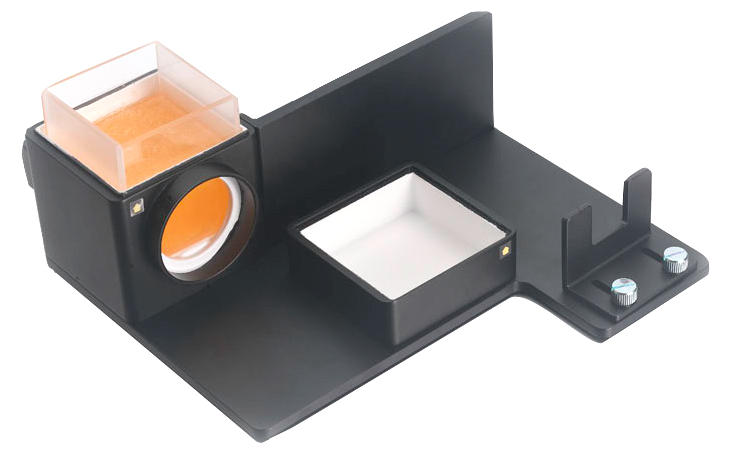

The multi-functional test component is equipped with a Colorimeter, which can measure the color difference of liquids, sauces (such as ketchup, paint), powders (such as coffee, powder coatings), etc.

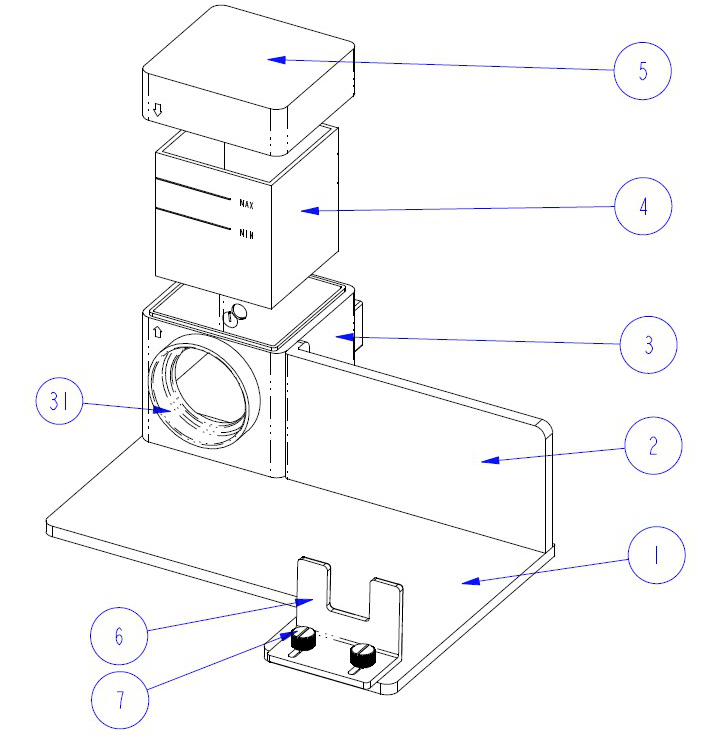

Multifunctional test component structure diagram

(1) Base (2) Base baffle (3) Square integrator (31) Measuring port of square integrator (4) Cuvette (5) Cover plate (6) Push plate (7) Screw.

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
