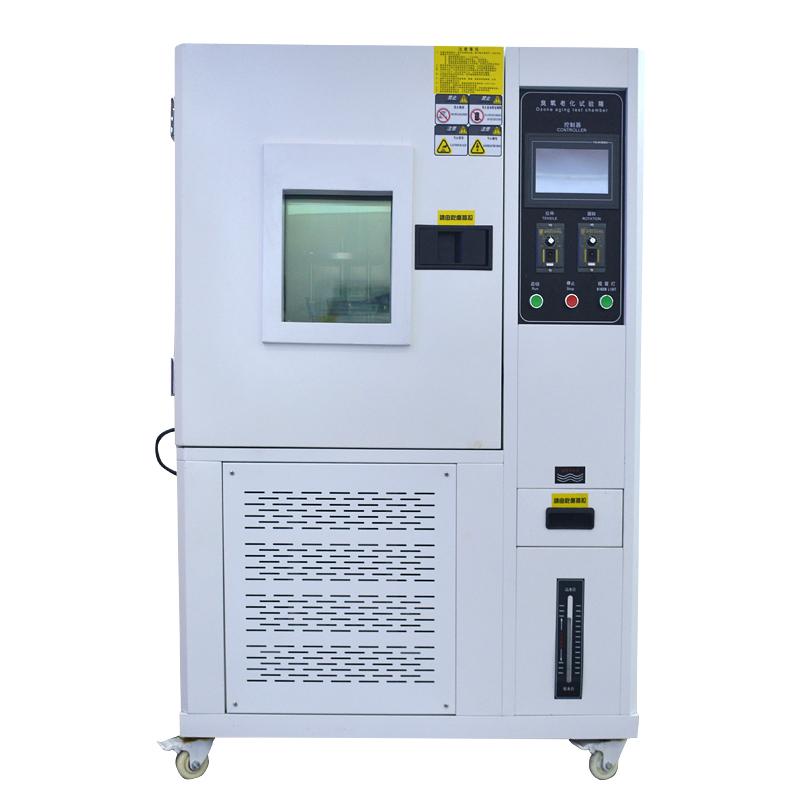

HuiTai NBC-O3-225 Ozone Conditioning Test Chamber

CHINA Ozone Conditioning Test Chamber NBC-O3-225 Volume 225L

Temperature control 0~70 ℃, ozone 50~500pphm, 225L volume, 360 degree swirl/spin sample, heating body heating, uniform temperature distribution.

Brand

SKU: NB040026

HuiTai

Model

NBC-O3-225

Get Quote

HuiTai

Information

Datasheet Video

What else did others buy

CHINA NBC-CY150L Ozone Aging Test Chamber 150L

$ 5683.00
HZAOC QL-150 Ozone Conditioning Test Chamber

$ 10673.00
ZKHS QL-500 Ozone Aging Test Chamber Ozone Aging Test Chamber

$ 13891.00
ZKHS QL-150 Ozone Aging Test Chamber Ozone Aging Test Chamber

$ 11574.00
HZAOC QL-500 Ozone Conditioning Test Chamber

$ 12647.00

Genuinegoods

HuiTai NBC-O3-225 Ozone Conditioning Test ChamberOverview
Specifications
Comments
FAQs

NBC-O3-225

Ozone Conditioning Test Chamber

Temperature control 0~70 ℃, ozone 50~500pphm, 225L volume, 360 degree swirl/spin sample, heating body heating, uniform temperature distribution.

Applications

The ozone aging chamber is suitable for the aging crack test of non-metallic materials and rubber products. Box structure The box is formed by CNC machine tools, with beautiful appearance, no reaction door handle, and easy operation.

The inner liner of the ozone aging box is made of imported high-grade stainless steel plate, and the outer liner of the box is sprayed with A3 steel plate, which increases the appearance texture and cleanliness.

The heating method is heat-generating style heating, with fast heating and uniform temperature distribution. Built-in 360-degree rotating sample holder.

Control System

The ozone aging box adopts imported ozone concentration control analyzer with standard signal output and sampling.

Silent discharge tube type ozone generator (with the characteristics of low noise and high purity).

The temperature controller adopts imported digital display touch buttons, PID microcomputer SSR temperature controller.

Standards

GB/T7762-2003, GB/T2951.21-2008

HuiTai NBC-O3-225 Ozone Conditioning Test ChamberSpecifications

LIST	VALUE
Ozone concentration range	50 ~ 500pphm
Temperature range	0℃~70℃
Humidity range	≥65%R.H
Interior size	500600750mm
Dimensions	130011502050mm
power	4.5kw
Temperature fluctuation	±0.5℃
Test device	Dynamic, static (optional)
Rack speed	360 degree swirl/spin sample holder (1 rpm)
gas flow rate	12~16mm/s
temperature Controller	Imported LED digital display P.I.D + S.S.R. microcomputer integrated Controller
time Controller	High precision hour, minute, second time Controller
Ozone concentration analysis	Imported concentration analysis regulator 4~ 20mA output, RS232 communication port
Ozone generator	Silent discharge tube
safety protection	Leakage, short circuit, over temperature, motor overheating, over current protection
Standards	GB/T7762-2003、GB/T2951.21-2008
Volume	225L

HuiTai NBC-O3-225 Ozone Conditioning Test Chamber Packing list

complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
