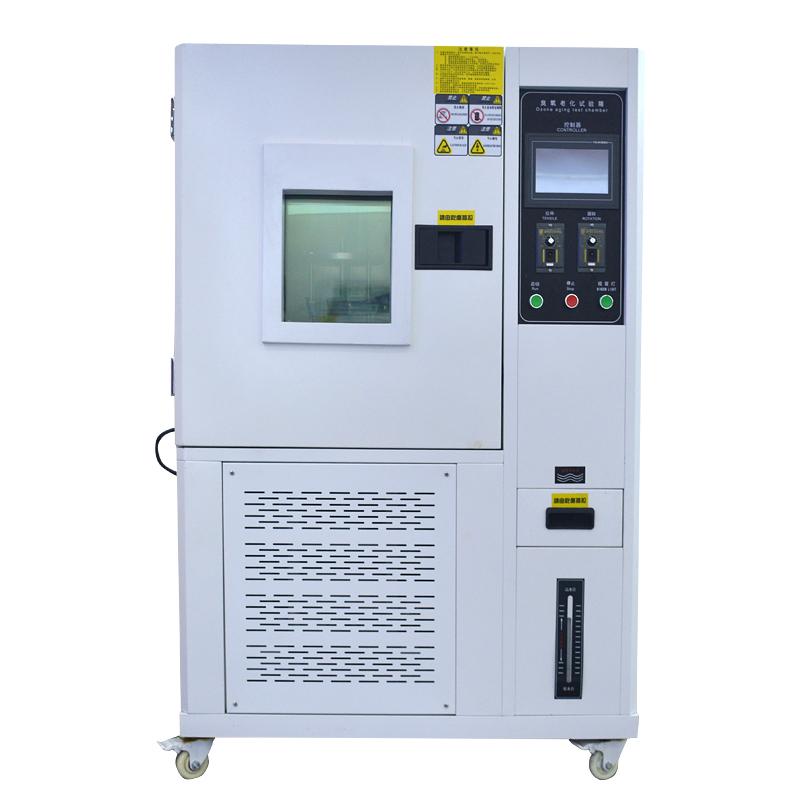

HuiTai NBC-O3-010 Ozone aging Test ChamberOverview
Specifications
Comments
FAQs

NBC-O3-010

Ozone aging Test Chamber

Temperature control 0~70 ℃, ozone 50~500pphm, 500L volume, 360 degree swirl/spin sample, heating body type heating, uniform temperature distribution.

Application

The ozone aging chamber is suitable for the aging crack test of non-metallic materials and rubber products. Cabinet structureThe box body is processed and formed by CNC machine tools, with beautiful and generous shape, no reaction door handle, and easy to operate.

The inner tank of the ozone aging box is made of imported stainless steel plate, and the outer tank of the box is sprayed with A3 steel plate, which increases the appearance texture and cleanliness.

The heating method is heating body heating, which heats up quickly and the temperature distribution is uniform. Built-in 360-degree rotating sample holder.

Control system

The ozone aging chamber adopts imported ozone concentration control analyzer, which has standard signal output and sampling.

Silent discharge tube type ozone generator (with the characteristics of low noise and high purity).

The temperature controller adopts imported digital display touch buttons, PID microcomputer SSR temperature controller.

Meets standards

GB/T7762-2003、GB/T2951.21-2008

HuiTai NBC-O3-010 Ozone aging Test ChamberSpecifications

LIST	VALUE
Ozone concentration range	50~500pphm
Temperature range	0℃~70℃
Humidity range	≥65%R.H
Interior size	100010001000mm
Dimension	185016002400mm
Power	11.5kw
Temperature Fluctuation	±0.5℃
test device	Dynamic, static (optional)
Rotation speed	360 degree swirl/spin sample holder (Rotation speed 1 rpm)
Flow velocity	12~16mm/s
temperature Controller	Imported LED digital display P.I.D + S.S.R. microcomputer integrated Controller
time Controller	High-precision hour, minute, second time Controller
Ozone concentration analysis	Imported concentration analysis regulator 4~ 20mA output, RS232 communication port
Ozone generator	Silent discharge tube
Safety protection	Leakage, short circuit, overtemperature, motor overheating, overcurrent protection
meet the standard	GB/T7762-2003、GB/T2951.21-2008
Volume	500L

HuiTai NBC-O3-010 Ozone aging Test Chamber Packing list

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
