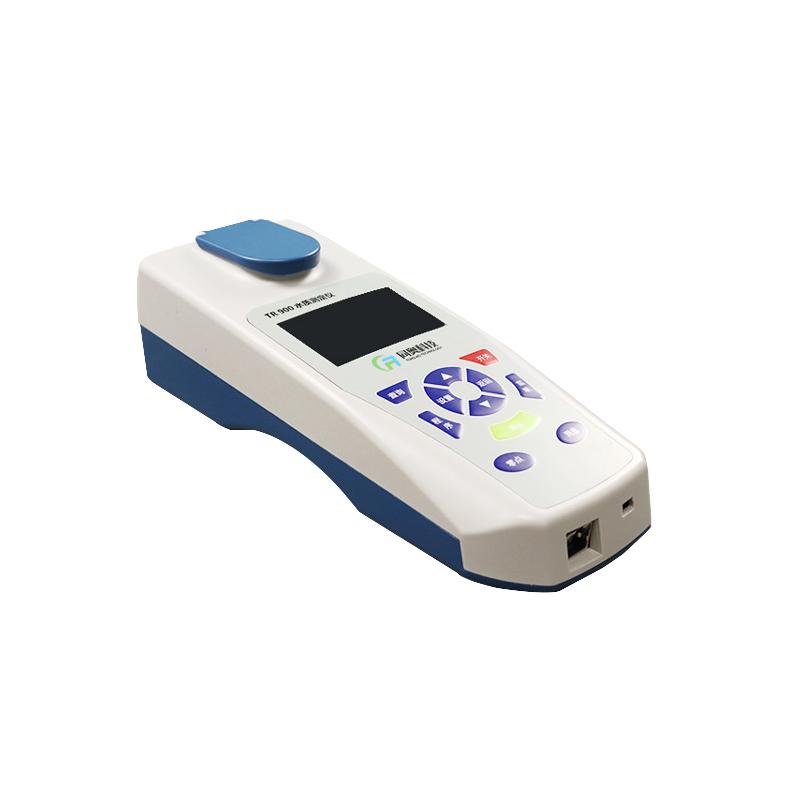

TONGAO TR-782H Water Quality Silica Tester
Detect the content of silica, the range is 0.1mg/L-5mg/L (segmented measurement), no digestion is required, the detection time is 5 to 10 minutes, and the digestion Colorimetric integrated detection is used, which conforms to the "Silicon Molybdenum Blue Colorimetry" standard.
TongAo
TR-782H
-
Bante901-UK Precision pH/Conductivity Meter
$ 571.00 -
TONGAO TR 6900N Benchtop Total Nitrogen STIP-scan
$ 2807.00 -
DDKSIC TEMP-01 Temperature electrode BNC (Q6) conventional aqueous solution
$ 101.00 -
JINGQI COD-5P COD measuring instrument, including digestion instrument, tape printing
$ 1305.00 -
Kodida CT-3061 TDS pen with built-in electrode TDS Range: 0~9999PPM
$ 114.00
Introduction
The TR-782H water quality silica Tester is developed and designed based on the trusted certification method - "Silicon Molybdenum Blue Colorimetry" standard. Through imported cold light sources and narrow-band interference technology, the absorbance of the sample at a specific light source wavelength is detected by spectrophotometry. After the microcomputer automatically processes the data, the sample silica concentration value is directly displayed, expressed in units of mg/L.
Supporting finished reagents makes the detection simpler, faster, more accurate and safer. The instrument is widely used in emergency monitoring, sewage treatment, chemical industry, pharmaceutical, hospital wastewater, food, printing and dyeing and other industries for its small design, fast detection, simple operation and low cost. Wastewater research and use.
Features
1. Wide detection range: Dozens of detection parameters can be expanded and customized according to needs to achieve better resource utilization.
2. High sensitivity: the minimum displayed value can reach 0.001mg/L.
3, light source advantages: the use of imported cold light source, better optical performance, no need to preheat, life up to 100,000 hours.
4. Operation intelligence: Intelligent operation program, guide users to easily complete the operation.
5. Diversified test methods: standard measurement or continuous measurement mode can be selected, and you can choose freely between rapidity and accuracy.
6. Low cost of use: low price of consumables and low consumption.
7. Operation safety: using digestion and colorimetric integrated tube, the measurement is simple, fast and safe.
8. Large-screen LCD display, data direct reading, simple and time-saving operation.
Emergency detection advantages
1. The instrument is compact in design, box-type configuration, light in weight and easy to carry.
2. Supporting special detection reagents to reduce user operation as much as possible.
3. Support wireless Bluetooth printing, and can print historical measurement data (optional Bluetooth printer).
4. It can store 4000 sets of historical measurement data.
5. The built-in large-capacity rechargeable lithium battery has a remaining power display, low power consumption, and long standby. The digestion instrument has three power supply modes of mobile power supply, vehicle-mounted power supply and 220V AC power supply for users to choose.
Online operation function
Support network port, USB interface, Bluetooth function, and can transmit data with PC or printer.
Software advantage
1. Support Chinese/English display (optional), friendly and intelligent design, easy to operate.
2. Built-in system programs and user programs, constant test items can be added to user programs for easy search.
3. It has data storage and power-off protection functions to prevent data loss and facilitate query of historical measurement data.
4. Built-in standard working procedures, no need for user calibration and calibration.
5. Users can also develop user programs and reagents by themselves to adapt to different water conditions on different occasions.
6. A help interface is built in to explain the routine precautions of the user's detection process.
7. It has a one-key restore factory settings function.
Example of operation interface
TongAo TR-782H Silica analyzerSpecifications
| LIST | VALUE |
|---|---|
| Measurement parameters | silica |
| Measurement range | 0~5Mg/L (measured in sections) |
| detection lower limit | 0.1mg/L |
| Digestion environment | No need to digest |
| Measurement time | 5~10min |
| measurement error | ≤±5％ |
| Repeatability | ≤±5% |
| Optical inspection Stability | ≤ +/- 0.001A/20min (100,000 hours life) |
| Colorimetric method | Digestion Colorimetric Tube |
| batch Volume | unlimited |
| Data storage | 4000 records, 96 Linear dispersion (support user-defined calibration) |
| Transmission method | USB data cable, LAN, Bluetooth transmission, etc. (optional) |
| printer | Portable thermal printer (optional) |
| Operating interface | Chinese/English (optional) |
| Power Supply | 5V rechargeable battery |
| Power | 0.3W |
| Host size | 240*95*80mm |
| Instrument Weight | Main unit: 0.5kg |
| Ambient Temperature | 5~40℃ |
| Relative Humidity | ≤ 85% non-condensing |
TongAo TR-782H Silica analyzer Packing list
Determination of host X1, silica reagent X1, digestion Colorimetric integrated tube X10, pipette gun X2, Colorimetric tube holder X1, Colorimetric tube cleaning cloth X1, host power adapter X1, USB data cable X1, simple operation flowchart X1, instruction manual X1, certificate of conformity/warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
