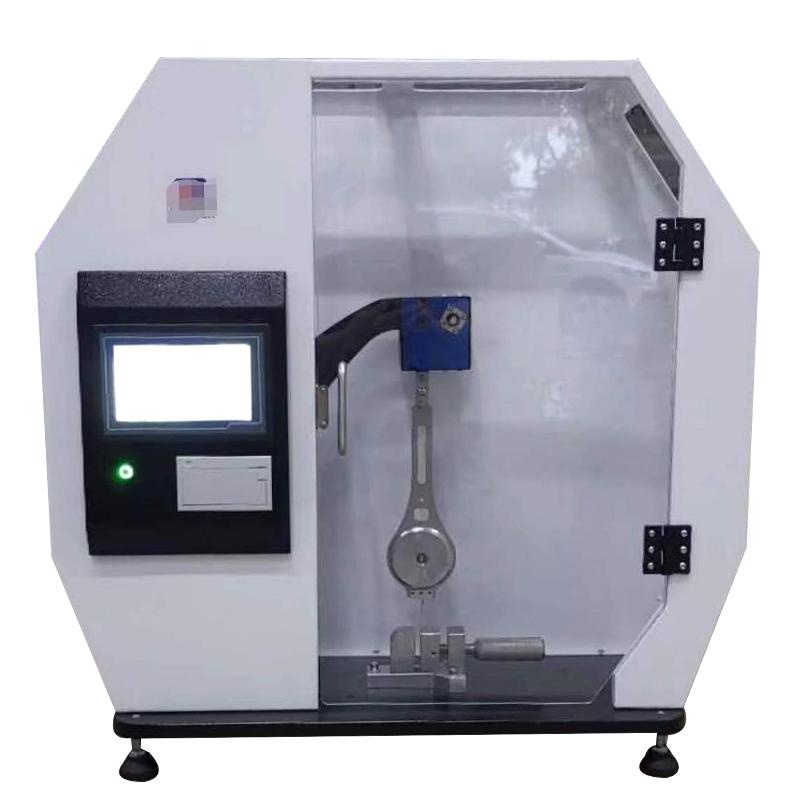

        ShuChang SC-JZL Simply Supported Beam Impact Tester

        SHUCHANG SC-JZL Simply Supported Beam Impact Tester Non-metallic Material Impact performance under dynamic load

        Impact speed 2.9m/s, simply supported beam 0.5, 1J, 2J, ≥ 4J, LCD screen, semi-automatic control, printable output.

        Brand
        SKU: NB042298
        China ShuChang
        Model
        Stock
        Loading…
        Price
        $ 1097.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          ShuChangLOGO

          ShuChang shopSE

          Information
          Datasheet RFQ Contract Manual
          What else did others buy
          Genuinegoods

          • ShuChang SC-JZL Simply Supported Beam Impact TesterOverview

          • Specifications
          • Comments
          • FAQs
          SC-JZL
          Simply Supported Beam Impact Tester
          • SHUCHANG SC-JZL Simply Supported Beam Impact Tester Non-metallic Material Impact performance under dynamic load
          • SHUCHANG SC-JZL Simply Supported Beam Impact Tester Non-metallic Material Impact performance under dynamic load Figure 1
          • SHUCHANG SC-JZL Simply Supported Beam Impact Tester Non-metallic Material Impact performance under dynamic load Figure 2
          Impact speed 2.9m/s, simply supported beam 0.5, 1J, 2J, ≥ 4J, LCD screen, semi-automatic control, printable output.

          product description

          Charpy impact testing machine is an instrument for testing the impact resistance of non-metallic materials such as hard plastics, nylon, hard rubber, and electrical insulating materials under dynamic loads. It is a testing instrument required by non-metallic material manufacturers and quality inspection departments. , It is also an indispensable testing instrument for scientific research units to conduct research on new materials.

          Charpy impact testing machine can print out the test results and other functions.

          main feature

          • This machine adopts semi-automatic control, easy to operate and high working efficiency.

          • The special LCD equipped with this machine can display instant information.

          • Printable output.　

          Implementation standards

          ISO180-2000 "Plastics - Determination of Izod Impact Strength of Hard Materials"

          GB/T1843—2008 "Rigid Plastic Izod Impact Test Method"

          JB/T8761—1998 "Plastic Izod Impact Testing Machine"

          ASTM D256-2010 "Test method for determining the impact strength of plastic IZOD pendulum"


          VS

          ShuChang SC-JZL Simply Supported Beam Impact TesterSpecifications

          LIST VALUE
          Impact velocity 2.9M/s or 3.8m/s
          The distance from the center of the pendulum axis to the center of the specimen 221mm、380mm
          blade angle 30°
          Blade fillet radius R=2mm±0.5m
          Bearing fillet radius R=1m
          Support front angle without
          Support back angle without
          blade rake angle 5°
          blade back angle 10°
          bearing span without
          Impact energy Simply supported beam 5J, 25J or maximum impact energy specified by the user
          Pendulum elevation angle 150°
          Power Supply AC 220V 50Hz
          Dimensions 360×240×680mm
          net Weight About 100kg
          Sample type and size Type 1 sample: 80 × 10 × 4mm3; Type 2 sample: 63.5 × 12.7 × 6.4mm3; Type 3 sample: 63.5 × 12.7 × 3.2mm3
          simply supported beam 0.5、1J、2J、≥4J
          maximum allowable friction loss 4.0J、2.0J、1.0J、0.5J
          Pendulum moment 1.47372N·m、2.9474N·m
          Room temperature control range 10℃~35℃
          Relative Humidity ≤80%

          ShuChang SC-JZL Simply Supported Beam Impact Tester Packing list

          host X1, manual X1, certificate X1, warranty card X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

          FAQ

          [Q]
          Is the price listed on the website the final cost for overseas purchases?
          [A]
          No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
          [Q]
          What is the specific process for purchasing the product?
          [A]
          First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
          [Q]
          What should I do if the instrument I purchase needs repair?
          [A]
          After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
